Installation -
Cabling
Two Options
Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly.
A non-PoE switch will require an adaptor for power transmission.
1.
The Camera is PoE-compliant, allowing transmission of
power and data via a single Ethernet cable.
PoE eliminates the need for the different cables used to
power, record, or control the camera. Follow the illustration
below to connect the camera to a PoE-enabled switch using
an Ethernet cable.
2.
If a PoE-enabled switch is not used, use a power adaptor
for power transmission and non-PoE switch for data
transmission.

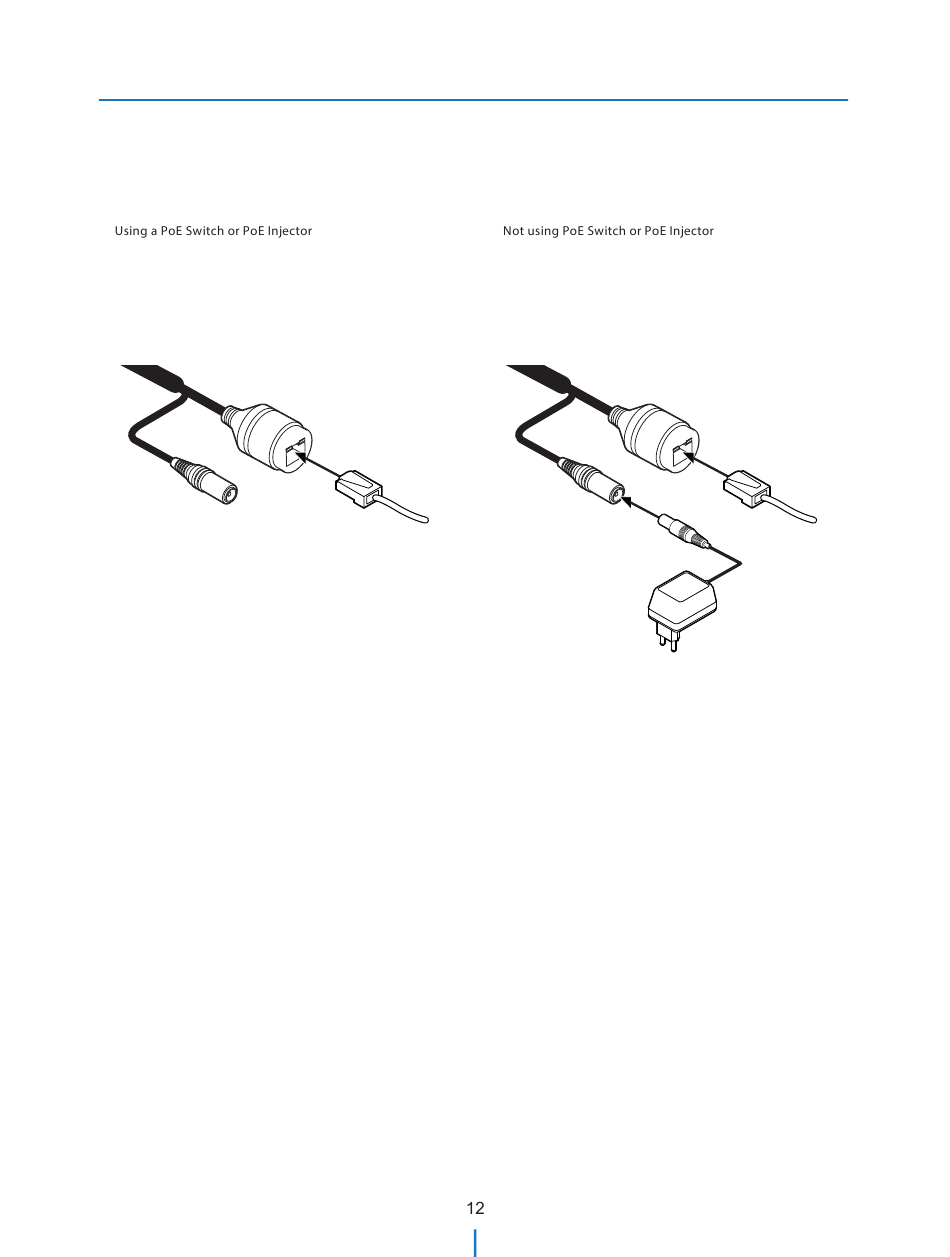

Follow the illustrations below to connect the camera
without a PoE-enabled Switch.
Ethernet cable Ethernet cable
Power
