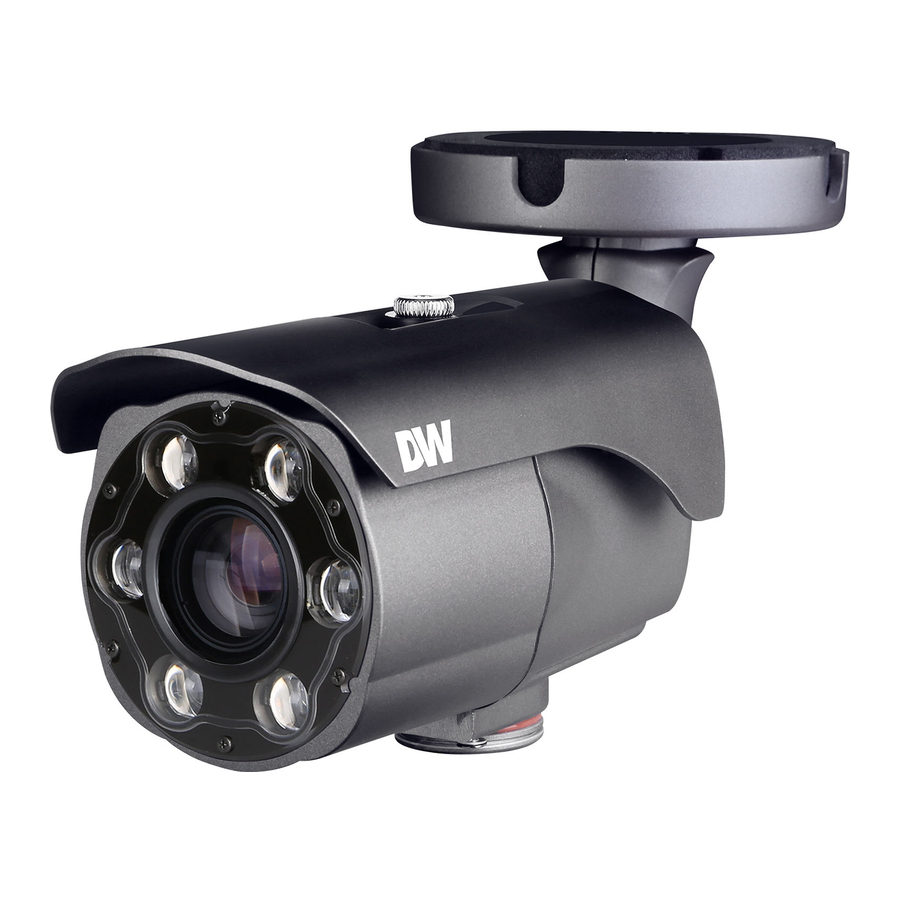

Digital Watchdog MEGApix CaaS DWC-MB44LPRC6/1/2 Quick Start Guide

Also See for MEGApix CaaS DWC-MB44LPRC6:

Quick start manual (2 pages)

User manual (80 pages)

User manual (78 pages)

Table of Contents

Contents

1 WHAT'S IN THE BOX
2 PREPARING TO MOUNT THE CAMERA
3 CABLING THE CAMERA TO EXTERNAL DEVICES
4 INSTALLING THE CAMERA
- 4.1 LPR INSTALLATION GUIDELINES
5 CABLING
6 DW IP FINDER
7 WEB VIEWER
8 SETUP DW SPECTRUM CAAS FOR RECORDING
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

Digital Watchdog MEGApix CaaS DWC-MB44LPRC6/1/2 Quick Start Guide

WHAT'S IN THE BOX

Default login information
Username: admin	Password: admin

NOTE: Download all your support materials and tools in one place.

Go to: http://www.digital-watchdog.com/resources
Search your product by entering the part number in the 'Search by Product' search bar. Results for applicable part numbers will populate automatically based on the part number you enter.
Click 'Search'. All supported materials, including manuals and quick start guide (QSGs) will appear in the results.

warning Attention: This document is intended to serve as a quick reference for the initial setup. It is recommended that the user read the entire instruction manual for complete and proper installation and usage.

PREPARING TO MOUNT THE CAMERA

The mounting surface must bear five times the weight of your camera.
Do not let the cables get caught in improper places or the electric line cover to be damaged. This may cause a breakdown or fire.
These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
This product is intended to be supplied by a UL Listed Power Supply Unit marked "Class 2" or "LPS" or "PS2" and rated 12 Vdc, 920 mA min.
The wired LAN hub providing power over the Ethernet (PoE) in accordance with IEEE 802-3af shall be a UL Listed device with the output evaluated as a Limited Power Source as defined in UL60950-1 or PS2 as defined in UL62368-1.
Unit is intended for installation in a Network Environment 0 as defined in IEC TR 62102. As such, associated Ethernet wiring shall be limited to inside the building.
Using the mounting template sheet or the camera itself, mark and drill the necessary holes in the wall or ceiling.

CABLING THE CAMERA TO EXTERNAL DEVICES

Pass the wires through and make all necessary connections.

NETWORK CONNECTIONS – Using a PoE Switch or PoE Injector, connect the camera using an Ethernet cable for both data and power.
NETWORK CONNECTIONS – Not using PoE Switch or PoE Injector, connect the camera to the switch using an Ethernet cable for data transmission and use a power adapter to power the camera.

Power requirements	Power consumption
DC12V, PoE (IEEE 802.3af class 3 ) (Adapter not Included)	DC12V Max 11W PoE Max 12.9W

INSTALLING THE CAMERA

INSTALLING THE CAMERA - Step 1
INSTALLING THE CAMERA - Step 2

Once all cables are connected, secure the camera to the mounting surface using the included screws.
The waterproof cap set comes with two rubber rings with different diameters. The black rubber ring has an internal diameter of ø0.15" (ø4mm). The white rubber ring has an internal diameter of ø0.19" (ø5mm). When using the waterproof cap, use the rubber ring best suited for your network cable's diameter.

Pass the LAN cable through the waterproof cap, gasket and the rubber ring.
Connect the LAN cable to the camera's network port .
will be affixed to with a ¼ turn counter-clockwise.
Thread and twist tightly to .

NOTE: To ensure moisture seal, make sure the o-ring is in place between a and b. In extreme environments use of an outdoor rated sealer is recommended.

NOTE: Cables with ø4.5mm to ø5.5mm thickness should use the black rubber ring. Cables over ø5.5mm in thickness should use the white rubber ring.

Loosen the pan and tilt screws at the base of the camera's bracket to adjust the camera's view and position.
Resetting the camera: To reset the camera, use the tip of a paper clip or a pencil and press the reset button. Pressing the button for five (5) seconds will initiate a camera-wide reset of all the settings, including network settings.

LPR INSTALLATION GUIDELINES

The LPR camera should be mounted at a height between 3~8 ft., and a distance no greater than 80 ft. from the target area. Exceeding the distance recommendations may result in a poor quality image of moving license plates.
Ensure that the camera angle is no more than 20° degrees (horizontally) 30° degrees (vertically) from the target area.
It is recommended to position a license plate or vehicle to reflect the IR light of the camera while adjusting the camera's focus of the target area.
After mounting the camera, you can press the Zoom Lens Button (located on the underside of the camera) to sequentially zoom and auto-focus the camera. Alternatively, the camera's web GUI or management software can be utilized as well. The longer the Zoom Lens button (T-W jog button) is pressed down, the further the lens module will zoom.
Please note that the cameras ship with focus in Manual mode. To change the camera's focus to Auto, enter the camera's web GUI and use the +/- zoom buttons on the left of the camera image.

CABLING

Use the diagram below to properly connect power, network, audio, alarm and sensors to the camera.

CABLING

DW® IP FINDER™

Use the DW IP Finder software to scan the network and detect all MEGApix® cameras, set the camera's network settings or access the camera's web client. DW® IP FINDER™

Network Setup
Network Setup - Step 1
Network Setup - Step 2

To install the DW IP Finder, go to: http://www.digital-watchdog.com
Enter "DW IP Finder" on the search box at the top of the page.
Go to the "Software" tab on the DW IP Finder page to download the installation file.
Follow the installation to install the DW IP Finder. Open the DW IP Finder and click 'Scan Devices'. It will scan the selected network for all supported devices and list the results in the table. During the scan, the DW® logo will turn gray.
When connecting to the camera for the first time, a password must be set. To set up a password for your camera:
1. Check the box next to the camera in the IP Finder's search results. You can select multiple cameras.
2. Click "Bulk Password Assign" on the left.
3. Enter admin/admin for the current username and password. Enter a new username and password to the right. Passwords must have a minimum of 8 characters with at least 4 combinations of uppercase letters, lowercase letters, numbers and special characters. Passwords cannot contain the user ID.
4. Click "change" to apply all changes.
Select a camera from the list by double-clicking on the camera's image or clicking on the 'Click' button under the IP Conf. column. The pop-up window will show the camera's current network settings, allowing admin users to adjust the settings as needed.
To access the camera's web page, click on the 'View Camera Website' from the IP Config window.
To save changes made to the camera's setting, enter the username and password of the camera's admin account and click 'Apply'.

Select DHCP to allow the camera to receive its IP address automatically from the DHCP server.
Select "Static" to manually enter the camera's IP address, (Sub)Netmask, Gateway and DNS information.
The camera's IP must be set to static if connecting to Spectrum® IPVMS. Contact your network administrator for more information.

Default TCP/IP information: DHCP.

Port forwarding must be set in your network's router to access the camera from an external network.

WEB VIEWER

Once the camera's network settings have been setup properly, you can access the camera's web viewer using the DW® IP Finder™.

To open the camera's web viewer:

Find the camera using the DW® IP Finder™.
Double-click on the camera's view in the results table.
Press the 'View Camera Website'. The camera's web viewer will open up in your default web browser.
Enter the camera's username and password (default are admin / admin).
If you are accessing the camera for the first time, install the VLC player for web files in order to view video from the camera.

* NOTE: Some menu options may not be available based on the camera model. See the full manual for more information.

NOTE: Please see the full product manual for web viewer setup, functions and camera settings options.
