Replacing the LCD Module

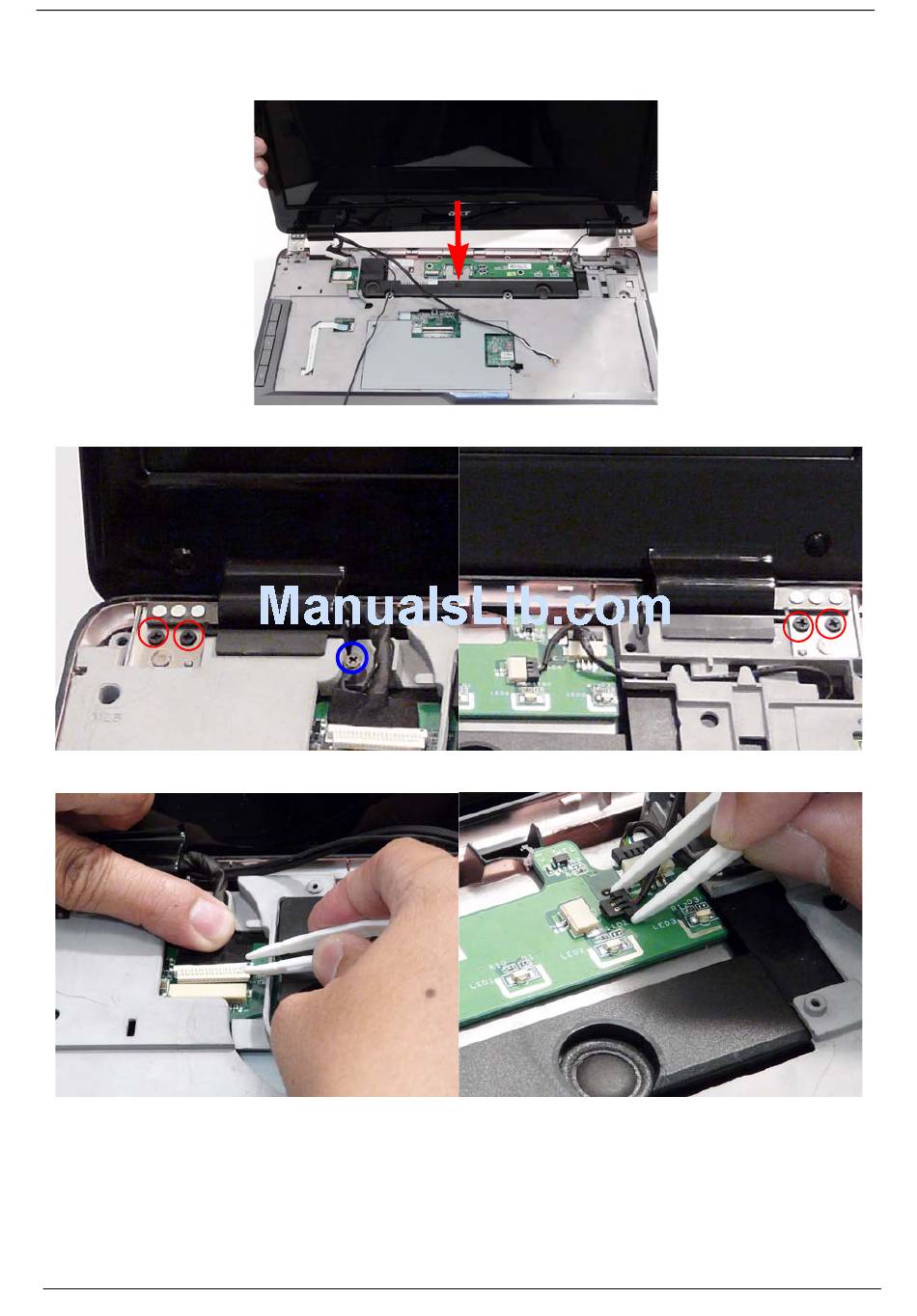

1. Replace the LCD Module on the Lower Case as shown.

2. Replace the single ground screw and four securing screws (two each side) connecting the LCD module.

3. Replace the LCD Interface and back light cables as shown.

116

Chapter 3
