Summary of Contents for Acer TravelMate 720

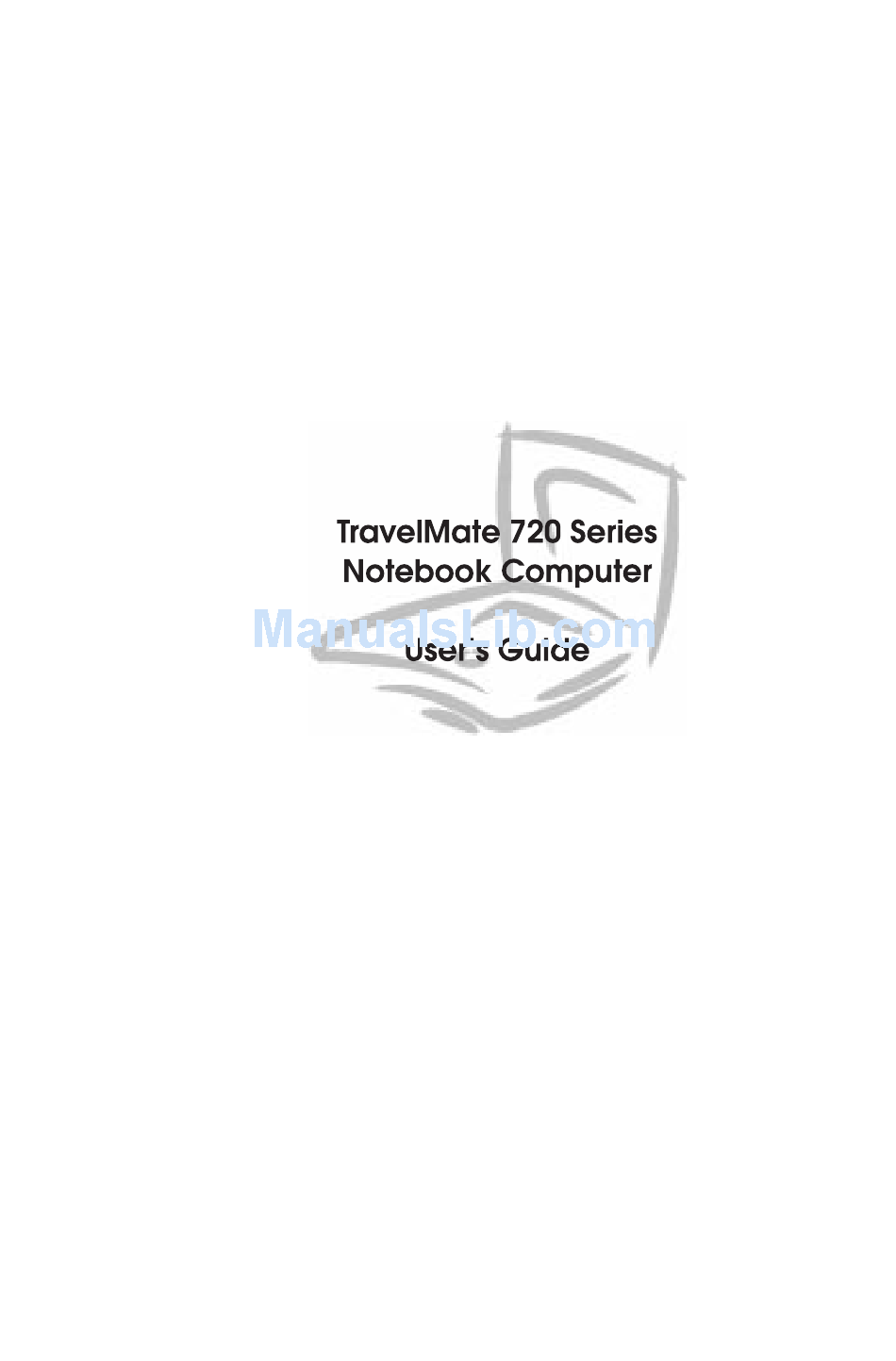

- Page 2 Acer Incorporated. TravelMate Notebook Computer Model________Serial No.__________________Purchase Date____________ TravelMate is a trademark and a product of Acer Inc., developed with Texas Instruments Inc. All other trademarks and registered trademarks are the property of their respective companies. Microsoft, MS-DOS, and Windows are...
-
Page 3: Table Of Contents
Notices......... v Preface . - Page 4 Table of Contents Traveling Internationally with the Computer ..69 Chapter 5 Software ......71 System Software .
-
Page 5: Fcc Notice
FCC Notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 6: Fcc Modem Notice
Notices Use Conditions This part complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 7: Important Safety Instructions
Important Safety Instructions 1. Read these instructions carefully. Save these instructions for future reference. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. - Page 8 Notices a. When the power cord or plug is damaged or frayed b. If liquid has been spilled into the product c. If the product has been exposed to rain or water d. If the product does not operate normally when the operating instructions are followed.
-
Page 9: Year 2000 Compliance Statement
Compliant” logo. This model has been tested both by Acer’s internal test labs and NSTL using NSTL’s YMARK2000 certification test. These tests certify that this model will successfully make the year 2000 transition. For more details, check the Acer Year 2000 Resource Center at http://www.acer.com/year2000... -
Page 10: Laser Compliance Statement
Notices Laser Compliance Statement The CD-ROM drive in this computer is a laser product. The CD- ROM drive’s classification label is located on the drive. CLASS 1 LASER PRODUCT CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. APPAREIL A LASER DE CLASSE 1 PRODUIT LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D’OUVERTURE. -
Page 11: Lithium Battery Statement
Notices Lithium Battery Statement The computer’s real-time clock is powered by a coin-type lithium battery. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. -
Page 13: Preface
Preface This manual describes features of the TravelMate 720 series notebook computers. This series of computers incorporate such features as CardBus, PCI-based 16-bit 3D audio, Fast Infrared, internal pointing device, Universal Serial Bus, Accelerated Graphics Port and all-in-one media storage. -
Page 14: Connecting The Computer
Preface Connecting the Computer Connecting the computer is as easy as 1-2-3. 1. Slide out the battery compartment cover and insert the battery pack into the battery compartment. Then slide the battery compartment cover in place. Note: When using a battery pack for the first time, fully recharge the battery, then disconnect the adapter to use up the battery before recharging again. - Page 15 3. Slide the display cover latch to the left to open the display. Slide the power switch towards the rear of the computer then release it to turn on the power. The POST (Power On Self-Test) routine executes and Windows begins loading. Note: To turn off the power, press the power switch for more than four seconds.
-
Page 16: Accessing Online Help
The online help is easy to navigate with hypertext and hypergraphics. Clear illustrations help describe notebook operation as well. Getting Online If you are connected to the Internet and have World Wide Web access, visit our home page (http://www.acer.com/) and get the latest information about our products. -
Page 17: Support Information
Place your proof-of-purchase in the flap located inside the front cover of the ITW passport. If the country you are traveling in does not have an Acer- authorized ITW service site, you can still get in contact with our offices worldwide. -
Page 18: Taking Care Of Your Ac Adapter
Preface Care and Maintenance Taking Care of Your Computer Your computer will serve you well if you take care of it. Do not expose the computer to direct sunlight. Do not place near sources of heat, such as a radiator. Do not expose the computer to temperatures below 0ºC (32ºF) or above 50ºC (122ºF). -
Page 19: Taking Care Of Your Battery Pack
The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating. Taking Care of your Battery Pack Here are some ways to take care of your battery pack: Use only batteries of the same kind as replacements. - Page 21 Getting Familiar with your Computer This computer combines high-performance, versatility, power management features and multimedia capabilities with a unique style and ergonomic design. Work with unmatched productivity and reliability with your new power computing partner. This chapter gives an in-depth "tour" of the computer’s many features.
- Page 22 Securing your Computer ..... 29 Security Notch ......29 Passwords .
-
Page 23: Chapter 1 Getting Familiar With Your Computer
Features This computer was designed with the user in mind. Here are just a few of its many features: Performance Intel Pentium® II processor 64-bit main memory and on-die Large and vibrant Thin-Film-Transistor (TFT) Extended Graphics Array (XGA) Liquid Crystal Display (LCD) 256-bit PCI/AGP graphics acceleration with 2.5MB graphics memory Internal removable CD-ROM drive (AcerMedia Bay) - Page 24 Features Fast infrared wireless communication Universal Serial Bus (USB) port Human-centric Design and Ergonomics Sleek, smooth and stylish design Full-sized keyboard Wide and curved palm rest Ergonomically-centered touchpad pointing device Expansion CardBus PC Card (formerly PCMCIA) slots (two type II/I or one type III) with Zoomed Video (ZV) support DockMate V mini docking station option for one-step connect/disconnect from peripherals...
-
Page 25: Display
Display The large graphics display offers excellent viewing, display quality and desktop performance graphics. The computer supports a Thin-Film Transistor (TFT) liquid crystal display (LCD) displaying 16-bit hi-color at 1024x768 Extended Graphics Array (XGA) resolution. Video Performance PCI local bus video with industry-leading 256-bit graphics acceleration and high-speed 2.5MB Synchonous Graphics Random Access Memory (SGRAM) boost video performance. - Page 26 Display Power Management The power management system incorporates an "automatic LCD dim" feature that automatically decides the best settings for your display and at the same time conserves power. See “Power Management” on page 39 for more information on power management features. Opening and Closing the Display To open the display, slide the display cover latch to the left and lift up the cover.
-
Page 27: Indicators
Indicators The computer has six easy-to-read status indicators (LEDs) under the display screen. The Power and Standby indicators are visible even when you close the display cover so you can see the status of the computer while the cover is closed. Icon Function Power... - Page 28 Indicators Icon Function Caps Lock Num Lock Description Lights when Caps Lock is activated Lights when Numeric Lock is activated User’s Guide...
-
Page 29: Keyboard
Keyboard The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys and twelve function keys. Special Keys Lock Keys The keyboard has three lock keys which you can toggle on and off. Lock Key Caps Lock Num Lock (Fn-F11) Scroll Lock... -
Page 30: Embedded Numeric Keypad
Keyboard Embedded Numeric Keypad The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys. Desired Access Number keys on embedded keypad... -
Page 31: Windows Keys
Windows Keys The keyboard has two keys that perform Windows-specific functions. Windows logo key Application key (Fn-Application key) Chapter 1 Getting Familiar with your Computer Description Start button. Combinations with this key performs special functions. Below are a few examples: á... -
Page 32: Hot Keys
Keyboard Hot Keys The computer employs hot keys or key combinations to access most of the computer’s controls like screen contrast and brightness, volume output and the BIOS setup utility. To activate hot keys, press and hold the Fn key before pressing the other key in the hot key combination. -
Page 33: Chapter 1 Getting Familiar With Your Computer
Hot Key Fn-F4 Fn-F5 Fn-F6 Fn-F7 Fn-F8 Alt Gr-5 Chapter 1 Getting Familiar with your Computer Icon Function Hibernation Display toggle Screen blank Touchpad on/off Speaker on/ Brightness up Brightness down Euro Keyboard Description Puts the computer in Hibernation mode (if PHDISK, the hibernation utility, is installed, valid and enabled). -
Page 34: Keyboard Ergonomics
Keyboard Note: If you want to use an external PS/2 mouse, first enable the touchpad, connect the external PS/2 mouse, then disable the touchpad if necessary. Keyboard Ergonomics Located below the keyboard, the wide and curved palm rest is ergonomically designed to provide you with a very comfortable place to rest your hands while you type. -
Page 35: Touchpad
Touchpad The built-in touchpad is a PS/2-compatible pointing device that senses movement on its surface. This means the cursor responds as you move your finger on the surface of the touchpad. The central location on the palm rest provides optimum comfort and support. Note: When using an external mouse, you can press Fn- F7 to disable the internal touchpad. - Page 36 Touchpad Function Execution Selection Drag Access context menu Note: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean. The touchpad is sensitive to finger movements. Hence, the lighter the touch, the better the response. Tapping too hard will not increase the touchpad’s responsiveness.
-
Page 37: Storage
Storage This computer supplies you with all-in-one media storage: High-capacity Enhanced-IDE hard disk Standard ultra-slim internal 3.5-inch floppy drive High-speed CD-ROM drive (swaps with other AcerMedia Bay modules) Hard Disk The removable hard disk module can be upgraded when you need more storage space. See “Hard Disk Upgrade” on page 61. - Page 38 Storage Ejecting the CD-ROM Tray To eject the CD-ROM drive tray when the computer is turned on, press the CD-ROM eject button. Note: When power is off, you can eject the CD-ROM drive tray using the emergency eject hole. See page 100. Playing DVD-ROM Some models come standard with a DVD-ROM drive play DVD movies on your computer, follow these steps:...
- Page 39 Region Code Swapping Modules The flexible AcerMedia Bay allows you to swap the standard CD-ROM drive with other high-capacity media modules such as a DVD-ROM drive or a second hard disk. Follow these steps: 1. Shutdown the computer. 2. Locate the AcerMedia Bay release latch; then slide the latch towards the bay and hold.
-
Page 40: Ports
Ports Ports Ports allow you to connect peripheral devices to your computer as you would with a desktop PC. Note: See Chapter 3 on how to connect external devices to the computer. Left Ports Icon Port Connects to... S-video Television with S-video input jack output jack USB port USB device (e.g., USB mouse) -
Page 41: S-Video
S-Video You can connect a television set with a s-video input jack to the computer, useful for large audience presentations and entertainment. Universal Serial Bus The Universal Serial Bus (USB) port is a high-speed serial bus which allows you to connect and daisy-chain USB peripherals without taking up precious system resources. -
Page 42: Rear Ports
Ports Rear Ports Icon Port Connects to... Speaker-out Speakers or headphones jack Line-in/ Audio line-in device with a 3.5mm Microphone- minijack (e.g., condenser in jack microphone, audio CD player, stereo walkman). Serial port Serial device (e.g., serial mouse) Modem jack Phone line Parallel port Parallel device (e.g., parallel... -
Page 43: Fax/Data Modem
Fax/Data Modem Some models have a built-in V.90 56Kbps PCI fax/data modem. Caution: This modem port is not compatible with digital phone lines. Plugging this modem into a digital phone line will damage the modem. To use the fax/data modem port, connect a phone cable from the modem port to a telephone jack. -
Page 44: Right Ports
Ports Right Ports Icon PC Card Slots There are two type II/I or one type III CardBus PC Card slots found on the right panel of the computer. These slots accept credit-card-sized cards that enhance the usability and expandability of the computer. PC Cards (formerly PCMCIA) are add-on cards for portable computers, giving you expansion possibilities long afforded by desktop PCs. - Page 45 Note: Refer to your card’s manual for details on how to install and use the card and its functions. Inserting a Card Insert the card into the desired slot and make the proper connections (e.g., network cable), if necessary. See your card manual for details.
-
Page 46: Bottom Port
Ports Then press the slot eject button to eject the card. Bottom Port Docking Connector Icon Port Connects to... Mini docking DockMate V mini docking connector station User’s Guide... -
Page 47: Audio
Audio The standard computer configuration includes 16-bit high- fidelity stereo audio with further enhancements that include 3-D sound for true audio immersion. Dual speakers located on each side of the display hinge direct sound towards to further enhance sound output. A sensitive microphone is located above the display screen. - Page 48 Audio Enabling the 3D Enhanced Function You can enable or disable the 3D enhanced audio function by doing the following: 1. Double-click on the volume control (speaker) icon displayed on the taskbar. Note: If the speaker icon is not displayed on the taskbar, enable this feature (show volume control on the taskbar) via the Multimedia icon in the Control Panel.
-
Page 49: Securing Your Computer
Securing your Computer Security features include hardware and software locks — a security notch and a two-level password scheme. Security Notch A security notch located on the rear panel of the computer lets you connect a Kensington-compatible key-based computer security lock. Wrap a computer security lock cable around an immovable object such as a table or locked drawer handle. - Page 50 Securing your Computer Important: Do not forget your password! If you forget your password, you need to contact your dealer. Note: You must set the supervisor password before you can set the user password. Setting a Password You can set the password using: Notebook Manager -- go to page 77.
-
Page 51: Chapter 2 Operating On Battery Power
Operating on Battery Power The computer operates on AC or battery power. This chapter contains the information you need to know to operate the computer on battery power. It also includes information on how your computer manages and saves power. Contents Battery Pack . -
Page 52: Battery Pack
Battery Pack Battery Pack The computer uses a battery pack that gives you long use between charges. Battery Pack Characteristics The battery pack has the following characteristics: Employs Current Battery Technology Standards The computer uses a Lithium-Ion battery pack which does not have the memory effect problem of Nickel Cadmium (NiCd) batteries. -
Page 53: Installing And Removing The Battery Pack
2. Connect the AC adapter to a power source and to the computer and fully recharge the battery. Note: When the computer power is off, the battery pack recharges faster. You may choose to shutdown your computer to do so. 3. -
Page 54: Charging The Battery
Battery Pack 2. Insert the battery pack into the battery bay. 3. Replace the battery bay cover. To remove the battery pack, remove the battery bay cover; then pull out the battery pack using the pull loop. Charging the Battery To charge the battery, place the battery pack inside the battery bay and plug the AC adapter into the computer and an electrical outlet. -
Page 55: Checking The Battery Level
Charge-in-use mode When the computer is in use with the AC adapter plugged in, the computer also charges the battery pack if installed. This mode will take longer to fully charge a battery than rapid mode. In charge-in-use mode, a fully depleted battery gets fully charged in approximately three to four hours. -
Page 56: Optimizing Battery Life
Battery Pack Optimizing Battery Life This section helps you get the most out of battery operation. Optimizing battery life prolongs the charge/recharge cycle and improves recharge efficiency. Follow these suggestions to optimize and maximize battery power: Purchase an extra battery pack. Use the PhDISK utility to reserve hard disk space for the Hibernation function. -
Page 57: Battery-Low Warning
Battery-low Warning You never have to worry about battery power as long as you are using the AC adapter. However, when you operate the computer on battery power, pay extra attention to the warning beeps and the power indicator on the display panel. - Page 58 Battery Pack The following table shows the recommended course of action to take when you encounter a battery-low condition. Situation AC adapter and power outlet available An extra fully- charged battery pack available AC adapter or power outlet not available Recommended Action 1.
-
Page 59: Power Management
Power Management This computer has a built-in power management unit that monitors system activity. System activity refers to any activity involving one or more of the following devices: keyboard, mouse, floppy drive, hard disk, peripherals connected to the serial and parallel ports, and video memory. -
Page 60: Hard Disk Standby Mode
Power Management Hard Disk Standby Mode The hard disk enters standby mode when there are no disk read/write operations within the period of time specified by the Hard Disk Timeout value. In this state, the power supplied to the hard disk is reduced to a minimum. The hard disk returns to normal once the computer accesses it. -
Page 61: Hibernation Mode
To leave Standby mode and return to normal mode: Press any key Move the active pointing device (internal or external, PS/ 2 or serial) Have the resume timer set and let it be matched Open the display cover An incoming PC card modem event occurs Hibernation Mode In Hibernation mode, all power shuts off (the computer does not consume any power). - Page 62 Power Management To exit Hibernation mode, press the power switch. The computer also resumes from Hibernation mode if the resume timer is set and matched. The computer also resumes via the network if the Wake on LAN Access parameter is enabled. Warning: Do not change any devices (such as add memory or swap hard disks) when the computer is in Hibernation mode.
-
Page 63: Chapter 3 Peripherals And Options
You can purchase most of these and other options directly from Acer. This chapter also includes sections on how to upgrade key components. Key component upgradeability helps keep your computer in step with the latest technology. -
Page 64: External Monitor
External Monitor External Monitor To show graphical effects on a larger display, connect an external monitor to the CRT port. Read the monitor manual for additional instructions. Note: If an external monitor is not connected, closing the display cover puts the computer into standby mode. Using Dual Display Your computer takes advantage of Windows 98 multi- display capability, allowing you to expand your desktop to... -
Page 65: Chapter 3 Peripherals And Options
Enabling Dual Display To enable and set dual display options, follow these steps: 1. Click on Start, Settings..., then Control Panel. 2. Double-click on Display. 3. Click on the Settings tab. The Display Properties window shows two display devices, labeled 1 and 2. Typically, 1 would refer to your computer LCD and 2 to the external device. - Page 66 External Monitor Display Resolution Combinations Please refer to the following table when you set resolution and color settings for dual display mode. User’s Guide...
-
Page 67: External Keyboard
External Keyboard This computer has a keyboard with full-sized keys and an embedded keypad. If you feel more comfortable using a desktop keyboard, you can install a PS/2-compatible external keyboard. To connect an external keyboard, plug the external keyboard into the PS/2 connector. Chapter 3 Peripherals and Options External Keyboard... -
Page 68: External Keypad
External Keypad External Keypad You can also use a 17-key numeric keypad for number- sensitive data entry applications. To connect the keypad, plug the keypad connector into the PS/2 port. User’s Guide... -
Page 69: External Pointing Device
External Pointing Device This computer accepts a PS/2-compatible, serial or USB mouse or similar pointing device. Note: When using an external mouse, you may choose to disable the internal touchpad by pressing Fn-F7. External PS/2 Mouse The built-in touchpad works alternately with an external PS/2 mouse which is hot-pluggable. -
Page 70: External Serial Mouse
External Pointing Device External Serial Mouse If you use a serial mouse, plug it into the serial port. To enable the serial mouse, use the Add New Hardware tool in the Windows Control Panel. External USB Mouse Plug the USB mouse into the USB port. See “USB Devices” on page 55 for more information. -
Page 71: Printer
Printer This computer supports both serial and parallel printers. For a serial printer, plug the printer cable into a serial port. For a parallel printer, plug the printer cable into the parallel port. See your printer manual for operating instructions. Note: If the printer does not function, enter Setup and verify that the parallel port is enabled. -
Page 72: Audio Devices
Audio Devices Audio Devices Audio devices are easy to connect with the audio ports accessible from the left rear side of the computer. You can plug in an external microphone or audio line-in device to the line-in/microphone-in jack. Amplified speakers or headphones connect to the speaker/headphone-out jack. -
Page 73: Mini Docking Station
Mini Docking Station For one-step connection and disconnection from your peripherals, use the optional full-featured mini docking station, the DockMate V. DockMate V includes all the ports on your computer and adds a few more. It also has either two additional CardBus slots or built-in Ethernet for easy connection to networks. -
Page 74: Pc Cards
PC Cards PC Cards The computer has two CardBus PC card slots that accommodate two type I/II or one type III PC card(s). Please consult your dealer for PC card options available that you can purchase for your computer. User’s Guide... -
Page 75: Usb Devices
USB Devices The computer has a USB (Universal Serial Bus) port that allows you to connect peripherals without occupying too many resources. Common USB devices include the mouse and keyboard. Most USB devices also include a built-in USB port connector which allows you to daisy-chain other USB devices. -
Page 76: Miscellaneous Options
Miscellaneous Options Miscellaneous Options Additional Power Packs You can order spare batteries and an AC adapter. Battery Pack It is good practice to have a spare battery around, especially when you travel. The Lithium-Ion battery, coupled with power management features, supplies you with more power on-the-go. -
Page 77: File Transfer Cable
Connect the single connector end of the Y-bridge cable to the computer’s PS/2 port and the double connector ends to the two PS/2 devices. File Transfer Cable Besides using the infrared port, you can also transfer files between computers using a file transfer cable. Connect the file transfer cable between the parallel ports of the two computers and use your file transfer utility to perform the transfer. -
Page 78: Key Component Upgrades
Key Component Upgrades Key Component Upgrades Your computer delivers superior power and performance. However, some users and the applications they use may demand more. This computer allows you to upgrade key components when you need increased performance. Note: Contact your authorized dealer if you decide to perform a key component upgrade. -
Page 79: Installing Memory
Slot 1 32 MB 64 MB 64 MB 64 MB 64 MB 128 MB 128 MB 128 MB 128 MB Installing Memory Follow these steps to install memory: 1. Turn off the computer, unplug the AC adapter (if connected) and remove the battery pack. Then turn the computer over to access its base. - Page 80 Key Component Upgrades 3. Insert the memory module diagonally into the slot, then gently press down until it clicks into place. 4. Replace the memory door and secure it with the screw. User’s Guide...
-
Page 81: Hard Disk Upgrade
The computer automatically detects and reconfigures the total memory size. Note: After changing the memory size, remember to run PhDISK to reallocate the hard disk space necessary for the hibernation function to work. See “PhDISK” on page 73 for more information. Hard Disk Upgrade You can upgrade your hard disk with a higher capacity drive when you need more storage space. - Page 82 Key Component Upgrades 3. Pull out the hard disk. 4. Insert a new hard disk module into the hard disk bay and tighten the coin-screw by turning it clockwise. Note: If you swap hard disks after changing the memory size, remember to run PhDISK to reallocate the hard disk space necessary for the hibernation function to work.
-
Page 83: Chapter 4 Moving With Your Computer
Moving with your Computer This chapter gives you tips and hints on things to consider when moving around or traveling with your computer. Contents Disconnecting from the Desktop ....64 Moving Around . -
Page 84: Disconnecting From The Desktop
Disconnecting from the Desktop Disconnecting from the Desktop Follow these steps to disconnect your computer from external accessories: 1. Save your work in progress. 2. Remove any media, diskette and compact disc, from the drive(s). 3. Shut down the operating system. 4. -
Page 85: Moving Around
Moving Around when you are just moving within short distances, for example, from your office desk to a meeting room Preparing the Computer Before moving the computer, close and latch the display cover to place it in standby mode. You can now safely take the computer anywhere you go within the building. -
Page 86: Taking The Computer Home
Taking the Computer Home Taking the Computer Home when you are moving from your office to your home or vice versa Preparing the Computer After disconnecting the computer from your desktop, follow these steps to prepare the computer for the trip home: 1. -
Page 87: Setting Up A Home Office
If you need to stop for an extended period of time and cannot bring the computer with you, leave the computer in the trunk of the car to avoid exposing the computer to excessive heat. Changes in temperature and humidity can cause condensation. -
Page 88: Traveling With The Computer
Traveling with the Computer Traveling with the Computer when you are moving within a larger distance, for instance, from your office building to a client’s office building or traveling locally Preparing the Computer Prepare the computer as if you were taking it home. Be sure the battery in the computer is charged. -
Page 89: Traveling Internationally With The Computer
Traveling Internationally with the Computer Traveling Internationally with the Computer when you are moving from country to country Preparing the Computer Prepare the computer as you would normally prepare it for traveling. What To Bring with You Bring the following items with you. AC adapter Power cords that are appropriate to the country to which you are traveling... - Page 90 Traveling Internationally with the Computer If you are using the modem, check if the modem and connector is compatible with the telecom system of the country you are traveling in. User’s Guide...
-
Page 91: Chapter 5 Software
This chapter discusses the important system utilities bundled with your computer. Contents System Software ......72 PhDISK. -
Page 92: System Software
System Software System Software The computer comes preloaded with the following software: Windows 98 or Windows NT operating system Hardware BIOS setup utility Support for LDCM (LANDesk Client Manager) System utilities, drivers and application software Note: To access Windows 98 or Windows NT software applications, click on the Start button and select the application folder. -
Page 93: Phdisk
PhDISK The PhDISK utility allows your computer to enter hibernation mode. Before entering hibernation mode, your computer saves all necessary information into a file or partition created by PhDISK, then shuts off power to all system components. On the next startup, the computer reloads the information from the PhDISK file or partition and resumes from where you left off. -
Page 94: Notebook Manager
Notebook Manager Notebook Manager The computer has a built-in system setup program called Notebook Manager. The Windows-based Notebook Manager allows you to set passwords, the startup sequence of the drives and power management settings. It also shows current hardware configurations. Note: Certain hot key functions are disabled when you access the notebook manager, because these functions are also found in the notebook manager. -
Page 95: Information Viewer
Information Viewer Information Viewer summarizes and lists information about the specifications and settings of the different components of your computer. Note: Items in this table may differ slightly from the ones onscreen. Item Total Memory Video RAM Hard Disk Serial Port 1 Serial Port 2 Chapter 5 Software Notebook Manager... -
Page 96: Boot Sequence
Notebook Manager Item Parallel Port External Cache Touchpad Pointing Device The current version of the computer’s BIOS shows before the Device-Configuration table. Boot Sequence Boot Sequence defines the boot sequence to follow when your computer boots up. The Boot Sequence screen displays the bootable devices in your computer and the order in which the booting sequence will occur. -
Page 97: Password
Floppy Drive IDE Hard Drive CD-ROM/DVD-ROM Drive (for bootable AcerMedia Bay modules) Simply drag and drop the devices the change the booting order. Click on Apply to accept. Password Password is used to set, modify or delete the password(s) for your computer. -
Page 98: Setting The Supervisor Password
Notebook Manager Setting the Supervisor Password Note: Before you can set the User Password, you need to set the Supervisor Password. To set the Supervisor Password, follow these steps: 1. Click on the Change Supervisor Password button. The following dialog box displays: 2. -
Page 99: Setting The User Password
Setting the User Password To set the User Password, follow these steps: 1. Click on the Change User Password button. 2. Click on the Enable User Password checkbox. 3. Click in the New Password textbox and type in up to seven alphanumeric characters (A-Z, a-z, 0-9) which you want to be your User Password. -
Page 100: Power Management
Notebook Manager Power Management Power Management is used to set various settings related to power management. This includes the following power-saving-related features: Item Enable modem ring resume on indicator Enable wake on Enable battery low warning beep Enable sleep upon battery low Description Select to allow the computer to wake up from standby mode when an incoming... -
Page 101: Display Device
Item Enable system resume timer Display Device Display Device is used to control various settings related to display device(s), such as the display brightness level. The items in this screen include: Boot Display Device. Sets the default display device on boot-up. -
Page 102: Line-In/Microphone
Notebook Manager Brightness for LCD Panel. Click and drag to set the LCD screen brightness levels. Click on the radio button of the desired item, then click on Apply to accept. To modify the brightness level, click and hold the slider control and move to the right to increase, move to the left to decrease the setting. -
Page 103: Setup Utility
Setup Utility The Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/Ouput System). Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. -
Page 104: Main
Setup Utility Main The Main screen contains parameters involving basic computer settings and hardware information. The following table describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings. Parameter System Time System Date Floppy Disk A Hard Disk 0 Description Sets the system time. -
Page 105: Chapter 5 Software
Parameter CD-ROM Boot sequence System Memory Video Memory CPU Type CPU Speed Serial Number Asset Number BIOS Version VGA BIOS Version Note: The BIOS versions are important information about your computer. If you experience computer problems and need to contact technical support, this data helps our service personnel know more about your computer. -
Page 106: Hard Disk 0 Submenu
Setup Utility Hard Disk 0 Submenu The Hard Disk 0 submenu allows you to set parameters related to your hard disk. Press Enter to access this submenu. The following table describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings. -
Page 107: Cd-Rom Submenu
Note: The values in this screen are automatically set to their optimal values when Type is set to Auto. We suggest you set Type to Auto for hassle-free and correct hard disk detection. CD-ROM Submenu The CD-ROM submenu allows you to set parameters related to the CD-ROM drive (or other drive installed in the AcerMedia Bay). -
Page 108: Boot Sequence Submenu
Setup Utility Boot Sequence Submenu The Boot Sequence submenu allows you to set the boot sequence of the bootable devices in your computer. Press Enter to access this submenu. The computer boots-up using the sequence specified in this submenu. To set the boot sequence, use the plus/minus +- keys. -
Page 109: Advanced
Advanced Caution: The parameters in this screen are for advanced users only. You do not need to change the values in this screen because these values are already optimized. The Advanced screen contains parameters that are related to computer hardware. The following table describes the parameters in this screen. - Page 110 Setup Utility Parameter Mode Speaker Default Microphone/ Line-In Boot Display Description Sets the operation mode of the parallel port. Options: ECP , Bi-directional, or Output only Enables or disables the internal speakers on boot-up. You can override this by toggling Fn-F8 during computer operation.
-
Page 111: Security
Security The Security screen contains parameters that help safeguard and protect your computer from unauthorized use. The following table describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings. Parameter Supervisor Password is Chapter 5 Software Description When set, this password protects the computer and this Setup Utility from unauthorized entry. -
Page 112: Setting A Password
Setup Utility Parameter User Password is Supervisor Password Set User Password Password on boot Password Check During Resume Note: To set the User Password or the Password on boot, Password Check During Resume parameters, you need to set the Supervisor Password first. Setting a Password Follow these steps: 1. -
Page 113: Removing A Password
The password box appears: 2. Type a password. The password may consist of up to seven characters (A-Z, a-z, 0-9). Important: Be very careful when typing your password because the characters do not appear on the screen. 3. Press Enter. Retype the password to verify your first entry and press Enter. -
Page 114: Power
Setup Utility Power The Power Saving screen contains parameters that are related to power-saving and power management. The following table describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings. Parameter backlight Timeout Hard Disk Timeout Standby Timeout... - Page 115 Parameter Resume on LAN access Resume On Time Hotkey Beep Battery Low Warning Battery Low Suspend Chapter 5 Software Description When enabled, the computer resumes operation when accessed via LAN using a remote computer. Options: Disabled or Enabled When enabled and the system resume date and time are valid, the computer resumes (wakes up) at the set time and date.
-
Page 116: Exit
Setup Utility Exit When you select the Exit menu or press Esc from any screen, the Exit options screen displays. The following table describes the parameters in this screen. Parameter Exit Discarding Changes Exit Saving Changes Load Setup Defaults Discard Changes Save Changes Note: If you wish to keep any changes you make to... -
Page 117: Chapter 6 Troubleshooting
Troubleshooting This chapter instructs you on how to deal with common system problems. Read it before calling a technician if a problem occurs. Solutions to more serious problems require opening up the computer. Do not attempt to open the computer by yourself. Contact your dealer or an authorized service center for assistance. -
Page 118: Frequently-Asked Questions
Frequently-Asked Questions Frequently-Asked Questions This is a list of possible situations that may arise during the use of your computer, and gives easy answers and solutions to these questions. I pressed the power switch and opened the display, but the computer does not start or boot-up. - Page 119 If pressing a key does not turn the display back on, two things might be the cause: The brightness level might be too low. Press Fn- to adjust the brightness level. The display device might be set to an external monitor. Press the display toggle hot key Fn-F6 to toggle the display back to the computer.
- Page 120 Frequently-Asked Questions External microphone or audio line-in device does not work. Check the following: Make sure the external microphone or audio line-in device is connected to the line-in/microphone-in jack on the computer's rear panel. If you cannot hear playback, the speakers may be muted.
- Page 121 The keyboard does not respond. Try attaching an external keyboard to the PS/2 connector on the computer’s rear. If it works, contact your dealer or an authorized service center as the internal keyboard cable may be loose. The serial mouse does not work. Check the following: Make sure that the serial cable is plugged securely into the serial port.
- Page 122 Frequently-Asked Questions The infrared port does not work. Check the following: Make sure that the infrared ports of the two devices are facing each other (+/- 15 degrees) a maximum of 1 meter apart. Make sure there is a clear path between the two infrared ports.
- Page 123 Frequently-Asked Questions 3. At the DOS prompt, type phdisk /create /file and press Enter. See “PhDISK” on page 73 for more information. Chapter 6 Troubleshooting...
-
Page 124: Error Messages
Error Messages Error Messages If you receive an error message, note the message and take the corrective action. The following table lists the error messages in alphabetical order together with the recommended course of action. Error Messages CMOS Battery Bad CMOS Checksum Error Disk Boot Failure Diskette Drive... -
Page 125: Chapter 6 Troubleshooting
Error Messages Insert system diskette and press <Enter> key to reboot Keyboard Error or No Keyboard Connected Keyboard Interface Error Memory Size Mismatch Missing operating system Non-system disk or disk error. Replace and strike any key when ready Pointing Device Error Pointing Device Interface Error Protected Mode Test... - Page 126 Error Messages Error Messages RAM BIOS Bad RAM Parity Error Real-Time Clock Error Video RAM BIOS Bad If you still encounter problems after going through the corrective measures, please contact your dealer or an authorized service center for assistance. Some problems may be solved using the BIOS Setup Utility.
-
Page 127: Specifications
This appendix lists the general specifications of your computer. Microprocessor Intel Pentium® II processor with 256KB on-die cache memory Memory Main memory expandable to 256 MB Synchronous Dynamic Random Access Memory (SDRAM) Two 144-pin industry-standard soDIMM sockets 64-bit dual memory banks 512KB Flash ROM BIOS Data Storage One 2.5-inch, 12.7mm removable hard disk... - Page 128 Specifications Audio 16-bit PCI stereo audio with 3-D sound and built-in wavetable synthesizer Dual speakers and internal microphone with echo- cancellation feature Sound Blaster Pro- and Windows Sound System- compatible Separate audio ports for line-out and line-in/ microphone-in devices Keyboard and Pointing Device 84-/85-/88-key Windows keyboard Ergonomically-centered touchpad pointing device I/O Ports...
-
Page 129: Appendix A Specifications
Weight and Dimensions 13.3-inch model: 3.46 kg (7.62 lb) 14.1-inch model: 3.56 kg (7.83 lb) 315~317 x 251~257 x 44~47 mm (12.40~12.48 x 9.88~10.12 x 1.73~1.89 in) Temperature Operating: 10°C ~ 35°C Non-operating: -20°C ~ 60°C Humidity (non-condensing) Operating: 20% ~ 80% RH Non-operating: 20% ~ 80% RH System Windows 98 or Windows NT (option) operating system... - Page 130 Specifications Options 32-/64-/128-MB memory upgrade module Higher-capacity hard disk drive AcerMedia Bay modules DVD-ROM drive Secondary hard disk PS/2 Y-cable Full-function DockMate V mini docking station Additional AC adapter and battery pack User’s Guide...
-
Page 131: Index
Numerics 3D enhanced function enabling AC adapter caring for xviii connecting audio connecting externally controlling volume setting input source in Notebook Manager troubleshooting battery installing battery pack battery-low warning caring for characteristics charging charging indicator charging modes checking charge level installing low conditions optimizing... - Page 132 printer PS/2 y-bridge cable s-video contrast setting in Notebook Manager date setting in Setup Utility diskette ejecting diskette drive display auto-dim feature dual hot keys opening and closing performance power management setting boot device in Notebook Manager setting boot device in Setup Utility setting in Notebook Manager...
- Page 133 Windows keys keypad connecting externally LEDs media access on indicator media bay swapping modules memory installing size configurations upgrading messages error microphone troubleshooting modem module swapping monitor connecting mouse connecting externally troubleshooting Notebook Manager Boot Sequence Display Device hot key Information Viewer Password Power Management...
- Page 134 Standby mode printer connecting troubleshooting problems audio CD-ROM display infrared keyboard printer serial mouse startup troubleshooting PS/2 mouse connecting PS/2 y-bridge cable connecting questions multiple PS/2 devices setting location for modem safety CD-ROM drive FCC notice general instructions lithium battery security keylock passwords...
- Page 135 Universal Serial Bus connecting USB. See Universal Serial Bus utility BIOS Setup Notebook Manager PhDISK volume adjusting warranty International Traveler’s Warranty xvii Windows keys Index Index...
