Main Module Reassembly Procedure
Replacing the CPU

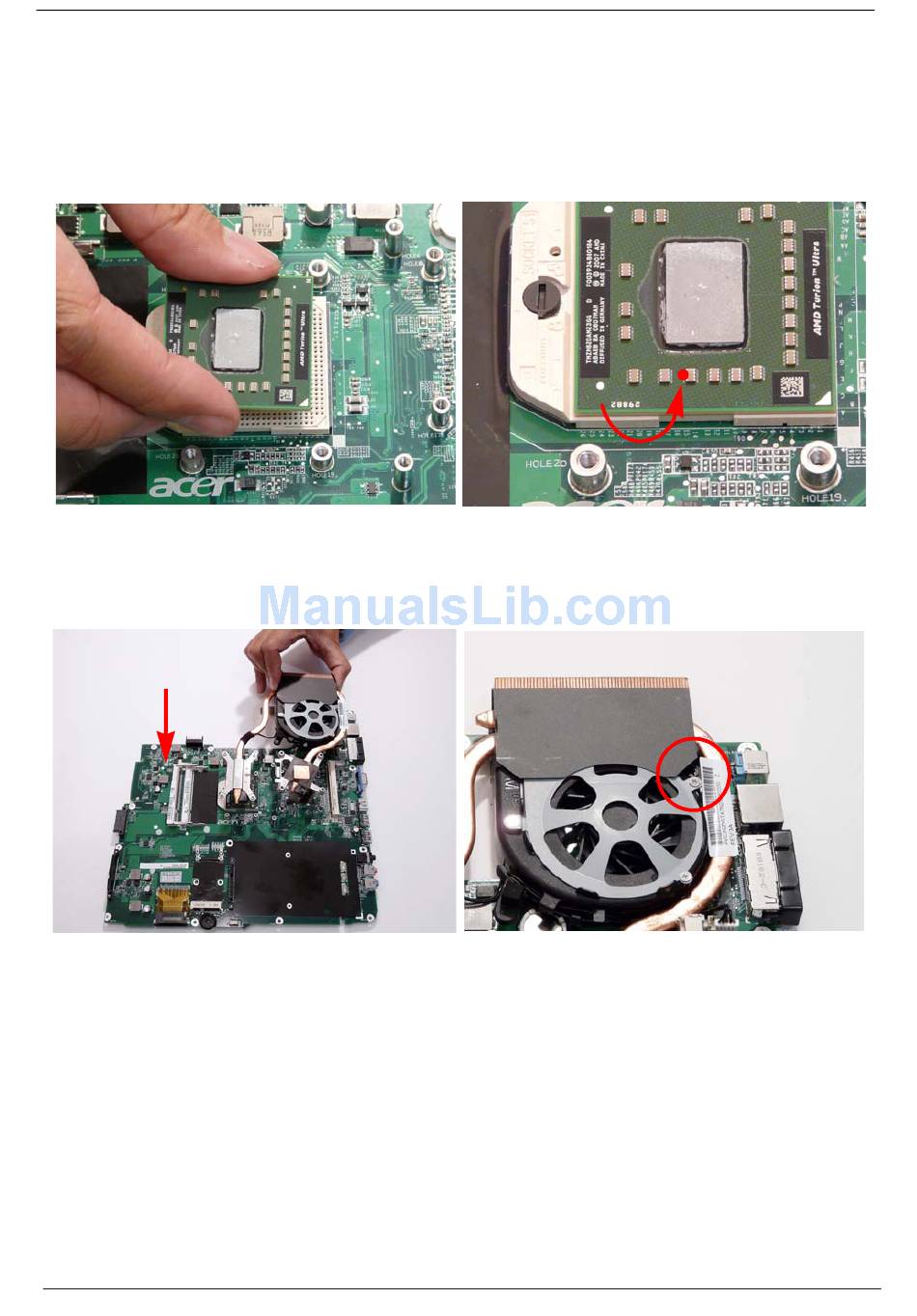

1. Carefully turn the mainboard upside down (CPU
side up), and insert the CPU into the CPU bracket
as shown.
Replacing the CPU Fan Module
1. Replace the Fan module on the Mainboard.
102
2. Using a plastic screw driver, lock the CPU in the
socket as shown.
2. Lift the cover to replace the single screw located in
the back of the fan module.
