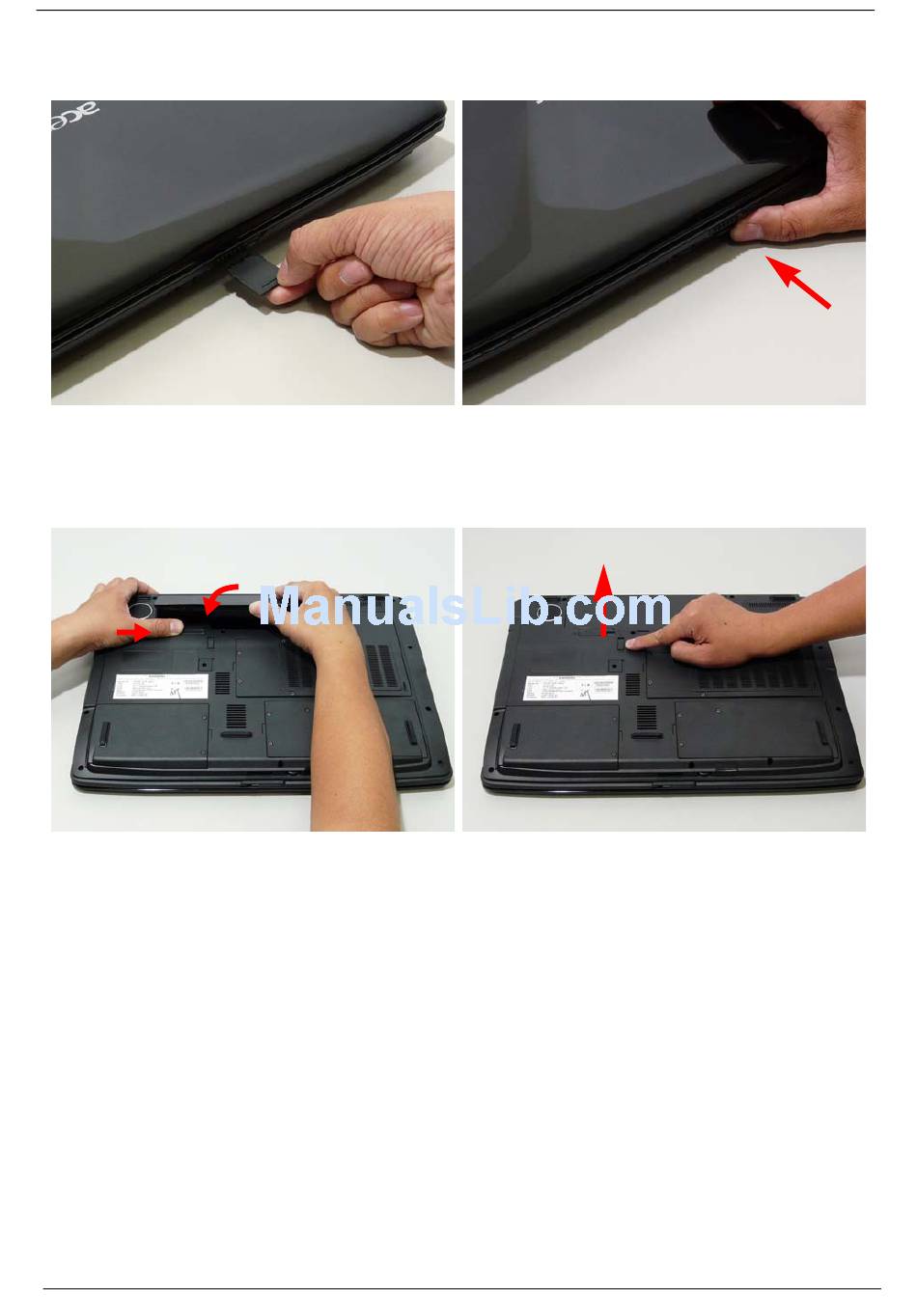

Replacing the SD Dummy Tray

1. Insert the SD dummy as shown.

Replacing the Battery

1. Slide and hold the battery release latch (1), insert
battery in to the main unit (2).
1
128
2
2. Push into the slot until flush with the chassis cover.
2. Slide the battery lock/unlock latch to the lock
position.
Chapter 3
