Removing the Subwoofer Module

1. See "Removing the Upper Cover" on page 70.

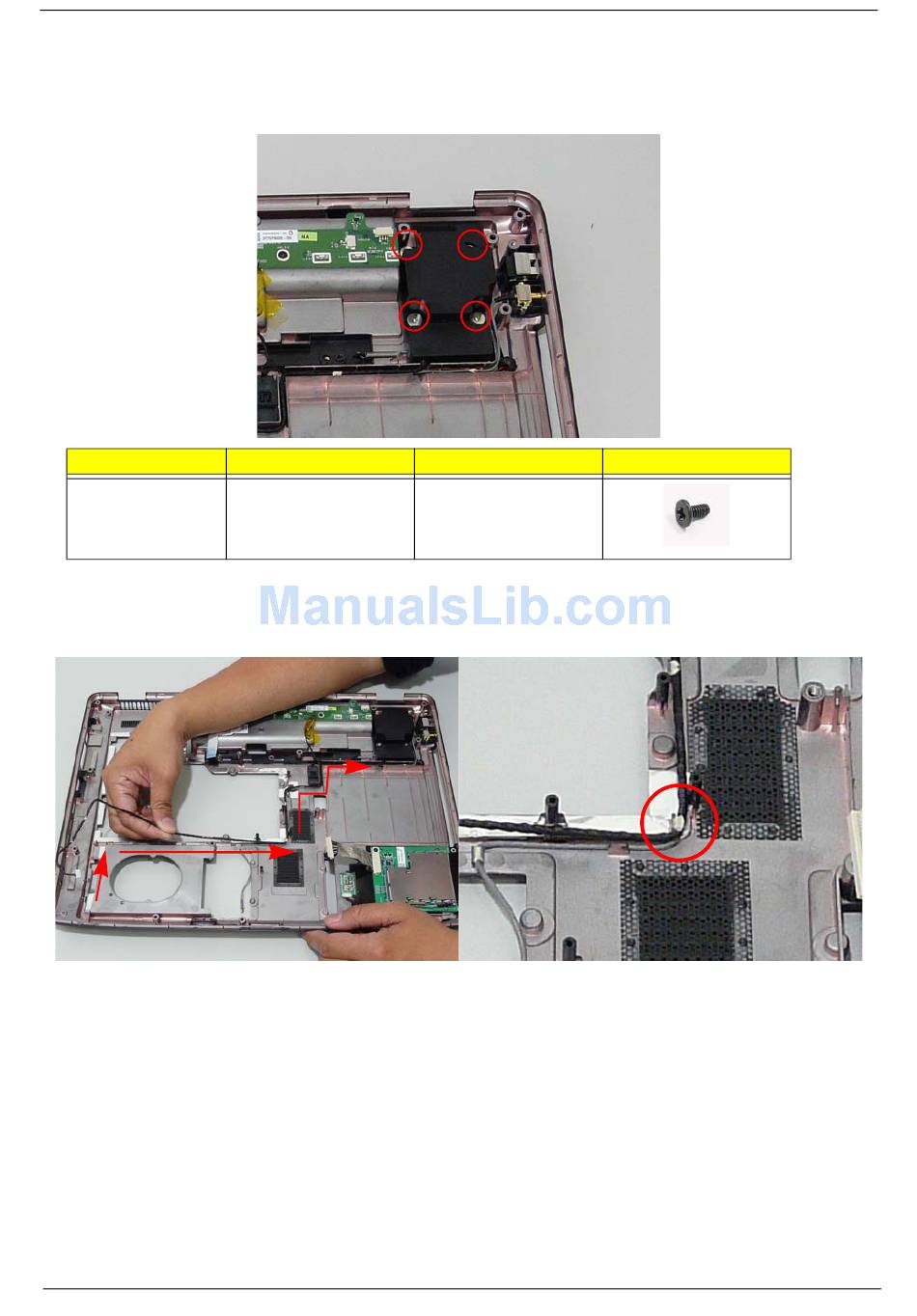

2. Remove the four securing screws from the Subwoofer Module.
Step
Subwoofer
Module
3. Grasp the cable by the end and guide it out of its housing as shown in the following images.
IMPORTANT:The housing guides are hooked to hold the cable in place. Do not pull the cable to remove it or
damage can occur.
Chapter 3
Size
M2.5*4
Quantity
4
Screw Type
81
