Removing the Launch Board

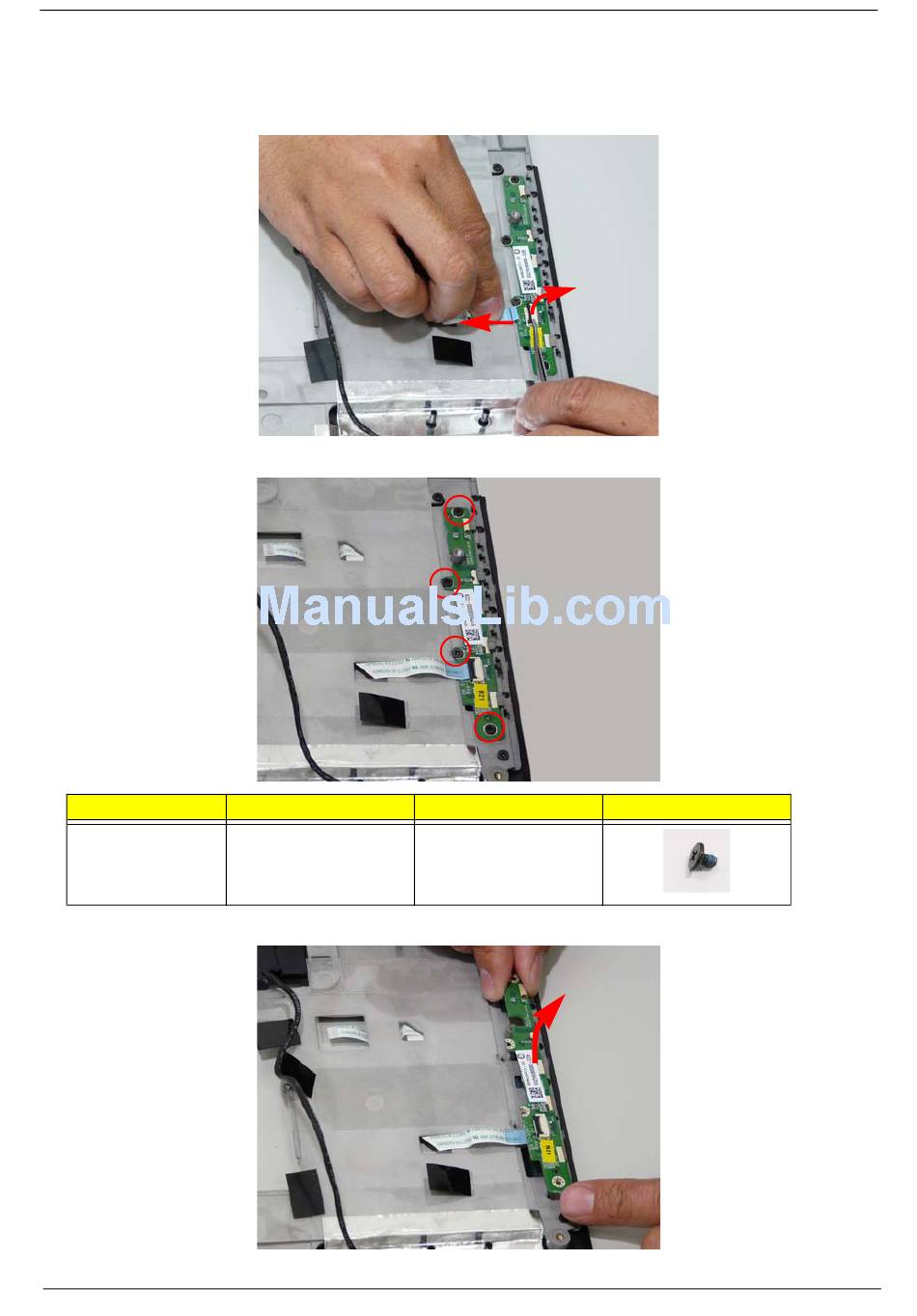

1. Remove the Upper Cover. See "Removing the Upper Cover" on page 70.
2. Lift up the locking latch and remove the FFC cable as shown.
3. Remove the four screws from the Launch Board.
Step
Launch Board
4. Remove the Launch Board from the Upper Cover.
Chapter 3
Size
M2*3
Quantity
4
Screw Type
77
