Item #1003 023 406
#1003 023 401
Model # YG269B-EB
# YG269B-GM
USE AND CARE GUIDE

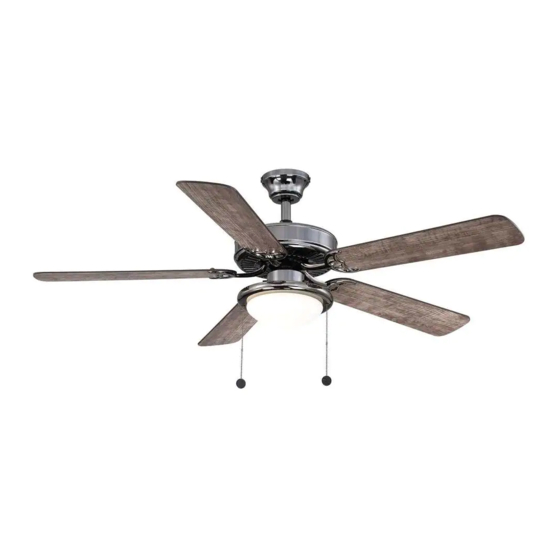

TRICE 52 INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store call
Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
THANK YOU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YG269B-EB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Depot YG269B-EB

  • Page 1 Item #1003 023 406 #1003 023 401 Model # YG269B-EB # YG269B-GM USE AND CARE GUIDE TRICE 52 INCH CEILING FAN Questions, problems, missing parts? Before returning to the store call Home Depot Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-877-527-0313 HOMEDEPOT.COM...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............Operation ..............Pull Chain Operating Instructions .......... Safety Information ............Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-installation .............. Troubleshooting ............Specifications ................Service Parts ............... Tools Required ................. Hardware Included ..............
  • Page 3: Safety Information

    Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning.
  • Page 4: Warranty

    Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of 15 years after the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is returned.
  • Page 5: Hardware Included

    Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Part Description Description Quantity Quantity Plastic wire nut Canopy mounting screw with lock washer (preassembled) Blade attachment screw and fiber washer Blade arm screw and lock washer Clevis pin (preassembled) Cotter pin (preassembled) Collar setscrew (preassembled)
  • Page 6: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Blade Canopy Blade arm Canopy bottom cover (preassembled) Light kit Hanger ball/downrod assembly Glass shade Fan motor assembly...
  • Page 7: Dual Mounting Instructions

    Pre-Installation (continued) DUAL MOUNTING INSTRUCTIONS DUAL MOUNTING INSTRUCTIONS This ceiling fan is supplied with two types of hanging assemblies: the standard ceiling installation using the downrod with ball and socket mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling" mounting is recommended in rooms with less than 8 ft. ceilings or in areas where additional space is desired from the floor to the fan blades.
  • Page 8: Installation

    Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: WARNING: You may need a longer downrod to maintain proper To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°...
  • Page 9: Assembly

    Assembly — Standard Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove the cotter pin (FF), and clevis pin (EE), and Remove the two non-slotted canopy mounting screws loosen the two collar setscrews (GG) from the motor with lock washers (BB) from the canopy (B), and collar.
  • Page 10: Close-To-Ceiling Mounting

    Assembly — Close-to-Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove the mounting bracket (A) from the canopy (B) Remove the cotter pin (FF), clevis pin (EE) and the by loosening the four canopy mounting screws with two collar setscrews (GG) from the motor collar. lock washers (BB) on the top of the canopy (B).
  • Page 11: Hanging The Fan

    Assembly — Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of fire, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box.
  • Page 12 Assembly — Hanging the Fan (continued) Making the electrical 6 6 a connections Ground WARNING: To avoid possible electrical shock, be sure conductor Neutral electricity is turned off at the main fuse box before wiring. Black White WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
  • Page 13 Assembly — Hanging the Fan (optional) Single Switch Connections Dual Switch Connections □ On a single switch the fan and light can be turned on or On a dual switch the fan and light can be turned on or off off together.
  • Page 14 Assembly — Hanging the Fan (continued) Standard ceiling mounting Close-to-ceiling mounting WARNING: Locking slots of the canopy (B) are provided WARNING: Make sure the tab on the mounting bracket (A) only as an aid to mounting. Do not leave the fan assembly properly sits in the groove in the hanger ball (D) before unattended until all four canopy mounting screws with lock attaching the canopy (B) to the mounting bracket (A) by...
  • Page 15: Attaching The Fan Blades

    Assembly — Attaching the Fan Blades Removing the rubber Attaching the blades to the packing mounts blade arms □ The fan motor assembly (E) is shipped with rubber NOTE: Your fan blades are reversible. Select the blade side packing mounts (PP) to prevent movement during finish which best accentuates your decor.
  • Page 16 Assembly — Attaching the Fan Blades (continued) Fastening the blade assemblies to the motor WARNING: To reduce the risk of personal injury, do not bend the blade arms (G) while installing, balancing the blades (F), or cleaning the fan. Do no insert foreign objects between rotating fan blades (F).
  • Page 17: Installing The Light Kit

    Assembly — Installing the Light Kit Attaching the light kit to Mounting the light bulb and the switch housing installing the glass shade □ Install one 9 watt LED bulb (KK) (included). CAUTION: Before starting the installation, disconnect the power by turning off the circuit breaker or removing the fuse □...
  • Page 18 Assembly — Installing the Light Kit (continued) Installing the fan without the light kit (optional) □ Disassemble the switch housing cover (RR) from the light kit (H). You can keep the light kit (H) for future use. □ Attach the plastic plug (MM) to the switch housing cover (RR).
  • Page 19: Operation

    Operation PULL CHAIN OPERATING INSTRUCTIONS PULL CHAIN OPERATING INSTRUCTIONS Install two pull chains and fobs (LL) onto the pull chains located in the switch housing (QQ) and light kit (H). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
  • Page 20: Care And Cleaning

    Care and Cleaning Do Do Do not Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some □...
  • Page 21 Troubleshooting (continued) Problem Problem Solution Solution □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
  • Page 22: Service Parts

    Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Blade attachment screw and fiber washer Canopy Blade arm screw and lock washer (preassembled) Canopy bottom cover (preassembled) Clevis pin (preassembled) Hanger ball/downrod assembly Cotter pin (preassembled) Fan motor assembly Collar setscrew (preassembled) Blade...
  • Page 23 Questions, problems, missing parts? Before returning to the store call Home Depot Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
