FilterQuick

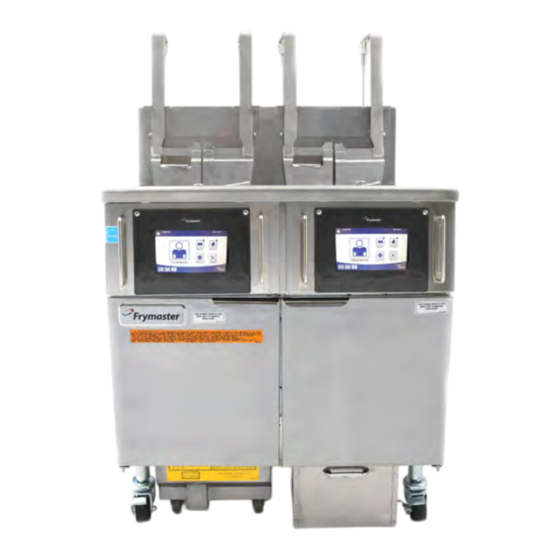

Taco Bell Gas Fryer
Installation, Operation and Maintenance
Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
FOR YOUR SAFETY
Do Not Store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
*8197476*
Part Number: FRY_IOM_8197476 08/2021
Original Instructions
™
FQG30U-
READ THE INSTRUCTIONS BEFORE USING THE
Read these instructions for use carefully so as to
familiarize yourself with the appliance before
connecting it to its gas supply.
Keep these instructions for future reference.
Your Growth Is Our Goal
easyTouch
CAUTION
FRYER.
®
