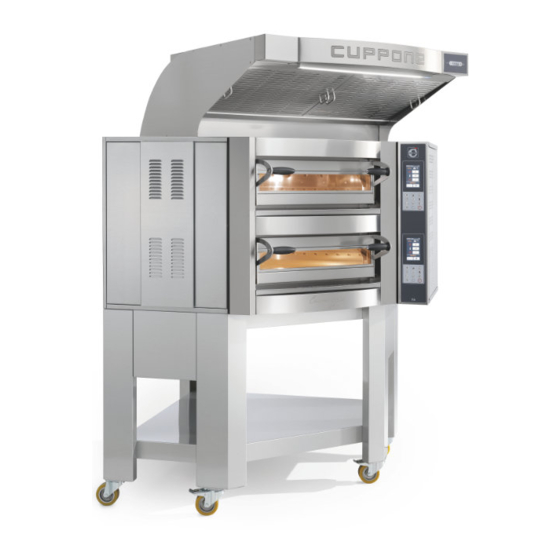

Cuppone Caravaggio CR535/1TS Pre-Installation And Installation Manual
Hide thumbs
Also See for Caravaggio CR535/1TS:
- Use and maintenance manual (36 pages) ,
- Use and maintenance manual (44 pages) ,
- Pre-installation and installation manual (46 pages)
Related Manuals for Cuppone Caravaggio CR535/1TS
Summary of Contents for Cuppone Caravaggio CR535/1TS
- Page 1 Caravaggio OVEN Pre-installation and installation manual CR535/1TS CR535/1CD CR535/2TS CR535/2CD CR835/1TS CR835/1CD CR835/2TS CR835/2CD...
- Page 2 Do not hesitate to contact him in case of doubt. Positioning ......................17 Serial number plate reading ..............18 CUPPONE 1963 Smoke extraction ..................18 Cuppone F.lli S.r.l. Electrical connection ...................19 Via Sile, 36 Wiring diagrams .....................21 31057 Silea (TV) - ITALY Pre-testing and final inspection ............27 T +39 0422 361143 Checking the operation and first start-up ........27...
- Page 3 CHECKS BEFORE PURCHASING check and agree with the owner Before purchasing the oven and before its installation, that, on installation, all the following conditions are met; they are indispensable for the correct and safe installation, operation and maintenance of the oven. Check with the owner if in the place of installation there are the tools to handle the oven easily Fig.
- Page 4 Checks before purchasing Inform the owner about the necessary electrical • it is possible to maintain a minimum distance between Survey the installation room to make sure it is adequate. walls, other equipment, objects arrangements (activities to be carried out by a the oven and the combustible materials Fig.
- Page 5 Evacuation tube, 150 mm in.].in diameter (NOT supplied) [ 5.91 Max 35°C Max 95°F Min 5°C Max 70% Min 41°F not supplied not supplied Fig. 3 extraction system min. 500 mm min. 50 mm [19,7 in.] [1,97 in.] draught switch The minimum side distance is 50 mm [1.97 in.], However we recommend you leave a gap of 500 mm [19.7 in.] on the right side* to make access to the electrical system easier.
-
Page 6: Oven Technical Data
OVEN TECHNICAL DATA Electrical data A Oven door Models Oven smoke exhaust single double single double C Control panel D Panel to access electrical components 230V - EU 230V - EU Power supply 3Nx400V - EU 3Nx400V - EU 3Nx400V - EU 3Nx400V - EU Circuit breaker (only USA models) 3x208V - USA... - Page 7 CARAVAGGIO CR 5 | single oven technical data ø 80mm 1689mm 66,5in 1257mm 49,5in 1445mm 56,9in 107,5mm 4,2in oven weight CR 5 single 230 kg - 507 lb 60mm 2,4in 978mm 38,5in weight of packaging + CR 5 single complete oven 1837mm 72,3in 270 kg - 595 lb oven...
- Page 8 CARAVAGGIO CR 5 | double oven technical data ø 80mm 1689mm 66,5in 1257mm 49,5in 1445mm 56,9in oven weight CR 5 double 450 kg -992 lb 978mm 38,5in 1837mm 72,3in weight of packaging + CR 5 double complete oven 494 kg - 1089 lb oven 60mm 2,4in packaging dimensions CR 5 double...
- Page 9 CARAVAGGIO CR 5 | triple oven technical data ø 80mm 49,47in 66,50in 1257mm 1689mm 56,84in 1445mm 2,36in 60mm 978mm 38,5in 1837mm 72,3in Ed. 0121 - 70702521 REV05 Caravaggio - Installation...
- Page 10 CARAVAGGIO CR 5 | capacity oven technical data PIZZA Ø 35 cm [Ø 13.78 in.] PIZZA Ø 50 cm [Ø 19,69 in.] Ø PIZZAS PRODUCTIVITY PER HOUR BATCHE S Ø 35 cm [Ø 13.78 in.] 50-55 pizzas 10-11 623mm 24,5in Ø...
- Page 11 CARAVAGGIO CR 8 | single oven technical data ø 80mm 1500mm 59,0in 1683mm 66,3in 2004mm 78,9in 107,5mm 4,2in 60mm 2,4in 1122mm 44,2in oven weight CR 8 single 270 kg - 595 lb 2166mm 85,3in weight of packaging + CR 8 single complete oven 306 kg - 674 lb oven packaging dimensions CR 8 single...
- Page 12 CARAVAGGIO CR 8 | double oven technical data ø 80mm 1500mm 59,0in 2004mm 78,9in 1683mm 66,3in oven weight CR 8 double 1122mm 44,2in 520 kg - 1146 lb 2166mm 85,3in 60mm 2,4in weight of packaging + CR 8 double complete oven 570 kg - 1256 lb oven packaging dimensions CR 8 double...
- Page 13 CARAVAGGIO CR 8 | triple oven technical data ø 80mm 59,04in 78,91in 1500mm 2004mm 66,26in 1683mm 2,36in 60mm 1122mm 44,2in 2166mm 85,3in Ed. 0121 - 70702521 REV05 Caravaggio - Installation...
- Page 14 CARAVAGGIO CR 8 | capacity oven technical data PIZZA Ø 35 cm [Ø 13.78 in.] PIZZA Ø 50 cm [Ø 19,69 in.] Ø PIZZAS PRODUCTIVITY PER HOUR BATCH ES Ø 35 cm [Ø 13.78 in.] 80-88 pizzas 10-11 Ø 50 cm [Ø 19.69 in.] 36-40 pizzas 9-10 765mm 30,1in...
