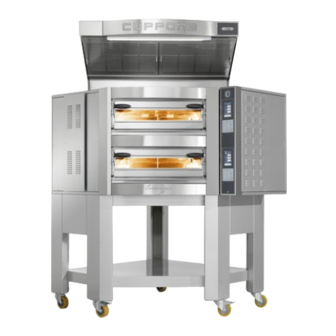

Cuppone Caravaggio Pre-Installation And Installation Manual

Cuppone Caravaggio Pre-Installation And Installation Manual

Hide thumbs Also See for Caravaggio:

Advertisement

Quick Links

Original instructions
Caravaggio
Caravaggio 4.0
OVEN
Pre-installation and installation manual
CR535/1TS
CR535/1CD
CR535/2TS
CR535/2CD
CR835/1TS
CR835/1CD
CR835/2TS
CR835/2CD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Caravaggio and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cuppone Caravaggio

  • Page 1 Original instructions Caravaggio Caravaggio 4.0 OVEN Pre-installation and installation manual CR535/1TS CR535/1CD CR535/2TS CR535/2CD CR835/1TS CR835/1CD CR835/2TS CR835/2CD...
  • Page 2: Table Of Contents

    Electrical data ......................6 Caravaggio CR 5 oven technical data ............ 7 Before the installation, read the content of this manual careful- Caravaggio CR 8 oven technical data ............ 14 ly: it contains important information regarding product assem- bly and safety regulations.
  • Page 3: Checks Before Purchasing

    The “Technical data” section from page contains the weights and dimensions of the ovens and cooking chambers. Never use this part as a lifting point, this might cause damage to the appliance. Fig.1 Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 4 Checks before purchasing Survey the installation room to make sure it is ade- • it is possible to maintain a minimum distance between Inform the owner about the necessary electrical quate. the oven and the walls, other equipment, objects arrangements (activities to be carried out by a combustible materials Fig.2 qualified electrician)
  • Page 5 500 mm [19.7 in.] on the right side to make access to the electrical system easier. If this is not possible, in case of intervention, it will be necessary to move the oven from its housing with suitable systems. Fig.2 Fig.4 Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 6: Oven Technical Data

    OVEN TECHNICAL DATA Electrical data * Warning: the values indicated refer to an oven chamber. Double ovens have 2 inlets and therefore 2 different lines ** Warning: for models other than those indicated, contact the company Power supply Power Average consumption Absorption Cable type * Customer panel prot.*...
  • Page 7: Caravaggio Cr 5 Oven Technical Data

    Caravaggio CR 5 technical data | single oven ø 80mm 1689mm 66,5in 1257mm 49,5in 1445mm 56,9in 107,5mm 4,2in 60mm CR 5 single oven weight 2,4in 230 kg - 507 lb 978mm 38,5in 1837mm 72,3in weight of packaging + CR 5 single complete oven...
  • Page 8 Caravaggio CR 5 + KCR5 hood technical data | hood + single oven 466mm 18,3in 317mm 12,5in 1056mm 41,6in 1798mm 70,8in 1268mm 49,9in 403mm 3,1in 15,9in 80mm 147mm 5,8in 144.5mm 5,7in 15,1in 528mm 20,8in 383.5mm 3,1in 78,5mm 107,5mm 4,2in 60mm 2,4in 15,1in 144.5mm 5,7in...
  • Page 9 CARAVAGGIO CR 5 oven technical data | double oven ø 80mm 1257mm 49,5in 1689mm 66,5in 1445mm 56,9in CR 5 double oven weight 450 kg - 992 lb 978mm 38,5in 1837mm 72,3in packaging + complete CR 5 double oven weight 494 kg - 1089 lb...
  • Page 10 Caravaggio CR 5 oven + KCR5 hood technical data | hood + double oven 466mm 1798mm 70,8in 18,3in 317mm 12,5in 1056mm 41,6in 1268mm 49,9in 403mm 15,9in 3,1in 80mm 147mm 5,8in 144.5mm 5,7in 528mm 20,8in 383.5mm 15,1in 78,5mm 3,1in 107,5mm 4,2in 60mm 2,4in 383.5mm...
  • Page 11 Caravaggio CR 5 oven technical data | triple oven ø 80mm 1257mm 49,47in 1689mm 66,50in 1445mm 56,84in 2,36in 60mm 978mm 38,5in 1837mm 72,3in Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 12 Caravaggio CR 5 oven + KCR5 hood technical data | hood + triple oven 1798mm 70,77in 12,48in 18,29in 1056mm 41,57in 317mm 466mm 1268mm 49,87in 15,85in 403mm 3,1in 80mm 5,8in 147mm 2,36in 60mm 144.5mm 5,7in 528mm 20,8in 383.5mm 15,1in 78,5mm 3,1in...
  • Page 13 Caravaggio CR 5 oven technical data | capacity PIZZA PIZZA TRAY Ø 35 cm [Ø 13.78 in.] Ø 50 cm [Ø 19.69 in.] 60x40 cm [23.62x15.75 in.] Ø PIZZAS HOURLY PRODUCTIVITY Ø 35 cm [Ø 13.78 in.] 50 pizzas Ø 50 cm [Ø 19.69 in.]...
  • Page 14: Caravaggio Cr 8 Oven Technical Data

    Caravaggio CR 8 oven technical data | single oven ø 80mm 1500mm 59,0in 1683mm 66,3in 2004mm 78,9in 107,5mm 4,2in 60mm 2,4in CR 8 single oven weight 1122mm 44,2in 270 kg - 595 lb 2166mm 85,3in weight of packaging + CR 8 single complete oven...
  • Page 15 Caravaggio CR 8 + KCR8 hood technical data | hood + single oven 482mm 2056mm 80,9in 19,0in 1056mm 41,6in 630mm 24,8in 1526mm 60,1in 377mm 14,8in 3,1in 80mm 5,8in 147mm 144.5mm 5,7in 383.5mm 15,1in 528mm 20,8in 78,5mm 3,1in 107,5mm 4,2in 60mm 2,4in...
  • Page 16 CARAVAGGIO CR 8 oven technical data | double oven ø 80mm 2004mm 78,9in 1500mm 59,0in 1683mm 66,3in CR 8 double oven weight 1122mm 44,2in 520 kg - 1146 lb 2166mm 85,3in 60mm 2,4in packaging + complete CR 8 double oven weight...
  • Page 17 Caravaggio CR 8 oven + KCR8 hood technical data | hood + double oven 2056mm 80,9in 482mm 19,0in 1056mm 41,6in 630mm 24,8in 1526mm 60,1in 377mm 14,8in 3,1in 80mm 5,8in 147mm 144.5mm 5,7in 383.5mm 15,1in 528mm 20,8in 78,5mm 3,1in 107,5mm 4,2in...
  • Page 18 Caravaggio CR 8 oven technical data | triple oven ø 80mm 1500mm 59,04in 2004mm 78,91in 1683mm 66,26in 2,36in 60mm 1122mm 44,2in 2166mm 85,3in...
  • Page 19 Caravaggio CR 8 oven + KCR8 hood technical data | hood + triple oven 2056mm 80,95in 18,96in 630mm 24,78in 1056mm 41,57in 482mm 1526mm 60,05in 14,85in 377mm 3,1in 80mm 5,8in 147mm 2,36in 60mm 144.5mm 5,7in 528mm 20,8in 383.5mm 15,1in 78,5mm 3,1in...
  • Page 20 CARAVAGGIO CR 8 oven technical data | capacity PIZZA Ø 35 cm [Ø 13.78 in.] PIZZA Ø 50 cm [Ø 19.69 in.] TRAY 60x40 cm [23.62x15.75 in.] Ø PIZZAS HOURLY PRODUCTIVITY 765mm 30,1in 80 pizzas Ø 35 cm [Ø 13.78 in.] 36 pizzas Ø...
  • Page 21 Oven Comply with the stated measurements Support Supports for the Caravaggio CR8 oven are available upon re- quest from the Manufacturer, with a shaped lower shelf for in- serting accessories. If it is necessary to know further measurements of the support,...
  • Page 22: Installation

    INSTALLATION Symbols used in the manual and on Safety instructions • It is forbidden to install the oven in environments at risk of explosion. the labels applied to the machine • Read this guide carefully before installing the appli- • Installation or maintenance that fails to comply Indicates that caution is required when performing ance, and keep it with care in an accessible place for with the instructions in this manual may cause...
  • Page 23: Transport

    Caution, suffocation hazard! If left unattended, packaging could be potentially dangerous for both children and animals. Caution, hindrance hazard! If left unattended, packaging could hinder vehicles and installers during assembly operations. Fig.7 Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 24: Positioning

    Installation Positioning * minimum distance for the installation of the power cable Fig.8 The positioning room must comply with the instructions pro- vided on pages and 5. Comply with the measure- ments shown in the figure. Fig.9 min. The oven must be placed on a base, built by the Manufacturer 500 mm min.
  • Page 25: Serial Number Plate Reading

    (the extractor draught switch and switch are not supplied by the Manufacturer). In this type of installation, the fumes resulting from the open- ing of the door will not be extracted. Fig.11 Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 26: Electrical Connection

    Installation Electrical connection Fig.12 The electrical connection must be carried out ex- clusively by qualified personnel after reading the safety warnings at the beginning of the manual. Before connecting the oven, check that the sys- tems comply with the regulations in force in the country where it is going to be used and with the specifications indicated on the appliance rating plate on the RH side of the oven.
  • Page 27 If required, the cable must be replaced by the Dealer or its technical service or by a person with similar qualifications to prevent any risk. Electrical data tables on page Fig.13 Fig.14 Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 28: Wiring Diagrams

    Wiring diagrams AC 230 mod. CD T6,3AL250V Abbreviation Description CTRL Oven control board CTRL.SF Flue added board Fuses Safety contactor BF09-MC09 Top res. half power BF09-MC09 Top res. full power BF09-MC09 Bottom res. half power BF09-MC09 Bottom res. full power BF09-MC09 Cooking chamber lights Board cooling fan motor Flue opening motor...
  • Page 29 Board cooling fan motor Flue opening motor PW.B Power board RA1,2,3 Top heating elements RB1,2,3 Bottom heating elements Safety thermostat Klixon cooling fan Terminal board Thermocouple Light transformer 50VA, 230/12Vac Transformer 20VA, 230/12Vac Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 30 Wiring diagrams AC 3N 400 N T S R mod. CD Θ L2 L3 L1 L2 L3 T2 T1 T2,5AL250V T1 T2 T3 T2 T3 L3 L2 L1 (4) (5) (6) T2,5AL250V 230 Vac 50/60 hz 0,11/0,09 A Abbreviation Description CTRL Oven control board CTRL.SF...
  • Page 31 Flue opening motor PW.B Power board RA1,2,3 Top heating elements MICROPROCESSOR RS485 GND RB1,2,3 Bottom heating elements Safety thermostat Klixon cooling fan 12Vcc Terminal board Thermocouple T1,6AL250V Light transformer 50VA, 230/12Vac Transformer 20VA, 230/12Vac Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 32 Wiring diagrams AC 3 208 mod. CD L1 L2 L3 L1 L2 L3 Abbreviation Description CTRL Oven control board L1 L2 L3 L1 L2 L3 CTRL.SF Flue added board Fuses Safety contactor BF09-MC09 Top res. half power BF09-MC09 Top res. full power BF09-MC09 Bottom res.
  • Page 33 Board cooling fan motor Flue opening motor PW.B Power board RA1,2,3 Top heating elements RB1,2,3 Bottom heating elements Safety thermostat Klixon cooling fan Terminal board Thermocouple Light transformer 50VA, 230/12Vac Transformer 20VA, 230/12Vac Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 34: Pre-Testing And Final Inspection

    Installation Pre-testing and final inspection √ Positioning checks Reference chapter on page... The oven is checked and tested in the Manufacturer’s plant be- IS the installation room adequate and compliant with regulations? (correct ven- fore being delivered to the customer. tilation, maximum/minimum temperature, etc.) The “production process check sheet”...
  • Page 35: Error Messages Mod. Cd

    If you touch the pop-up, it disappears but remains as a warning in the taskbar. We recommend warns the user that cleaning under the refractory surface is required. cleaning under the refractory surface is carried out as soon as possible. W5... messages about the notes Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 36: Procedures

    PROCEDURES e-mail Firmware update DOWNLOADING THE FIRMWARE UPDATE HD Mario Rossi Open your email and download the zipped folder received from the Manufacturer/Dealer Backup Open the zipped folder quickly clicking twice on it: inside it you will find the 6 files required for the update. Insert into your computer a USB stick, empty and format- ted FAT32...
  • Page 37 Remove the side panel and access the board behind the Touch the protected parameters. panel Confirm with Insert the stick on which the 6 update files were copied into the USB port located behind the Touch board. Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 38 Procedures | FIRMWARE UPDATE PLEASE WAIT UPDATE STARTING v0 . 2 UPDATE FOUND PLEASE WAIT ERASE IN PROGRESS WRITE IN PROGRESS 27/04/2018 13:00 27/04/2018 13:00 27/04/2018 13:00 19/05/2022 13:00 Aggiornamento Firmware Importa Lingue Parametri Test I/0 Parametri Test I/0 Parametri Test I/0 Importa Ricette Aggiornamento pronto...
  • Page 39: Maintenance Hours Reset (Counter Reset)

    Versioni Ore di rmware lavoro AVVISO PULIZIA SOTTO LE PIETRE Touch the warning screen to continue with the operation. With the oven in stand-by, touch the Touch the WORK HOURS icon. SERVICE icon. Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 40 Procedures | MAINTENANCE HOURS RESET (COUNTER RESET) 27/04/2018 13:00 27/04/2018 13:00 27/04/2018 13:00 27/04/2018 13:00 27/04/2018 13:00 27/04/2018 Orev di Lavoro 27/04/2018 Data e ora Lingua Ore funzionamento: 07 (h) Ore da ultima manutenzione Data e ora Lingua Data e ora Lingua Data e ora Lingua...
  • Page 41: Maintenance And Cleaning

    While reinserting the bricks, be careful not to pinch your fingers. Replacement refractory bricks can be obtained from the Manufacturer. PYROLYSIS If manual cleaning is not enough, use the function see page Fig.16 Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 42 Close the flue touching the relative key. chamber temperature to 400 °C - 752 °F Set the Acting on the “MIN” and “MAX” keys, set both the CUPPONE bottom powers to MAX. Switch the lights of the cooking chamber off. When the temperature is reached, switch the oven off with...
  • Page 43: Replacing Components

    Never touch the bulb glass with your bare hands; always wear gloves. Never switch the oven on without having refitted the bulb pro- tective glass; replace it straight away if it breaks. Fig.21 Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 44 Maintenance and cleaning | replacing components REPLACING THE REFRACTORY BRICKS Fig.22 REPLACING THE DOOR HANDLE Fig.23 Fig.22 Fig.23...
  • Page 45 Ed. 0423- 70702521 REV07 Caravaggio - Installation...
  • Page 46 CUPPONE since 1963 CUPPONE S.R.L. Via Sile, 36 31057 Silea (TV) - ITALY T +39 0422 361143 F +39 0422 360993 info@cuppone.com - www.cuppone.com...
