StarTech.com ST1030USBM Instruction Manual

Instruction manual

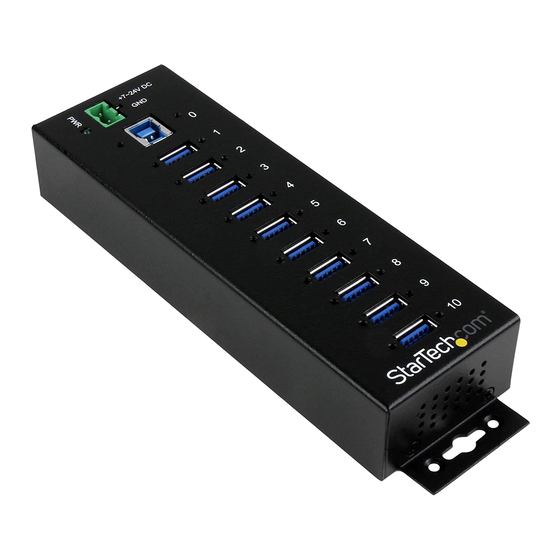

10-Port Industrial USB 3.0 Hub - ESD and Surge Protection
ST1030USBM
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging contents
• 1 x 10-port industrial USB 3.0 hub
• 1 x USB 3.0 host cable
• 1 x DIN rail mounting kit
• 1 x terminal block (2-wire)
• 1 x instruction manual
System requirements
• USB-enabled host computer with an available USB 3.0 port
• 2-wire 7~24V DC power source
• OS independent
Note: This hub can only be used with terminal block power input. A
standard AC power adapter is not included or supported.
Operating system requirements are subject to change. For the latest
requirements, please visit www.startech.com/ST1030USBM.

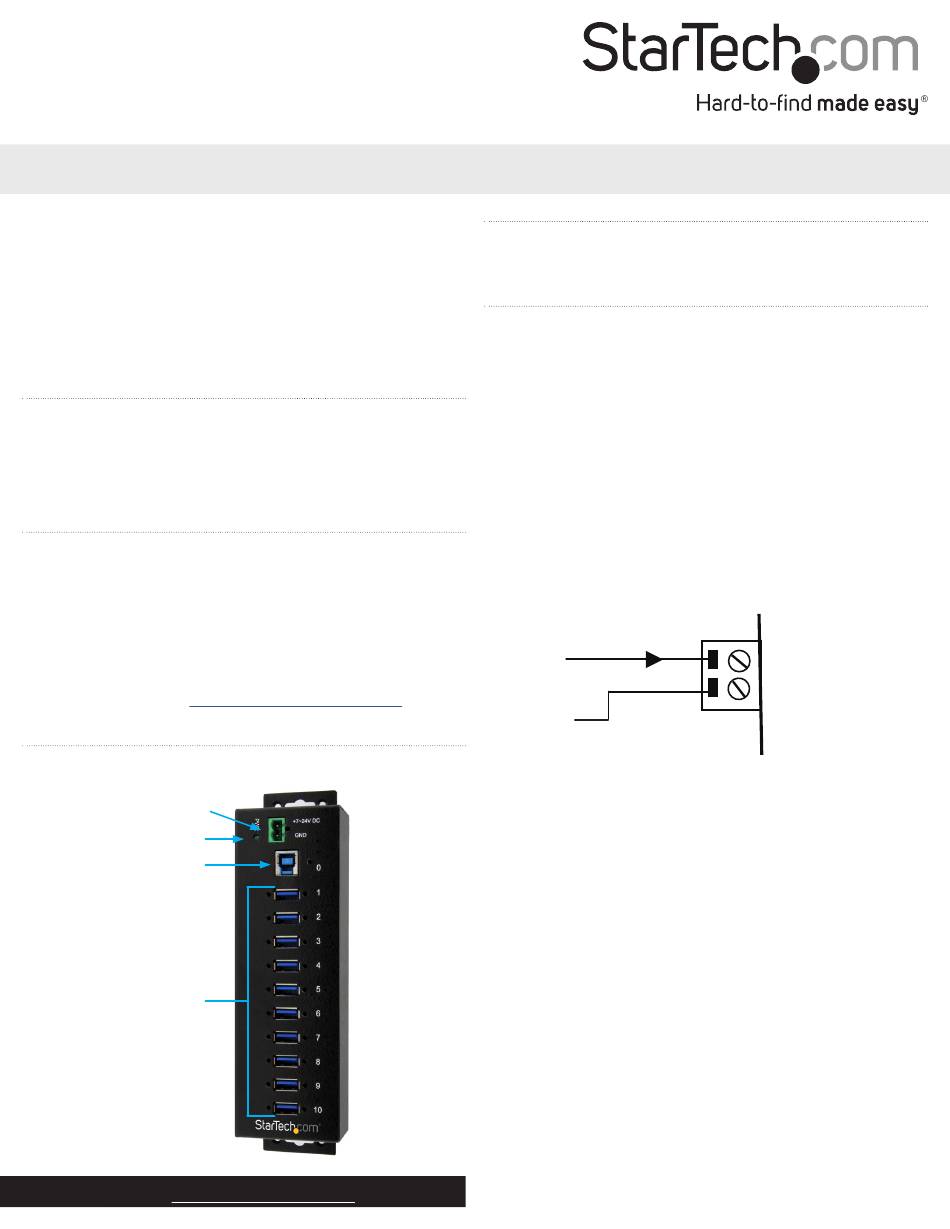

Product diagram
Front view
2-wire terminal block included
(7~24V DC input)
Power LED
USB 3.0 host port
USB 3.0 hub ports
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/ST1030USBM.
About USB 3.0 and USB 3.1 Gen1
USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard
offers speeds up to 5 Gbps.
Installation
You must use the terminal block with your external power source to
ensure sufficient power is delivered to each USB 3.0 port.
Connect the hub to a terminal block power source
1. If the terminal block connector is already inserted into the hub,
remove it from the hub.
2. Loosen the two screws on the terminal block connector using a
small Phillips or flat-head screwdriver.
3. Connect the power and ground wires from your DC power source
to the proper terminal block connectors and fasten the screws.
The terminals are marked on the hub's casing.
Note: Ensure that the polarity of the input power is correctly
matched with the terminal block pins to ensure proper function (see
the diagram below).
4. Reinsert the terminal block into the hub. The Power LED on the
hub should light up green.
Connect the hub to your host computer and
peripherals
1. Connect the hub to an available USB port on your computer
using the provided USB 3.0 A - B cable. Your computer's operating
system should detect and automatically install the hub.
2. Connect your USB peripherals to the USB 3.0 hub ports.
Note: If the hub is connected to a USB 2.0 host port, it will operate at
USB 2.0 speeds.
*actual product may vary from photos
+
-
+7~24V
GND
Manual Revision: 07/23/2015
