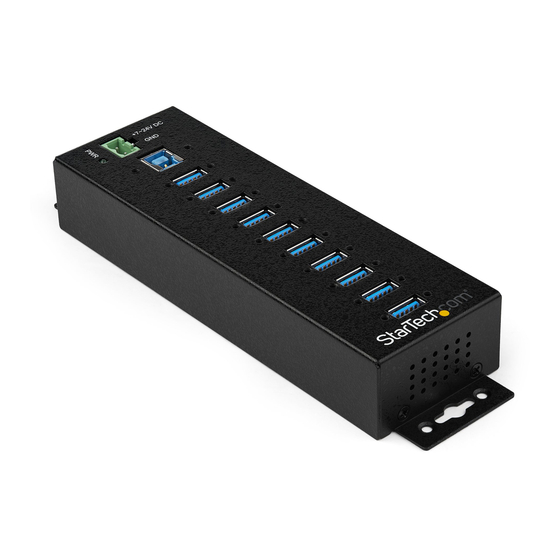

StarTech.com HB30A10AME Quick Start Manual

10-Port Industrial USB 3.0 (5 Gbps) Hub | USB 3.2 Gen 1 to 10x USB-A | ESD & Surge Protection
:
Product ID
1
3 4
Component
• Used to connect an external DC Power Source
1 2-Wire Terminal Block
(7~24V DC Input) to the Hub.
• Used to securely lock a USB Device to the
USB-A Port on the Hub.
2 Screw Locks (x 10)
• Screw Lock Dimensions: Center to center 19
mm, thread size 4 - 40.
• Green: Indicates that the Hub is receiving
3 Power LED
power.
• Used to connect a Host Computer to the Hub.
4 USB-B Host Port
• Screw Lock Dimensions: Center to center 24
mm, thread size 4 - 40.
• Used to connect USB Devices ( x 10) to the
Hub.
5 USB-A Ports (x 10) • Used to charge connected USB-A Devices.
• USB-A Ports support surge and 15KV ESD
(Electrostatic Discharge) Protection.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
* Actual product may vary from photos
5
Function
Requirements
For the latest requirements, please visit
startech.com/ST1030USBM
• Phillips Head Screwdriver
• Writing Utensil
• Level
• Mounting Screws (x 2)
Installation
It is recommended to use an external DC Power Source (+7 - 24V DC)
connected to the 2-Wire Terminal Block to ensure suffi cient power/current is
delivered to each USB-A Port on the Hub.
Powering the Hub Using the Universal Power Adapter
1. Connect the Universal Power Adapter to the Terminal Block and to a AC
Electrical Outlet.
Universal power adapter included with
include power adapter (
2. Connect a USB-B to USB Cable (the end will depend on USB Port you are
connecting to) to the USB-B Host Port and to a USB port on the Host Computer.
3. The Host Computer's Operating System should detect the Hub and automatically
install it.
4. Connect your USB Devices to the USB-A Ports (x 10) on the Hub.
Powering the Hub Using the 2-Wire Terminal Block
1. Remove the Terminal Block Connector Housing from the Hub's Casing.
2. Using a small screwdriver (Phillips or Flat Head), loosen the screws on the Terminal
Block Connectors.
3. Connect the Power and Ground Wires from your DC Power Source (+7 - 24V DC)
to the proper Terminal Block Connectors, the terminals are marked on the Hub's
Casing.
Quick-Start Guide
www.startech.com/HB30A10AME or www.
; does not
).
Manual Revision: August 16, 2024 3:29 PM
