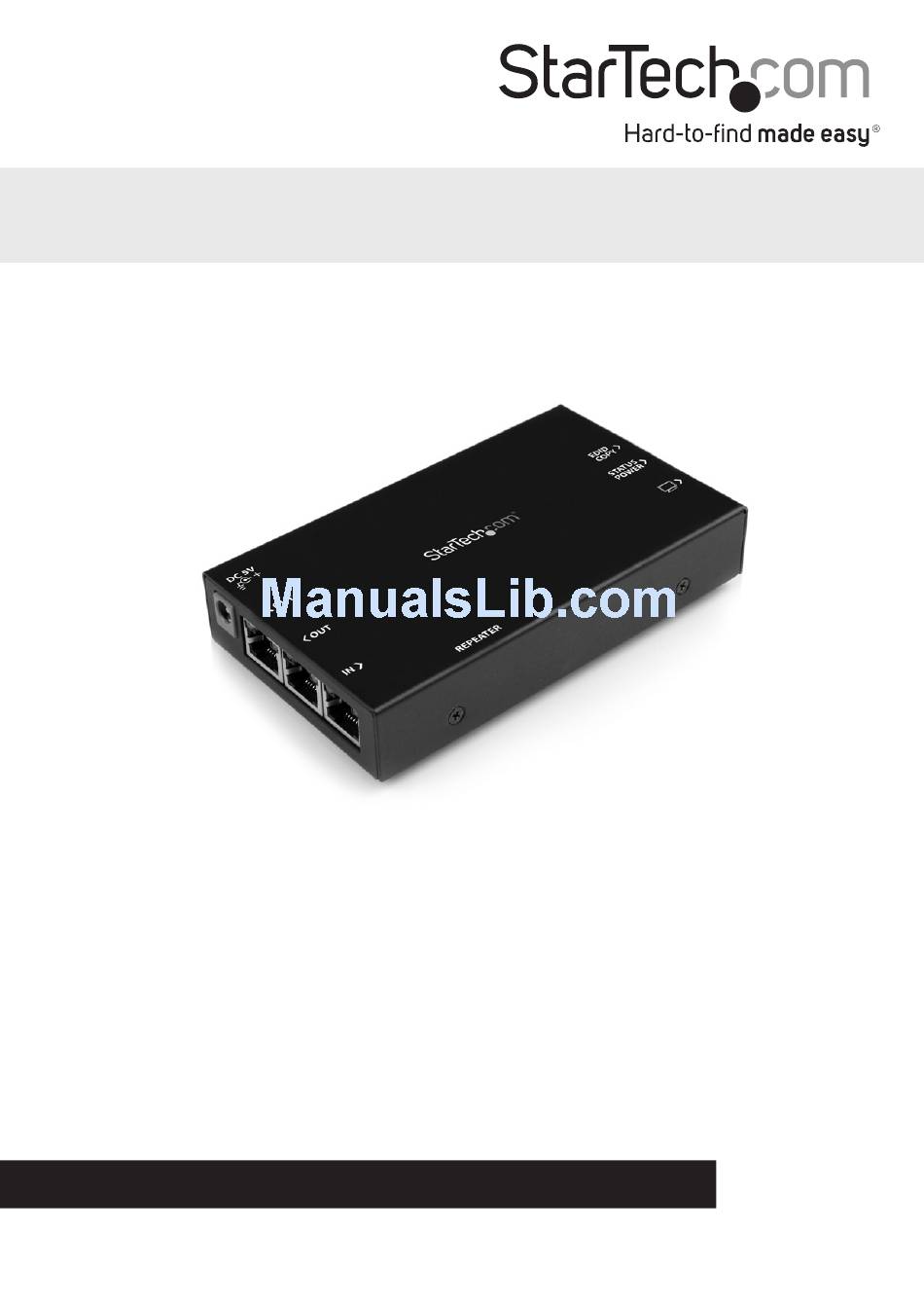

HDMI® Over CAT5/6 Repeater for
ST12MHDDC
ST12MHDDCRP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/16/2013
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ST12MHDDCRP
Summary of Contents for StarTech.com ST12MHDDCRP
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/16/2013...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Preparing Your Site ........................... 4 Hardware Installation ..........................5 Specifications ..................7 Technical Support ..................8 Warranty Information ................8 Instruction Manual... -
Page 4: Introduction
Extender Kit to add additional displays and extend the HDMI® over Cat 5/6 signal. With 2 RJ45 outputs per unit, each repeater allows you to add a display, and also daisy-chain the signal to 2 additional ST12MHDDCRP repeaters (sold separately) at up to 330 feet (100 meters) at each level. - Page 5 ST12MHDDCRP Repeater Unit Front View of Repeater Back View of Repeater 1. HDMI® Out 1. Power jack 2. Power Status LED 2. HDMI® Out Link #1 (RJ-45 Connector) 3. Link Status LED 3. HDMI® Out Link #2 (RJ-45 Connector) 4. EDID Copy Button 4.
- Page 6 Receiver Unit Front View of Receiver Back View of Receiver 1. Power Jack 1. HDMI® IN 2. HDMI® Out Link (RJ-45 Connector) 2. Power Status LED 3. Link Status LED Instruction Manual...
-
Page 7: Preparing Your Site
Preparing Your Site NOTE: This device will only work with the ST12MHDDC HDMI Extender kit. Please review site preparation steps from the ST12MHDDC manual prior to installing additional Repeaters. 1. Determine where the Repeater/Display will be installed in relation to the ST12MHDDC HDMI Extender kit (sold separately) and place/mount the display appropriately. -
Page 8: Hardware Installation
Hardware Installation NOTE: This device will only work with the ST12MHDDC HDMI® Extender kit. Please review the Hardware Installation steps from the ST12MHDDC manual prior to installing additional Repeaters. 1. Install RJ-45 terminated Cat5/6 Ethernet Cable a) Connect an RJ-45 terminated Cat5/6 Ethernet cable to the HDMI® Out Link (RJ-45 Connector) on the local Unit (Transmitter or Repeater). - Page 9 NOTE: These steps can be repeated at each level when adding additional Repeaters up to 30 levels. Each Repeater has two HDMI® out Links (RJ-45 Connectors) allowing for the same signal to go in 2 different directions at each level. 3.
-
Page 10: Specifications
Specifications Input Connectors 1x RJ-45 Female 1x RJ-45 Female Output Connectors 1x HDMI (19 pin) Female Max Distance 100 m / 330 ft Maximum Digital Resolutions 1920x1200 @60Hz 1920 x 1200 Supported Resolutions 1920 x 1080 1600 x 1200 Wide Screen Supported Audio Specifications 7.1 Surround Sound Input Voltage... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
