- Page 1 Mountable USB 2.0 Metal Hub 4 Ports ST4200USBM...
- Page 2 StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowl- edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Features ..................1 Package Contents ...............1 Connector Layout ................2 Hardware Installation ..............3 Checking the Hub Installation ............4 Environmental Specifications ............4 Technical Support ................. 5 Warranty Information ..............5... -
Page 4: Introduction

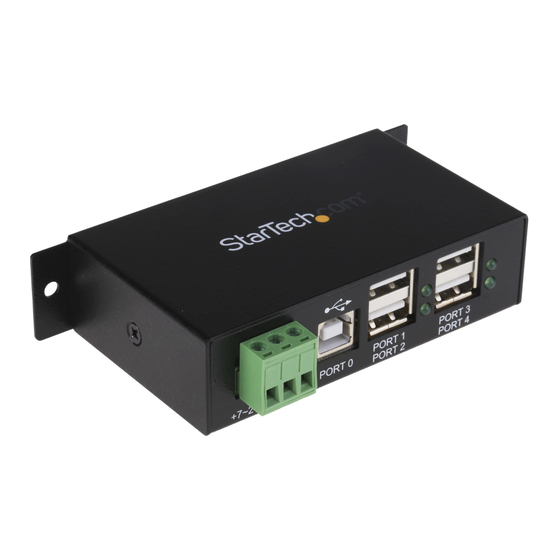

Instruction Manual Introduction Thank you for purchasing a StarTech.com ST4200USBM High-Speed 4-Port USB2.0 hub. This ruggedly built hub is ideal for industrial environ- ments and can be wall-mounted or installed onto a DIN rail for convenient access to the ports. This four port industrial hub can be bus-powered or self powered, with a three wire terminal block connector (7-24V). -
Page 5: Connector Layout
Instruction Manual Connector Layout Activity LEDs for Power LED Downstream Ports Upstream Port Connector Self Power Input Downstream Port Connectors Connectors Activity LEDs for Downstream Ports: These 4 LED indicators will blink whenever the USB ports are transferring data. Upstream Port Connector: Type-B USB connector for upstream USB connection. -
Page 6: Hardware Installation
Instruction Manual Hardware Installation Use static electricity discharge precautions Eliminate the potential for static discharge from any objects that the hub may come in contact with before the installation. This can be accom- plished by touching a bare metal chassis rail after you have turned off the power. -
Page 7: Checking The Hub Installation
Instruction Manual Checking the Hub Installation To check the USB hub installation in Windows Device Manager, follow these steps: Click Start Click Control Panel Click System Click Device Manager Double click Universal Serial Bus Controller Double click Generic USB HUB The message should show that the device is working properly Environmental Specifications Operating temperature:... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
