BrainLAB Curved Cup Impactor "Universal"
60907-41
1
4
6
7
BrainLAB AG
Customer Support:
Kapellenstraße 12
support@brainlab.com
85622 Feldkirchen
North/ South America: +1 800 597 5911
Germany
Europe&Rest of the world: +49 89 99 15 68 44
8
page 1/11
BL-IL-60907-41-Rev4
2
5
9
3
10

Advertisement

loading
Need help?

Need help?

Do you have a question about the Universal 60907-41 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Brainlab Universal 60907-41

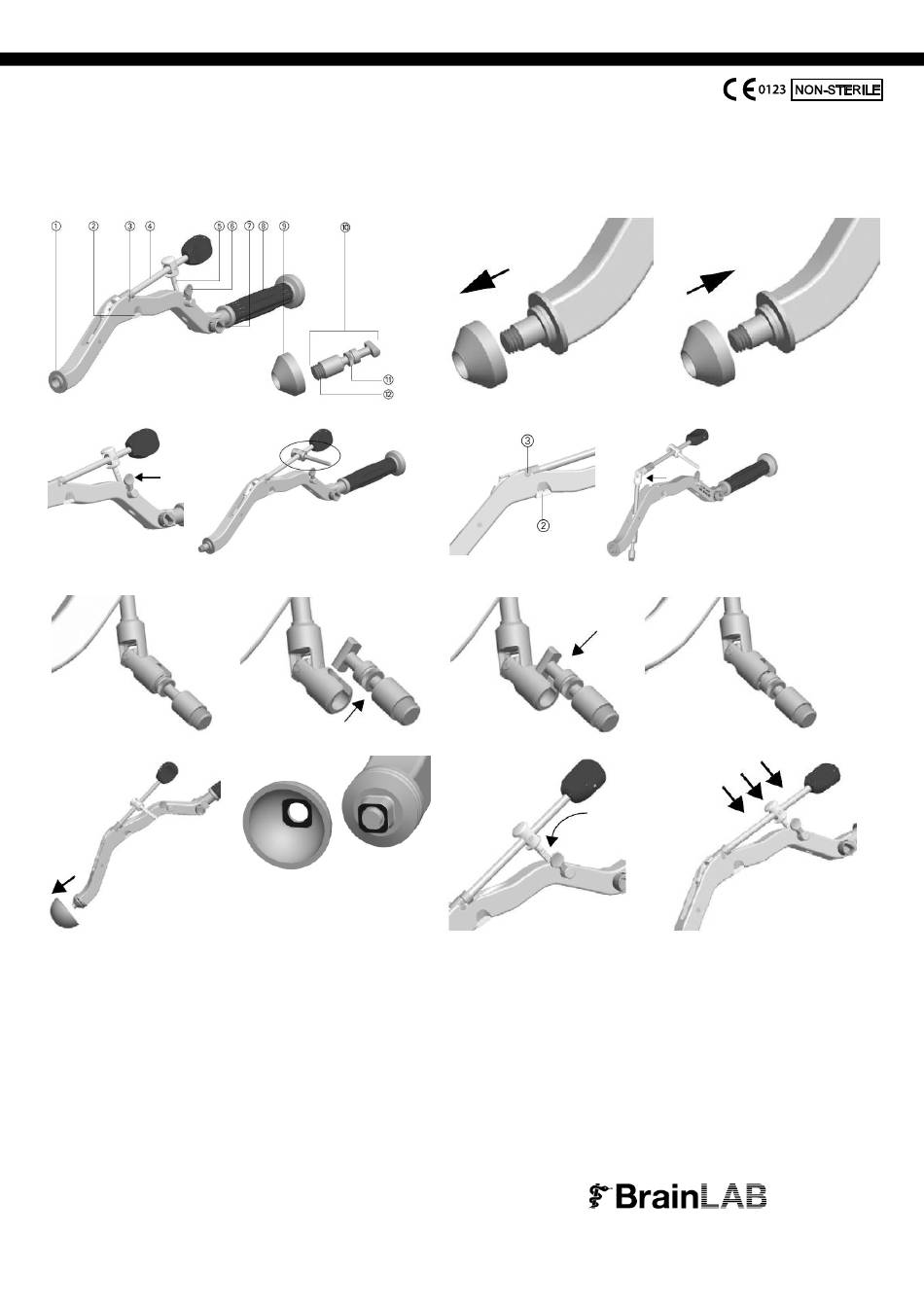

  • Page 1 BrainLAB Curved Cup Impactor “Universal” 60907-41 BrainLAB AG Customer Support: Kapellenstraße 12 support@brainlab.com page 1/11 85622 Feldkirchen North/ South America: +1 800 597 5911 BL-IL-60907-41-Rev4 Germany Europe&Rest of the world: +49 89 99 15 68 44...
