Fuses And Circuits; Fuse Panel Located Behind The Instrument Panel - Subaru 2006 Forester Owner's Manual

12-6
Specifications

Fuses and circuits

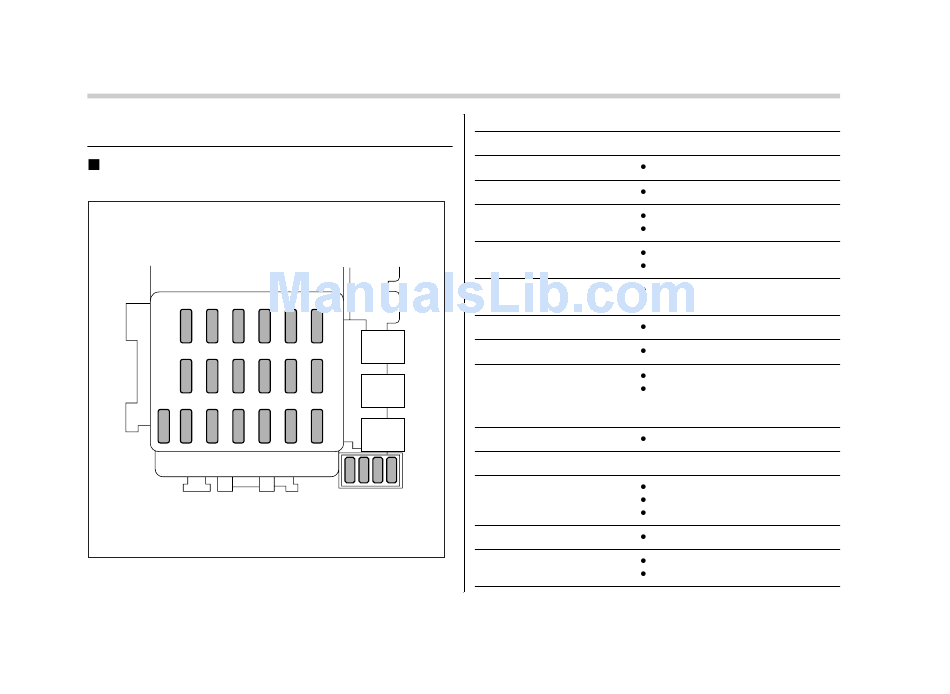

Fuse panel located behind the instrument pan-
el
1 2 3 4
7 8 9 10
13 14 15 16 17
5 6
11 12
18 19
20 21 22 23
C00000
Fuse panel Fuse rating
1 15A Heater fan
2 15A Heater fan
3 15A Power door lock
Remote keyless entry
4 15A Cigarette lighter
Remote controlled rear view mirrors
5 10A Tail light
Parking light
6 15A SRS airbag
7 15A Fog light
8 30A ABS
Vehicle Dynamics Control system
(models with Vehicle Dynamics
Control system only)
9 15A Radio
10 Empty
11 15A Engine ignition system
SRS airbag
AT control system
12 10A Illumination brightness control
13 20A Wiper deicer
Outside mirror defogger
Circuit
