Foreword

Congratulations on choosing a SUBARU vehicle. This Owner's

Manual has all the information necessary to keep your SUBARU in

excellent condition and to properly maintain the emission control

system for minimizing emission pollutants. We urge you to read

this manual carefully so that you may understand your vehicle and

its operation. For information not found in this Owner's Manual,

such as details concerning repairs or adjustments, please contact

the dealer from whom you purchased your SUBARU or the nearest

SUBARU dealer.

The information, specifications and illustrations found in this man-

ual are those in effect at the time of printing. FUJI HEAVY INDUS-

TRIES LTD. reserves the right to change specifications and de-

signs at any time without prior notice and without incurring any ob-

ligation to make the same or similar changes on vehicles previous-

ly sold. This Owner's Manual applies to all models and covers all

equipment, including factory installed options. Some explanations,

therefore may be for equipment not installed in your vehicle.

Please leave this manual in the vehicle at the time of resale. The

next owner will need the information found herein.

FUJI HEAVY INDUSTRIES LTD., TOKYO, JAPAN

is a registered trademark of FUJI HEAVY INDUSTRIES LTD.

Table of Contents

Chapters

Table of Contents

Need help?

Do you have a question about the 2006 Forester and is the answer not in the manual?

Questions and answers

Summary of Contents for Subaru 2006 Forester

Page 1 Foreword Congratulations on choosing a SUBARU vehicle. This Owner’s Manual has all the information necessary to keep your SUBARU in excellent condition and to properly maintain the emission control system for minimizing emission pollutants. We urge you to read this manual carefully so that you may understand your vehicle and its operation.
Page 2 This manual describes the following vehicle types. 000135 * The illustrated vehicle is one of the FORESTER series.
Page 4 Warranties Warranties for U.S.A. All SUBARU vehicles distributed by Subaru of America, Inc. and sold at retail by an authorized SUBARU dealer in the United States come with the following warranties: SUBARU Limited Warranty Emission Control Systems Warranty Emissions Performance Warranty...
Page 5 This chapter informs you how to keep your SUBARU looking good. Chapter 11: Maintenance and service This chapter informs you when you need to take your SUBARU to the dealer for scheduled maintenance and informs you how to keep your SUBARU running prop- erly.
Page 6: Vehicle Symbols
Vehicle symbols There are some of the symbols you may see on your vehicle. Mark Name CAUTION Power door lock Passenger’s windows lock Fuel Front fog lights Parking lights Hazard warning flasher Cigarette lighter Engine hood Mark Name Seat heater Child restraint top tether an- chorages Child restraint lower anchor-...
Page 7 Mark Name Outside mirror defogger Rear window defogger Air recirculation Engine oil Washer Door lock (Transmitter) Door unlock (Transmitter) Safety precautions when driving Seatbelt and SRS airbag All persons in the vehicle should fasten their seatbelts BEFORE the vehicle starts to move. Otherwise, the possibility of serious injury becomes greater in the event of a sudden stop or accident.
Page 8: Child Safety
Child safety Never hold a child on your lap or in your arms while the vehicle is moving. The passenger cannot protect the child from injury in a collision, because the child will be caught between the passenger and objects inside the vehicle. While riding in the vehicle, infants and small children should always be placed in the REAR seat in an...
Page 9: Engine Exhaust Gas (Carbon Monoxide)
Engine exhaust gas (carbon monoxide) Never inhale engine exhaust gas. Engine exhaust gas contains car- bon monoxide, a colorless and odorless gas which is dangerous, or even lethal, if inhaled. Always properly maintain the en- gine exhaust system to prevent engine exhaust gas from entering the vehicle.
Page 10 have a medical condition that requires you to take drugs, please consult with your doctor. Never drive if you are under the influence of any illicit mind-altering drugs. For your own health and well-being, we urge you not to take illegal drugs in the first place and to seek treatment if you are addicted to those drugs.
Page 11: California Proposition 65 Warning
Driving at high speeds with exces- sively low tire pressures can cause the tires to deform severely and to rapidly become hot. A sharp in- crease in temperature could cause tread separation, and destruction of the tires. The resulting loss of vehi- cle control could lead to an acci- dent.
Page 12: Table Of Contents
Table of contents Seat, seatbelt and SRS airbags Keys and doors Instruments and controls Climate control Audio Interior equipment Starting and operating Driving tips In case of emergency Appearance care Maintenance and service Specifications Consumer information and Reporting safety defects Index...
Page 13: Illustrated Index
Illustrated index Exterior 000194 Headlight switch (page 3-18) Replacing bulbs (page 11-43) Engine hood (page 11-4) Wiper switch (page 3-23) Roof rails (page 8-13) Door locks (page 2-4) Tire pressure (page 11-30) Flat tires (page 9-3) Tire chains (page 8-10) 10) Front fog light button (page 3-21) 11) Tie-down/Towing hooks (page 9-11)
Page 14: Tie-Down/Towing Hooks (Page
Rear window defogger button (page 3-25) Rear gate (page 2-20) Child safety locks (page 2-17) Fuel filler lid and cap (page 7-3) Tie-down/Towing hook (page 9-11) 000121 – CONTINUED –...
Page 15 Interior Passenger compartment area 000122 Lower anchorage for child restraint system (page 1-31) Seatbelt (page 1-10) Moonroof (page 2-21) Parking brake lever (page 7-24) Front seat (page 1-2) Rear seat (page 1-7)
Page 16 Cup holder (page 6-7) Center console (page 6-4) Glove box (page 6-4) Cigarette lighter socket (page 6-9) Ashtray (page 6-11) 000123 – CONTINUED –...
Page 17: Instrument Panel
Instrument panel 000070 Door locks (page 2-4) Outside mirror switch (page 3-28) Light control lever (page 3-18) Combination meter (page 3-6) Wiper control lever (page 3-22) Hazard warning flasher switch (page 3-6) Audio (page 5-1) Gear shift lever (MT) (page 7-9)/Se- lector lever (AT) (page 7-10) Climate control (page 4-1) 10) Cruise control (page 7-26)
Page 18 Light control and wiper control levers/switches Parking light switch (page 3-21) Windshield wiper (page 3-23) Mist (page 3-24) Windshield washer (page 3-24) Rear window wiper and washer switch (page 3-24) Wiper control lever (page 3-23) Illumination brightness control (page 3-20) Light control lever (page 3-18) Headlight ON/OFF (page 3-18) 10) Headlight flasher High/Low beam...
Page 19: Combination Meter
Combination meter U.S.-spec. models AT vehicles 000124 Fuel gauge (page 3-7) Temperature gauge (page 3-8) Speedometer (page 3-6) Tachometer (page 3-7) Trip meter A/B selection and trip meter reset knob (page 3-6) Odometer and trip meter (page 3-6) Outside temperature indicator (page 3-8) Select lever position indicator (page 3-15)
Page 20 X, XS, L.L.Bean 000125 Fuel gauge (page 3-7) Temperature gauge (page 3-8) Speedometer (page 3-6) Tachometer (page 3-7) Trip meter A/B selection and trip meter reset knob (page 3-6) Odometer and trip meter (page 3-6) Outside temperature indicator (page 3-8) Select lever position indicator (page 3-15) –...
Page 21 MT vehicles 000126 Fuel gauge (page 3-7) Temperature gauge (page 3-8) Speedometer (page 3-6) Tachometer (page 3-7) Trip meter A/B selection and trip meter reset knob (page 3-6) Odometer and trip meter (page 3-6) Outside temperature indicator (page 3-8)
Page 22 X, XS, L.L.Bean 000127 Fuel gauge (page 3-7) Temperature gauge (page 3-8) Speedometer (page 3-6) Tachometer (page 3-7) Trip meter A/B selection and trip meter reset knob (page 3-6) Odometer and trip meter (page 3-6) Outside temperature indicator (page 3-8) –...
Page 23 Canada-spec. models AT vehicles 000128 Fuel gauge (page 3-7) Temperature gauge (page 3-8) Speedometer (page 3-6) Tachometer (page 3-7) Trip meter A/B selection and trip meter reset knob (page 3-6) Odometer and trip meter (page 3-6) Outside temperature indicator (page 3-8) Select lever position indicator (page 3-15)
Page 24 X, XS, L.L.Bean 000129 Fuel gauge (page 3-7) Temperature gauge (page 3-8) Speedometer (page 3-6) Tachometer (page 3-7) Trip meter A/B selection and trip meter reset knob (page 3-6) Odometer and trip meter (page 3-6) Outside temperature indicator (page 3-8) Select lever position indicator (page 3-15) –...
Page 25 MT vehicles 000130 Fuel gauge (page 3-7) Temperature gauge (page 3-8) Speedometer (page 3-6) Tachometer (page 3-7) Trip meter A/B selection and trip meter reset knob (page 3-6) Odometer and trip meter (page 3-6) Outside temperature indicator (page 3-8)
Page 26 X, XS, L.L.Bean 000131 Fuel gauge (page 3-7) Temperature gauge (page 3-8) Speedometer (page 3-6) Tachometer (page 3-7) Trip meter A/B selection and trip meter reset knob (page 3-6) Odometer and trip meter (page 3-6) Outside temperature indicator (page 3-8) –...
Page 27 Warning and indicator light Mark Name Page Seatbelt warning light SRS airbag system 3-10 warning light Front passenger’s frontal airbag ON indi- 3-10 cator light Front passenger’s frontal airbag OFF in- 3-10 dicator light CHECK ENGINE warning light/Malfunc- 3-11 tion indicator lamp Charge warning light 3-12 Oil pressure warning...
Page 28: Tire Changing Tools
Tire changing tools Jack (page 9-15) Jack handle (page 9-15) Spare tire (page 9-3) 000132 – CONTINUED –...
Page 29: Cargo Area Cover
Cargo area cover Cargo area cover (page 6-12) Cargo tie-down hook (page 6-14) Accessory power outlet (page 6-8) Shopping bag hook (page 6-13) 000195...
Page 30: Seat, Seatbelt And Srs Airbags
*SRS airbag (Supplemental Restraint System airbag) ... 1-36 Vehicle with driver’s and front passenger’s SRS airbags and lap/shoulder restraints ... Subaru advanced frontal airbag system ... SRS side airbag (if equipped) ... SRS airbag system monitors ... SRS airbag system servicing ...
Page 31: Front Seats
Seat, seatbelt and SRS airbags Front seats Seat, seatbelt and SRS airbags Never adjust the seat while driv- ing to avoid the possibility of loss of vehicle control and of personal injury. Before adjusting the seat, make sure the hands and feet of rear seat passengers are clear of the adjusting mechanism.
Page 32: Manual Seat
According to accident statistics, children are safer when properly re- strained in the rear seating posi- tions than in the front seating posi- tions. For instructions and precau- tions concerning child restraint sys- tems, see the “Child restraint sys- tems” section in this chapter. Manual seat Fore and aft adjustment 100595...
Page 33: Power Seat (If Equipped)
Seat, seatbelt and SRS airbags Seat height adjustment (driver’s seat) 100597 1) Turn the dial backward to lower the seat. 2) Turn the dial forward to raise the seat. Use the adjusting dial to adjust the height of the seat. Power seat (if equipped) Fore and aft adjustment 100598...
Page 34: Lumbar Support (Driver's Seat Only)
To adjust the seat height, pull up or push down the rear end of the control switch. Reclining the seatback 100601 To adjust the angle of the seatback, move the control switch forward or backward. Lumbar support (Driver’s seat only) 100545 Pull the lever forward or backward.
Page 35: Active Head Restraint
If your vehicle is involved in a rear-end collision, have an autho- rized SUBARU dealer inspect the active head restraints. The active head restraints may not operate in the event the vehi- cle experiences only a slight im- pact in the rear.
Page 36: Rear Seats
There is a possibility that people with delicate skin may suffer slight burns even at low tempera- tures if he/she uses the seat heat- er for a long period of time. When using the heater, always be sure to warn the persons concerned. Do not put anything on the seat which insulates against heat, such as a blanket, cushion, or...
Page 37: Folding Down The Rear Seatback
Seat, seatbelt and SRS airbags Rear windows side seating position The head restraint is not intended to be used at the lowest position. Be- fore sitting on the seat, raise the head restraint to the click position depending on your sitting height. 100098 To raise the head restraint, pull it up.
Page 38: Armrest (If Equipped)
100095 100096 1. Lower the head restraints. 2. Unlock the seatback by pulling the re- lease knob and then fold the seatback down. To return the seatback to its original posi- tion, raise the seatback until it locks into place and make sure that it is securely locked.
Page 39: Seatbelts
1-10 Seat, seatbelt and SRS airbags Seatbelts Seatbelt safety tips All persons in the vehicle should fasten their seatbelts BEFORE the vehicle starts to move. Otherwise, the possibility of serious injury becomes greater in the event of a sudden stop or accident. All belts should fit snugly in order to provide full restraint.
Page 40: Emergency Locking Retractor (Elr)
cording to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions. Never allow a child to stand up or kneel on the seat. If the shoulder portion of the belt crosses the face or neck, adjust the shoulder belt anchor height (window-side seating posi- tions only) and then if necessary move the...
Page 41: Seatbelt Warning Light And Chime
ON next time, howev- er, the complete sequence of warning operation resumes. For further details about canceling the warning operation, please contact your SUBARU dealer. Fastening the seatbelt Never use a belt that is twisted or reversed. In an accident, this can increase the risk or severity of in- jury.
Page 42 Do not put cushions or any other materials between occupants and seatbacks or seat cushions. If you do so, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will in- crease, and both can result in se- rious internal injury or death.
Page 43 1-14 Seat, seatbelt and SRS airbags Adjusting the front seat shoulder belt anchor height 100104 The shoulder belt anchor height should be adjusted to the position best suited for the driver/front passenger. To lower the anchor height, push the re- lease button and slide the anchor down.
Page 44 100103 4. To make the lap part tight, pull up on the shoulder belt. 5. Place the lap belt as low as possible on your hips, not on your waist. Adjusting the rear seat shoulder belt anchor height (window-side seating positions only) 100104 The shoulder belt anchor height should be...
Page 45 1-16 Seat, seatbelt and SRS airbags Rear center seatbelt 100603 1) Center seatbelt tongue plate 2) Connector (tongue) 3) Connector (buckle) 4) Center seatbelt buckle 100108 Fastening the seatbelt with the web- bing twisted can increase the risk or severity of injury in an accident. When fastening the belt after it is pulled out from the retractor, espe- cially when inserting the connec-...
Page 46 plate rearward. 100111 2. Pull out the seatbelt slowly from the overhead retractor. 100604 1) Seatbelt comfort guide 3. Pass the seatbelt through the seatbelt comfort guide located beside the head re- straint. 100113 4. After confirming that the webbing is not twisted, insert the connector (tongue) at- tached at the webbing end into the buckle on the right-hand side until a click is heard.
Page 47 1-18 Seat, seatbelt and SRS airbags 7. Place the lap belt as low as possible on your hips, not on your waist. Unfastening the seatbelt 100116 Push the release button of the center seatbelt buckle (on the left-hand side) to unfasten the seatbelt.
Page 48: Seatbelt Maintenance
If the front seatbelts are not long enough to permit the tongue plate to engage with the seatbelt buckle, an optional seatbelt extender is available from your SUBARU dealer. When ordering an extender, only order one particularly designed for your vehicle.
Page 49: Front Seatbelt Pretensioners
1-20 Seat, seatbelt and SRS airbags Failure to follow these instructions and warnings could reduce the ef- fectiveness of the seatbelt and re- sult in more serious injury in the event of a collision. Never use the extender when the belt itself is long enough to permit it to be buckled properly.
Page 50 If either front seatbelt does not re- tract or cannot be pulled out due to a malfunction or activation of the preten- sioner, contact your SUBARU dealer as soon as possible. If the front seatbelt retractor assem- bly or surrounding area has been dam- aged, contact your SUBARU dealer as soon as possible.
Page 51: System Monitors
SRS airbag sys- tem. Immediately take your vehicle to your nearest SUBARU dealer to have the system checked. Unless checked and properly repaired, the seatbelt pretensioners and/or SRS...
Page 52: System Servicing
SRS airbag systems are covered erate, contact your SUBARU dealer as with yellow insulation and the soon as possible. connectors of the system are yel- low for easy identification.
Page 53: Child Restraint Systems
1-24 Seat, seatbelt and SRS airbags Child restraint systems 100607 Infants and small children should always be placed in an infant or child restraint system in the rear seat while riding in the vehicle. You should use an infant or child restraint system that meets Federal Motor Vehicle Safety Standards or Canada Mo- tor Vehicle Safety Standards, is compati-...
Page 54: Where To Place A Child Restraint System
Where to place a child re- straint system The following are SUBARU’s recommen- dations on where to place a child restraint system in your vehicle. 100127 A: Front passenger’s seat...
Page 55: Choosing A Child Restraint System
1-26 Seat, seatbelt and SRS airbags Consequently, be sure to secure ALL types of child restraint devices (including forward facing child seats) in the REAR seats at all times. You should choose a restraint de- vice which is appropriate for the child’s age, height and weight.
Page 56: Installing Child Restraint Systems With A/Elr Seatbelt
Installing child restraint sys- tems with A/ELR seatbelt When you install a child restraint system, follow the manufacturer’s instructions supplied with it. After Child restraint systems and seat- installing the child restraint system, belts can become hot in a vehicle check to ensure that it is held se- that has been closed up in sunny curely in position.
Page 57 1-28 Seat, seatbelt and SRS airbags 100610 6. Push and pull the child restraint system forward and from side to side to check if it is firmly secured. Sometime a child restraint can be more firmly secured by pushing it down into the seat cushion and then tightening the seat- belt.
Page 58 100137 4. Take up the slack in the lap belt. 5. Pull out the seatbelt fully from the re- tractor to change the retractor over from the Emergency Locking Retractor (ELR) to the Automatic Locking Retractor (ALR) function. Then, allow the belt to rewind into the retractor.
Page 59: Installing A Booster Seat
1-30 Seat, seatbelt and SRS airbags press the release button on the seatbelt buckle and allow the belt to retract com- pletely. The belt will return to the ELR mode. Unhook the top tether hook from the top tether anchor. NOTE When the child restraint system is no longer in use, remove it and restore the...
Page 60: Installation Of Child Restraint Systems By Use Of Lower And Tether Anchorages (Latch)
100142 4. To remove the booster seat, press the release button on the seatbelt buckle and allow the belt to retract. Never use a belt that is twisted or reversed. In an accident, this can increase the risk or severity of in- jury to the child.
Page 61 1-32 Seat, seatbelt and SRS airbags When you install a child restraint system, follow the manufacturer’s instructions supplied with it. After installing the child restraint system, check to ensure that it is held se- curely in position. If it is not held tight and secure, the danger of your child suffering personal injury in the event of an accident may be in-...
Page 62 dicate the positions of the lower anchorag- es (bars). 100615 Each lower anchorage is located where the seat cushion meets the seatback. 1. Use the “ ” marks to locate the two lower anchorages (bars) for the position where you want to install the child restraint system.
Page 63: Top Tether Anchorages
If you have any question concerning this type of child restraint system, ask your SUBARU dealer. Top tether anchorages Your vehicle is equipped with three top tether anchorages so that a child restraint system having a top tether can be in- stalled in the rear seat.
Page 64 Open the cover flaps to use the tether an- chorages. To hook the top tether 100151 1. Remove the head restraint at the seat- ing position where the child restraint sys- tem has been installed with the lower an- chorages or seatbelt; lift up the head re- straint while pressing the release button.
Page 65: Srs Airbag (Supplemental Restraint System Airbag)
1-36 Seat, seatbelt and SRS airbags *SRS airbag (Supplemental Restraint System airbag) *SRS: This stands for supplemental re- straint system. This name is used be- cause the airbag system supplements the vehicle’s seatbelts. Your vehicle is equipped with a crash sensing and diagnostic module, which will record the use of the seatbelt(s) by the driver and/or front passenger when any of...
Page 66 The SRS airbags deploy with con- siderable speed and force. Occu- pants who are out of proper posi- tion when the SRS airbag deploys could suffer very serious injuries. Because the SRS airbag needs enough space for deployment, the driver should always sit upright and well back in the seat as far from the steering wheel as practi- cal while still maintaining full ve-...
Page 67 1-38 Seat, seatbelt and SRS airbags Never allow a child to stand up, or to kneel on the front passenger’s seat, or never hold a child on your lap or in your arms. The SRS air- bag deploys with considerable force and can injure or even kill the child.
Page 68 Components Any vehicle whose vehicle identification number’s last six digits are “733000” or lower but are not “729759”, “729760”, “729761”, “729762”, “729763”, “729764”, “729765”, “729899”, “729900”, “729901”, “729902”, “729903”, “729904” or “729905” For the location of the vehicle identification number plate, please refer to the “Vehicle identification”...
Page 69 1-40 Seat, seatbelt and SRS airbags Any vehicle whose vehicle identification number’s last six digits are “733001” or higher or are “729759”, “729760”, “729761”, “729762”, “729763”, “729764”, “729765”, “729899”, “729900”, “729901”, “729902”, “729903”, “729904” or “729905” For the location of the vehicle identification number plate, please refer to the “Vehicle identification”...
Page 70: Subaru Advanced Frontal Airbag System
Subaru advanced frontal air- bag system Your vehicle is equipped with a Subaru advanced frontal airbag system that com- plies with the new advanced frontal airbag requirements in the amended Federal Mo- tor Vehicle Safety Standard (FMVSS) No. 208. The Subaru advanced frontal airbag sys- tem automatically determines the deploy- ment force of the driver’s SRS frontal air-...
Page 71 1-42 Seat, seatbelt and SRS airbags 100125 Never hold a child on your lap or in your arms. The SRS airbag deploys with considerable force and can in- jure or even kill the child. 100155 The SRS airbag deploys with con- siderable speed and force.
Page 72 The occupant detection system may not inflate the front passenger’s SRS frontal airbag even when the driver’s SRS frontal airbag deploys. This is normal. Observe the following precautions. Failure to do so may prevent the Subaru ad- – CONTINUED –...
Page 73: Subaru Advanced Frontal Airbag System
Do not remove or disassemble the front passenger’s seat. Do not install any accessory (such as an audio amplifier) other than a genuine SUBARU accessory under the front pas- senger’s seat. Do not place anything (shoes, umbrella, etc.) under the front passenger’s seat.
Page 74 2 seconds. After this, one of the indicators illuminates depending on the status of the front passenger’s SRS frontal airbag reached by the Subaru ad- vanced frontal airbag system monitoring. If the front passenger’s SRS frontal airbag is activated, the passenger’s frontal airbag ON indicator will illuminate while the OFF indicator will remain extinguished.
Page 75 SUBARU dealer for an inspection. NOTE When a child who has outgrown a child restraint system or a small adult is seated in the front passenger’s seat,...
Page 76 Subaru advanced air- bag system. If you have any questions, you may contact the following Subaru dis- tributors: <Continental U.S., Alaska and the District...
Page 77 P.O. Box 11204, San Juan, Puerto Rico 00910 787-793-2828 There are currently no Subaru distributors in any other U.S. territories. If you are in such an area, please contact the Subaru distributor or dealer from which you bought your vehicle.
Page 78 Seat, seatbelt and SRS airbags The SRS airbag can function only when the ignition switch is in the “ON” position. The Subaru advanced frontal airbag sys- tem is designed to determine the activa- tion or deactivation condition of the front passenger’s SRS frontal airbag depend-...
Page 79 1-50 Seat, seatbelt and SRS airbags case of the front passenger’s SRS frontal airbag. After deployment, the SRS airbags immediately start to deflate so that the driver’s vision is not obstructed. The time required from detecting impact to the de- flation of the SRS airbag after deployment is shorter than the blink of an eye.
Page 80 Examples of the types of accidents in which it is possible that the driv- er’s/driver’s and front passenger’s SRS frontal airbag(s) will deploy. 100160 Only the driver’s SRS frontal airbag or both driver’s and front passenger’s SRS frontal airbags may be activated when the vehicle sustains a hard impact in the un- dercarriage area from the road surface (such as when the vehicle plunges into a...
Page 81 1-52 Seat, seatbelt and SRS airbags of driver’s/driver’s and front passenger’s SRS frontal airbag(s). If the vehicle strikes an object, such as a telephone pole or sign pole, or if it slides under a truck’s load bed, or if it sustains an oblique offset fron- tal impact, the driver’s/driver’s and front passenger’s SRS frontal airbag(s) may not deploy depending on the level of acci-...
Page 82: Srs Side Airbag (If Equipped)
SRS side airbag (if equipped) The SRS side airbag is stored in the door side of each front seat seatback, which bears an “SRS AIRBAG” label. In a moderate to severe side impact colli- sion, the SRS side airbag on the impacted side of the vehicle deploys between the occupant and the door panel and supple- ments the seatbelt by reducing the impact...
Page 83 1-54 Seat, seatbelt and SRS airbags 100622 100167 Never allow a child to kneel on the front passenger’s seat facing the side window or to wrap his/her arms around the front seat seatback. In the event of an accident, the force of the SRS side airbag deployment could injure the child seriously be- cause his/her head or arms or other...
Page 84 Do not put any kind of cover or clothes or other objects over either front seatback and do not attach la- bels or stickers to the front seat sur- face on or near the SRS side airbag. They could prevent proper deploy- ment of the SRS side airbag, reduc- ing protection available to the front seat’s occupant.
Page 85 1-56 Seat, seatbelt and SRS airbags Do not touch the SRS side airbag system components around the front seat seatback with bare hands right after deployment. Doing so can cause burns because the compo- nents can be very hot as a result of deployment.
Page 86 Examples of the types of accidents in which the SRS side airbag is unlikely to deploy. Seat, seatbelt and SRS airbags The vehicle is involved in an oblique side-on impact. The vehicle is involved in a side-on impact in an area outside the vicinity of the passenger compartment.
Page 87: Srs Airbag System Monitors
1-58 Seat, seatbelt and SRS airbags Examples of the types of accidents in which the SRS side airbag will ba- sically not deploy. 100628 1) The vehicle is involved in frontal collision with another vehicle (moving or station- ary). 2) The vehicle is struck from behind. The SRS side airbag is basically not de- signed to deploy if the vehicle is involved in a frontal collision or is struck from be-...
Page 88: Srs Airbag System Servicing
SRS airbag sys- tem. Immediately take your vehicle to your nearest SUBARU dealer to have the system checked. Unless checked and properly repaired, the seatbelt pretensioners and/or SRS...
Page 89: Precautions Against Vehicle Modification
SUBARU parts. To ensure their long-term reliability, the SRS airbags must be inspected by a SUBARU dealer ten years after the date of manufacture, which is shown on the certification plate attached to the driver’s door jamb.
Page 90 Attachment of any equipment (side steps or side sill protectors, etc.) other than genuine SUBARU accessory parts to the side body. Always consult your SUBARU dealer if you want to install any accessory parts on your vehicle. 1-61 Seat, seatbelt and SRS airbags...
Page 92: Keys And Doors
Keys ... Key number ... Immobilizer (if equipped) ... Security ID plate ... Security indicator light ... Key replacement ... Door locks ... Locking and unlocking from the outside ... Locking and unlocking from the inside ... Power door locking switches ... Key lock-in prevention function ...
Page 93: Keys
Keys and doors Keys Keys and doors 200801 Vehicle with immobilizer system 1) Master key (Black) 2) Submaster key (Black) 3) Valet key (Gray) 4) Key number plate 5) Security ID plate 200802 Vehicle without immobilizer system 1) Master key 2) Submaster key 3) Valet key 4) Key number plate...
Page 94: Immobilizer (If Equipped)
Immobilizer (if equipped) The immobilizer system is designed to prevent an unauthorized persons from starting the engine. Only keys registered with your vehicle’s immobilizer system can be used to operate your vehicle. Even if an unregistered key fits into the ignition switch and can be turned to the “START”...
Page 95: Key Replacement
If the security indicator light does not flash, the immobilizer system may be faulty. If this occurs, contact your SUBARU dealer as soon as possible. In case an unauthorized key is used (e.g. an imitation key), the security indicator light comes on.
Page 96: Locking And Unlocking From The Inside
200805 1) Rotate the lock lever rearward. 2) Close the door. To lock the door from the outside without the key, rotate the lock lever rearward and then close the door. To lock the door from the outside using the power door locking switch, push the front side of the switch (“LOCK”...
Page 97: Power Door Locking Switches
Keys and doors Power door locking switches 200807 1) Lock 2) Unlock All doors and the rear gate can be locked and unlocked by the power door locking switches located at the driver’s side and the front passenger’s side doors. To lock the doors, push the front side of the switch.
Page 98: Locking The Doors
depending on environmental conditions. The system’s operable distance will be shorter in areas near a facility or electronic equipment emitting strong radio waves such as a power plant, broadcast station, TV tower, or remote controller of home electronic appliances. The keyless entry system does not oper- ate when the key is inserted in the ignition switch to prevent accidental lockout.
Page 99: Illuminated Entry
If this happens, repeat the whole procedure from Step 1. You may have the above settings done by your SUBARU dealer. Replacing the battery When the transmitter battery begins to get weak, transmitter range will begin to de- crease.
Page 100: Replacing Lost Transmitters
To replace the battery: 200809 1. Open the transmitter case using a flat- head screwdriver. 200716 2. Separate the case. 3. Remove the old battery from the hold- 200717 1) Negative (–) side facing up 4. Replace with a new battery (Type CR2025 or equivalent) making sure to in- stall the new battery with the negative (–) side facing up.
Page 101 2-10 Keys and doors Programming transmitter codes into system: 200718 Bag containing transmitter 200719 Transmitter circuit board To register a new transmitter with the key- less entry system, it is necessary to pro- gram the transmitter’s code (identification number) into the system. A label showing the code is affixed to the bag containing the transmitter, and another is affixed to the circuit board inside the transmitter.
Page 102 NOTE When part 4 of the procedure is com- pleted, an electronic tone will sound for 30 seconds. If you do not perform the operations in part 4 within 15 seconds, an error will occur and the electronic tone will not sound.
Page 103: Alarm System
Your vehicle’s alarm system has been set for activation at the time of shipment from the factory. You can set the system for de- activation yourself or have it done by your SUBARU dealer. System operation The alarm system will give the following alarm when triggered: The vehicle’s horn will sound and the...
Page 104: Activating And Deactivating The Alarm System
The horn sounds once, indicating that the system is now activated. NOTE You may have the above setting change done by your SUBARU dealer. If you have accidentally trig- gered the alarm system To stop the alarm Do any of the following operations: Press any button on the remote trans- mitter.
Page 105: Disarming The System
The 30-second standby time can be eliminated if you prefer. Have it per- formed by your SUBARU dealer. The system is in the standby mode for a 30-second period after locking the doors with the remote transmitter. The security indicator light will flash at short intervals during this period.
Page 106: Valet Mode
Note that in this mode, DOORS MUST BE MANUALLY LOCKED. To enter the passive mode If you wish to program the passive arming mode, have it done by your SUBARU 2-15 Keys and doors dealer. Arming the system 1.
Page 107: Tripped Sensor Identification
30 seconds. If you desire, your SUBARU dealer can connect them and set them for activation or deactivation. NOTE...
Page 108: Child Safety Locks
Vibration in a multistory parking ga- rage Vibration from trains You can have the sensitivity of the shock sensors adjusted to your prefer- ence by your SUBARU dealer. Child safety locks 200818 1) Lock 2) Unlock Each rear door has a child safety lock that prevents the doors from being opened even if the inside door handle is pulled.
Page 109: Power Windows
2-18 Keys and doors Windows Power windows To avoid serious personal injury caused by entrapment, you must do the following. When operating the power win- dows, be extremely careful to pre- vent anyone’s fingers, arms, neck or head from being caught in the window.
Page 110 held. Operating the passengers’ windows 200191 To open the passengers’ windows, push the appropriate switch down and hold it until the window reaches the desired posi- tion. To close the window, pull the switch up and hold it until it reaches the desired po- sition.
Page 111: Rear Gate
2-20 Keys and doors Rear gate The rear gate can be locked and unlocked using either the keyless entry system or the power door locking switches. Refer to the “Power door locking switches” and “Remote keyless entry system” sec- tions in this chapter. 200822 To open the rear gate, first unlock the rear gate lock then pull the outside handle up.
Page 112: Moonroof (If Equipped)
Moonroof (if equipped) 200823 1) Open/close switch 2) Open 3) Close The moonroof operates only when the ig- nition switch is in the “ON” position. To open the moonroof Push and quickly release the rear part of the switch to open the moonroof. The sun shade will also be opened together with the moonroof.
Page 113 2-22 Keys and doors If the moonroof is opened, the sun shade also moves back. Never let anyone’s hands, arms, head or any objects protrude from the moonroof. A person could be seriously injured if the vehicle stops suddenly or turns sharply or if the vehicle is involved in an accident.
Page 114: Instruments And Controls
Ignition switch ... LOCK ... ACC ... ON ... START ... Key reminder chime ... Ignition switch light (if equipped) ... Key interlock release (AT vehicles only) ... Hazard warning flasher ... Meters and gauges ... Speedometer ... Odometer/Trip meter ... Tachometer ...
Page 115 Instruments and controls Rear window wiper and washer switch ... Windshield wiper deicer (if equipped) ... Rear window defogger button ... Mirrors ... Inside mirror ... Outside mirrors ... Tilt steering wheel ... Horn ... 3-24 3-25 3-25 3-26 3-26 3-28 3-29 3-30...
Page 116: Ignition Switch
Ignition switch Instruments and controls Never turn the ignition switch to “LOCK” while the vehicle is being driven or towed because that will lock the steering wheel, prevent- ing steering control. And when the engine is turned off, it takes a much greater effort than usual to steer.
Page 117: Acc
Instruments and controls 300566 The key can be turned from “ACC” to “LOCK” only when the selector lever is in the “P” position. Manual transmission vehicles 300115 The key can be turned from “ACC” to “LOCK” only when the key is pushed in while turning it.
Page 118: Key Reminder Chime
2. Remove the cover under the steering column using a Phillips screwdriver. Instruments and controls 300570 3. Turn the ignition key while pressing the key interlock release lever. Take your vehicle to the nearest SUBARU dealer immediately to have the key inter- lock system repaired.
Page 119: Hazard Warning Flasher
Instruments and controls Hazard warning flasher 300117 The hazard warning flasher is used to warn other drivers when you have to park your vehicle under emergency conditions. The hazard warning flasher works with the ignition switch in any position. To turn on the hazard warning flasher, push the hazard warning button on the in- strument panel.
Page 120: Tachometer
trip or B trip meter by pushing the knob and keep the knob pushed for more than 2 seconds. To ensure safety, do not attempt to change the function of the indicator during driving, as an accident could result. NOTE If the connection between the combi- nation meter and battery is broken for any reason such as vehicle mainte-...
Page 121: Temperature Gauge
Instruments and controls NOTE This light does not go out unless the tank is replenished up to an internal fuel quantity of approximately 4.0 US gal (15 liters, 3.3 Imp gal). Promptly put fuel in the tank when- ever the low fuel warning light comes on.
Page 122: Warning And Indicator Lights
Cruise control set indicator light (if equipped) If any lights fail to come on, it indicates a burned-out bulb or a malfunction of the corresponding system. Consult your authorized SUBARU dealer for repair. Seatbelt warning light and chime Your vehicle is equipped with a seatbelt warning device at the driver’s seat, as re-...
Page 123: Srs Airbag System Warning Light
SRS airbag sys- tem. Immediately take your vehicle to your nearest SUBARU dealer to have the system checked. Unless checked and properly repaired, the seatbelt pretensioners and/or SRS airbags will operate improperly (e.g.
Page 124: Check Engine Warning Light/Malfunction Indicator Lamp
2 seconds. After this, one of the indicators illuminates depending on the status of the front passenger’s SRS frontal airbag reached by the Subaru ad- vanced frontal airbag system monitoring. If the front passenger’s SRS frontal airbag is activated, the passenger’s frontal airbag ON indicator will illuminate while the OFF indicator will remain extinguished.
Page 125: Charge Warning Light
If the oil level is low, add oil immediately. If the engine oil is at the proper level but the light remains on, contact your nearest SUBARU dealer immediately. Do not operate the engine with the oil pressure warning light on.
Page 126: Vehicle Dynamics Control Warning Light (If Equipped)/Vehicle Dy- Namics Control Off Indicator Light (If Equipped)
The Vehicle Dynamics Control system is probably inoperative under any of the fol- lowing conditions. Have your vehicle checked at a SUBARU dealer immediate- The warning light does not come on when the ignition switch is turned to the “ON” position.
Page 127: Brake System Warning Light
Instruments and controls tions of the brake system are still avail- able. You will be safe while driving with this condition, but have your vehicle checked at a SUBARU dealer as soon as possible. NOTE If the warning light behavior is as...
Page 128: Door Open Warning Lights
5. If the brake fluid level is not below the “MIN” mark, the EBD system may be faulty. Drive carefully to the nearest SUBARU dealer and have the system in- spected. 6. If the brake fluid level is below the “MIN”...
Page 129: Vehicle Dynamics Control Operation Indicator Light (If Equipped)
“ACC” or “LOCK” position, and then turn it again to the “ON” position. If this indicator light and the “ ” indicator light flash simultaneously during driving, have vehicle checked by your nearest SUBARU dealer.
Page 130: Cruise Control Set Indicator Light
Cruise control set indica- tor light The cruise control set indicator light comes on when the ignition switch is turned to the “ON” position and goes out after approximately three seconds. This light comes on when vehicle speed has been set. Clock 300578 To adjust the clock, open the small article...
Page 131: Light Control Switch
3-18 Instruments and controls Light control switch The light switch operates only when the ignition switch is in the “ON” position. To prevent battery discharge result- ing from accidentally leaving your lights on when your vehicle is parked, the light switch operates only when the ignition switch is in the “ON”...
Page 132: Headlight Flasher
Headlight flasher 300129 To flash the headlights, pull the lever to- ward you and then release it. The high beam will stay on for as long as you hold the lever. The headlight flasher works even though the lighting switch is in the “OFF”...
Page 133: Turn Signal Lever
3-20 Instruments and controls Turn signal lever 300601 1) Right turn 2) Left turn 3) Lane change for right 4) Lane change for left To activate the right turn signal, push the turn signal lever up. To activate the left turn signal, push the turn signal lever down.
Page 134: Headlight Beam Leveler (Canada-Spec. 2.5Xt)
Headlight beam leveler (Canada-spec. 2.5XT) 300133 The 2.5XT has High-Intensity Discharge (HID) headlights on the low beam setting. The HID headlights generate more light than conventional halogen headlights. Therefore a driver of an oncoming vehicle may experience too much glare when your headlight beam height adjustment is high due to the vehicle carrying a heavy load.
Page 135: Wiper And Washer
Use clean water if windshield washer fluid is unavailable. In ar- eas where water freezes in winter, use SUBARU Windshield Washer Fluid or the equivalent. (See the “Windshield washer fluid” section in chapter 11.)
Page 136: Windshield Wiper And Washer Switches
streaking on the glass. If you cannot remove those streaks after operating the washer or if the wiper operation is jerky, clean the outer surface of the windshield or rear window and the wip- er blades using a sponge or soft cloth with a neutral detergent or mild-abra- sive cleaner.
Page 137: Rear Window Wiper And Washer Switch
3-24 Instruments and controls Mist (for a single wipe) 300139 For a single wipe of the wipers, pull the le- ver toward you. The wipers operate until you release the lever. Washer 300140 To wash the windshield, push the washer button at the end of the wiper control le- ver.
Page 138: Climate Control
Windshield wiper deicer (if equipped) 300143 The windshield wiper deicer operates only when the ignition switch is in the “ON” po- sition. Before turning on the windshield wiper de- icer, remove any snow from the wind- shield. To turn on the windshield wiper de- icer, push the button.
Page 139: Mirrors
3-26 Instruments and controls The rear window defogger operates only when the ignition switch is in the “ON” po- sition. The rear window defogger button is locat- ed on the climate control panel. To turn on the defogger, push the button. To turn it off, push the button again.
Page 140 Auto-dimming mirror/compass (if equipped) 300517 1) Left button 2) Auto dimming indicator 3) Photosensor 4) Right button The inside electronic compass mirror has an anti-glare feature which automatically reduces glare coming from headlights of vehicles behind you. It also contains a built-in compass.
Page 141: Outside Mirrors
3-28 Instruments and controls Compass zone adjustment 300580 Compass calibration zones 1. The zone setting is factory preset to Zone 8. Refer to the “Compass calibration zone” map shown above or one attached to the end of this manual to verify that the compass zone setting is correct for your geographical location.
Page 142: Tilt Steering Wheel
Outside mirror defogger 300582 1) Outside mirror defogger button (if equipped) 2) Outside mirror defogger and windshield wiper deicer button (if equipped) The outside mirror defogger operates only when the ignition switch is in the “ON” po- sition. To turn on the outside mirror defogger, push the button.
Page 143: Horn
3-30 Instruments and controls Horn 300150 To sound the horn, push the horn pad.
Page 144 Ventilator ... Air flow selection ... Center and side ventilators ... Manual climate control system (if equipped) .. Control panel ... Heater operation ... Air conditioner operation ... Automatic climate control system (if equipped) ... Control panel ... To use as full-automatic climate control system ...
Page 145: Climate Control
Climate control Ventilator Climate control Air flow selection 400138...
Page 146: Center And Side Ventilators
Center and side ventilators Center ventilators 400140 Move the tab up and down or right and left to adjust the flow direction. Side ventilators 400545 1) Open 2) Close 3) Thumb-wheel Move the tab up and down or right and left to adjust the flow direction.
Page 147 Climate control Fan speed control dial The fan operates only when the ignition switch is turned to the “ON” position. The fan speed control dial is used to select four fan speeds. Air flow control dial This dial has the following five positions: : Air flows through the instrument panel outlets.
Page 148: Heater Operation
Continued operation with the air in- let selection button in the ON posi- tion may fog up the windows. Switch to the OFF position as soon as the outside dusty condition clears. Heater operation Defrosting or defogging the wind- shield 400146 To direct warm air to the windshield and front door windows:...
Page 149 Climate control Heating 400148 To direct warm air toward the floor: 1. Set the air inlet selection button to the OFF position. 2. Set the air flow control dial to the “ ” position. 3. Set the temperature control dial to the most comfortable level.
Page 150: Air Conditioner Operation
Continued operation with the air in- let selection button in the ON posi- tion may fog up the windows. Switch to the OFF position as soon as the outside dusty condition clears. Air conditioner operation Cooling or dehumidifying 400547 1) ON position For cooling and dehumidification of the passenger compartment, performing the following steps will allow air to flow...
Page 151: Automatic Climate Control System (If Equipped)
Climate control Automatic climate control system (if equipped) Although this climate control system can be used as a full-automatic climate control system, it can also, if desired, be used as a semi-automatic climate control system. When it is used as a full-automatic climate control system, the outlet air temperature, fan speed, air flow distribution, air inlet control, and air conditioner compressor...
Page 152: Fan Speed Control Dial
AUTO: The fan speed is adjusted auto- matically in accordance with the air tem- perature inside and outside the passenger compartment, the intensity of sunlight, and other factors. SUBARU recommends using the AUTO position. Other positions: The fan speed can be adjusted in seven steps.
Page 153: Air Inlet Selection Button
Pressing the air inlet selection button can- cels the “AUTO” mode. SUBARU recom- mends using the AUTO position. Continued operation in the ON posi- tion may fog up the windows.
Page 154: Temperature Sensors
Pressing the button cancels the “AUTO” mode. SUBARU recommends using the AUTO position. NOTE The air conditioner’s compressor does not operate with an outside tempera- ture of 32°F (0°C) or lower. Temperature sensors 400551 1) Interior air temperature sensor 2) Solar sensor The automatic climate control system em- ploys several sensors.
Page 155: Lubrication Oil Circulation In The Refrigerant Circuit
Under extremely dusty conditions, the filter should be replaced more frequently. It is recommended that you have your fil- ter checked or replaced by your SUBARU dealer. For replacement, use only a genu- ine SUBARU air filter kit. Replacement schedule:...
Page 156: Replacing An Air Filter
Replacing an air filter 400556 1. Remove the glove box. 1) Open the glove box. 2) Remove the nine screws securing the glove box. 400553 1) Air filter cover 2. Remove the air filter cover. 400554 1) Air filter element 2) Arrow mark 4-13 Climate control...
Page 157 4-14 Climate control 400556 5. Reinstall the glove box. 6. Close the glove box. 400557 1) Service label 2) Caution label 7. LABEL installation 1) Fill out the information on the service label (small). 2) Attach the service label to the driver side door pillar and the caution label to the driver side end of the instrument panel.
Page 158: Audio
Antenna system ... FM reception ... Installation of accessories ... Audio set ... Type A audio set ... Type B audio set ... In-dash 6 CD auto changer (Optional audio unit – if equipped) ... Type A audio set (if equipped) ... Radio operation ...
Page 159: Antenna System
If reception continues to be unsatis- factory, switch to a stronger station. Installation of accessories Always consult your SUBARU dealer be- fore installing a citizen band radio or other transmitting device in your vehicle. Such devices may cause the electronic control...
Page 160: Audio Set
Audio set Your SUBARU may be equipped with one of the following audio sets. See the pages indicated in this section for operating de- tails. Type A audio set 500214 Radio operation: refer to page 5-4 Compact disc player operation: refer to...
Page 161: Type A Audio Set (If Equipped)
Audio Type A audio set (if equipped) The radio will operate only when the ignition switch is in the “ACC” or “ON” position. Radio operation (1) Power switch, Volume control, Tone/ Fader/Balance control dial (2) BAND button (3) Tuning buttons (4) Preset buttons (5) AUDIO button (6) SCAN button...
Page 162 radio is first turned on, the control mode is in the volume control.) Display Control mode Volume control For less volume Bass control For less bass sound Treble control For less treble sound Balance control To increase left speaker volume and decrease right speaker volume Fader control To increase rear speaker volume and decrease front...
Page 163 Audio FM/AM/Weather band selection but- ton (BAND) Push the “BAND” button when the radio is on to select FM1, FM2, AM or Weather band (WB) reception. Each time this but- ton is pressed, the band will change in the following order: The display indicates which one is cur- rently selected.
Page 164 Audio noise when it receives calls. This noise does not indicate a radio fault. – CONTINUED –...
Page 165: Compact Disc Player Operation
Audio Compact disc player operation (15) (14) (7) Disc slot (8) CD button (9) Eject button (10) Fast-forwarding and track up button (11) Fast-reversing and track down button (8) (9) (12) Random button (13) Repeat button (14) Scan button (15) PWR (power) switch To play back a compact disc When CD is not in the player Hold a disc with a finger in the center hole...
Page 166 show “CD-IN” and the player will start playback. NOTE After the last song finishes, playback will automatically return to track 1 (the first song on the disc). To stop playback of a CD When the “PWR” button (15) is pressed during playback of a CD, the CD stops playing temporarily.
Page 167: Cd Changer Control (If Optional In-Dash Cd Changer Is Connected)
An optional CD changer can be connected to this audio unit. Consult the instructions that accompany the CD changer for operating the CD changer itself (e.g., how to load or un- load CDs). See your SUBARU dealer for more information. (20)
Page 168 the discs contained in the CD changer only by pressing the corresponding num- ber on one of the disc select buttons. If you are to listen to the 5th disc in the CD changer, press the “5” button of the disc select buttons.
Page 169: Type B Audio Set (If Equipped)
5-12 Audio Type B audio set (if equipped) The radio will operate only when the ignition switch is in the “ACC” or “ON” position. Radio operation (1) (2) (3) (1) SCAN button (2) FM/AM selection button (3) WB (weather band) button (4) Power switch, Volume control, Bass/ (5) TONE button (6) Fader/Balance selection button...
Page 170 Display Control mode BASS Bass control For less bass sound MIDDLE Midrange control For less midrange sound TREBLE Treble control For less treble sound FADER Fader control To increase rear speaker volume and decrease front speaker volume BALANCE Balance control To increase left speaker volume and decrease right speaker volume VOLUME...
Page 171 5-14 Audio starting from bass control mode. (When the radio is first turned on, the control mode is in the volume control.) BASS MIDDLE TREBLE VOLUME Fader and balance control The volume control dial (4) normally func- tion as volume control. The dial become the controls for Fader or Balance when you select the appropriate fader and bal- ance control mode.
Page 172 select the desired station. Automatic tuning (SCAN) Press the “SCAN” button (1) to change the radio to the SCAN mode. In this mode, the radio scans through the radio band until a station is found. The radio will stop at the station for five seconds while displaying the frequency, after which scanning will continue until the entire band has been...
Page 173: Built-In Cd Changer Operation
5-16 Audio Built-in CD changer operation (10) (11) (12) (18) (9) Eject button (10) SCAN button (11) CD (CD player selection) button (13) (14) (15) (16) (12) Disc slot (13) DISC indicator (14) Repeat button (15) Random button (16) LOAD button (17) Disc select buttons (18) Track selection buttons NOTE...
Page 174 no idle position in the magazine. 2. As soon as the “DISC” indicator (13) begins to blink, the “LOAD” will blink on display for a period of 15 seconds. Insert a disc during the period. The disc will be then automatically drawn in, and the play- er will begin to play back the first track of the disc.
Page 175 5-18 Audio track. Each time the button is pressed, the indicated track number will increase. Backward direction Briefly press the “ ” side of the button (18) to skip to the beginning of the current track. Each time the button is pressed, the indicated track number will decrease.
Page 176: In-Dash 6 Cd Auto Changer (If Equipped)
5-19 Audio In-dash 6 CD auto changer (if equipped) (1) Disc slot (2) Disc indicators (disc No.1 to 6) Loading and unloading compact discs (3) Disc select buttons (disc No.1 to 6) (4) Eject button (5) Disc slot indicator 500222 –...
Page 177 5-20 Audio Do not attempt to insert two or more discs into the slot at a time. Doing so can cause mechanical damage to the CD changer. Use only music CDs identified by mark. Do not use CDs listed in the fol- lowing which could cause dam- age to the CD player.
Page 178: Precautions To Observe When Handling A Compact Disc
OFF: No disc is loaded or the ignition switch is in the “LOCK” position. Open/Closed disc slot indicator When the disc slot is open, the disc indica- tors on both sides of the slot illuminate. Function control Refer to CD changer control operating in- structions described in the “Type A audio set (if equipped)”...
Page 179 5-22 Audio form inside the CD player, preventing nor- mal operation. If this happens, eject the CD and wait for the player to dry out. Skipping may occur when the CD player is subjected to severe vibration (for exam- ple, when the vehicle is driven on a rough surface).
Page 180: Interior Equipment
Interior lights ... Dome light ... Cargo area light ... Map lights ... Sun visors ... Vanity mirror ... Storage compartments ... Glove box ... Center console ... Overhead console ... Dashboard storage compartment ... Convenience net ... Cup holders ... Front passenger’s cup holder ...
Page 181: Interior Lights
Interior equipment Interior lights Interior equipment When leaving your vehicle, make sure the light goes out to avoid battery discharge. Dome light DOOR 600078 The dome light switch has three positions: ON: The light stays on continuously. DOOR (middle position): The dome light comes on when any of the doors or the rear gate is opened.
Page 182: Map Lights
Map lights 600080 To turn on the map light, push the switch. To turn it off, push the switch again. When leaving the vehicle, make sure the light is turned off to avoid battery dis- charge. Sun visors 600081 To block out glare, swing down the visors. To use the sun visor at a side window, swing it down and move it sideways.
Page 183: Storage Compartments
Interior equipment Storage compartments Always keep the storage compart- ment closed while driving to re- duce the risk of injury in the event of sudden stops or an accident. Do not store spray cans, contain- ers with flammable or corrosive liquids or any other dangerous items in the storage compartment.
Page 184 Do not step or sit on the armrest, and do not place heavy objects on it. The armrest could break, and you could get hurt. To use as rear passenger’s cup holder: 600520 With the console top tipped toward the rear seat, it can be used as a cup holder.
Page 185: Overhead Console
Interior equipment Be careful not to trap your hands between the console top and con- sole box when raising and tipping the console top. When there is an object on the console box lid, do not tip the con- sole top forward. Otherwise, the console top or lid could be dam- aged, and an injury could occur.
Page 186: Cup Holders
Cup holders When not in use, always keep the cup holder stored while driving to reduce the risk of injury in the event of a sudden stop or an acci- dent. Do not pick up a cup from the cup holder or put a cup in the holder while you are driving, as this may distract you and lead to an acci-...
Page 187: Accessory Power Outlets
Interior equipment Accessory power outlets 600094 Power outlet in cargo area 600477 Power outlet on center console Accessory power outlets are provided in the center console and in the cargo area. Electrical power (12V DC) from the battery is available at any of outlets when the igni- tion switch is either in the “ACC”...
Page 188: Cigarette Lighter Socket
Push gently on the lid to open it. A cigarette lighter plug is an optional acces- sory. It is available from your SUBARU dealer. The cigarette lighter socket may also be used as a power source for an in-car use electrical appliance.
Page 189: Use With A Cigarette Lighter (If Equipped)
If you want to use the socket for a cigarette lighter again, or to protect your purchaser before you sell your vehicle, have your SUBARU dealer replace the socket with a new one.
Page 190: Ashtray
Ashtray 600096 To open the ashtray, push lightly on the lid below the climate controls. Fully close the lid after using it to help re- duce residual smoke. To remove the ashtray for cleaning, hold the right and left sides of the ashtray and pull it out.
Page 191: Coat Hook
6-12 Interior equipment 600481 Make sure the driver’s floor mat is placed back in its proper location and correctly secured on its retain- ing pin. If the floor mat slips forward and interferes with the movement of the pedals during driving, it could cause an accident.
Page 192: To Remove The Cover
Do not place anything on the ex- tended cover. Putting excessive weight on the extended cover can break it and an object on the cover could tumble forward in the event of a sudden stop or collision. This could cause serious injury. To remove the cover 600100 1.
Page 193: Cargo Tie-Down Hooks
6-14 Interior equipment Cargo tie-down hooks 600103 The cargo area is equipped with four tie- down hooks so that cargo can be secured with a cargo net or ropes. When using the hooks, raise them. When not in use, lower the hooks. The cargo tie-down hooks are de- signed only for securing light cargo.
Page 194 Front, left and right side storage compartment To open the lid, raise the cargo tie-down hooks and pull the tab up. The jack and jack handle are stored in the left side storage compartment. Interior equipment Center storage compartment (Stor- age bucket) To open the lid, pull the handle up.
Page 195 6-16 Interior equipment edge of the roof. Canada-spec. non-turbo models: The storage bucket is put on the spare tire. Except Canada-spec. non-turbo mod- els: Storage tray is placed on the spare tire. 600108 NOTE When storing a flat tire, put the storage tray in the luggage compartment (Ex- cept Canada-spec.
Page 196: Driving Tips
Fuel ... Fuel requirements ... Fuel filler lid and cap ... State emission testing (U.S. only) ... Preparing to drive ... Starting the engine ... Manual transmission vehicle ... Automatic transmission vehicle ... Stopping the engine ... Manual transmission ... Shifting speeds ...
Page 197: Fuel
If this happens, return your authorized SUBARU Dealer for service. If it is deter- mined that the condition is caused by the type of fuel used, repairs may not be cov- ered by your warranty. Gasoline for cleaner air...
Page 198: Fuel Filler Lid And Cap
In addition, some gasoline suppliers are now producing reformulated gasolines, which are designed to reduce vehicle emissions. SUBARU approves the use of reformulated gasoline. If you are not sure what the fuel contains, you should ask your service station oper-...
Page 199 Do not let fuel spill on the exterior surfaces of the vehicle. Fuels may cause paint damage, which is not covered under the SUBARU Limit- ed Warranty.
Page 200: State Emission Testing (U.s. Only)
At state inspection time, remember to emission control system might be tell your inspection or service station damaged. in advance not to place your SUBARU AWD vehicle on a two-wheel dyna- mometer. Otherwise, serious transmis- sion damage will result. Some states have started using dyna-...
Page 201: Preparing To Drive
Owners of rejected or failing vehicles should contact their SUBARU Dealer for service. Preparing to drive You should perform the following checks and adjustments every day before you start driving.
Page 202: Starting The Engine
“START” position without depressing the accelerator pedal. 4) If the engine still refuses to start, con- tact your nearest SUBARU dealer for assistance. 6. Confirm that all warning and indicator lights have gone off after the engine has started.
Page 203: Stopping The Engine
“START” position without depressing the accelerator pedal. 4) If the engine still refuses to start, con- tact your nearest SUBARU dealer for assistance. 6. Confirm that all warning and indicator lights have gone out after the engine has started.
Page 204: Manual Transmission
Manual transmission The manual transmission is a fully syn- chromeshed, 5-forward-speed and 1-re- verse-speed transmission. 700032 The shift pattern is shown on the shift le- ver knob. When shifting from 5th gear to reverse gear, first return the shift lever to the neutral position then shift into reverse gear.
Page 205: Driving Tips
7-10 Starting and operating mph (km/h) Non-turbo Turbo models models 30 (49) 28 (46) 51 (82) 52 (83) 73 (117) 73 (118) When shifting down a gear, ensure that the vehicle is not traveling at a speed exceeding the Maximum Al- lowable Speed for the gear which is about to be selected.
Page 206: Selector Lever For Automatic Transmission
Do not shift from the “P” or “N” po- sition into the “D”, “3”, “2”, “1” or “R” position while depressing the accelerator pedal. This may cause the vehicle to jump forward or back- ward. Shift into the “P” or “R” position only after the vehicle is complete- ly stopped.
Page 207 7-12 Starting and operating sure safe starting of the vehicle. To shift the selector lever from the “P” to the any other position, you have to de- press the brake pedal fully when the igni- tion switch is in the “ON” position. This prevents the vehicle from lurching when it is started.
Page 208 shortly after the vehicle has been parked for an extended period of time. When the ATF temperature has risen to a certain level, automatic downshift normally takes place. In the meantime, downshift manually for engine braking as required. Also, downshifting when braking downhill will not occur at speeds...
Page 209: Shift Lock Release
“N” position. 6. Remove the screwdriver from the hole. Depress the brake pedal and start the en- gine. Take your vehicle to the nearest SUBARU dealer immediately to have the system re- paired. Rear viscous limited slip dif- ferential (LSD) (if equipped)
Page 210: Power Steering
Power steering The power steering system operates only when the engine is running. If you lose power steering assist because the engine stops or the system fails to function, you can steer but it will take much more effort. NOTE Right after the engine has been started and before it has warmed up, you may hear a noise coming from areas adja-...
Page 211: Disc Brake Pad Wear Warning Indicators
If a squeaking or scraping noise is heard from the disc brakes while braking, imme- diately have your vehicle checked by your SUBARU dealer. ABS (Anti-lock Brake Sys- tem) The ABS system prevents the lock-up of...
Page 212: Abs Warning Light
The warning light comes on dur- ing driving. If these occur, have the ABS system repaired at the first available oppor- tunity by your SUBARU dealer. NOTE If the warning light behavior is as de- scribed in the following, the ABS sys- tem may be considered normal.
Page 213: Electronic Brake Force Distribution (Ebd) System (If Equipped)
5. If the brake fluid level is not below the “MIN” mark, the EBD system may be faulty. Drive carefully to the nearest SUBARU dealer and have the system in- spected. 6. If the brake fluid level is below the “MIN”...
Page 214: Vehicle Dynamics Control System (If Equipped)
If Always use the utmost care in driv- the light remains on, have the ing – overconfidence because you brakes inspected by a SUBARU are driving with a Vehicle Dynamics dealer immediately. Control system equipped vehicle...
Page 215 7-20 Starting and operating – Keep the tire pressure at the proper level as shown on the placard attached to the vehi- cle’s door pillar. – Use only the special temporary spare tire to replace a flat tire. With a temporary spare tire, the effectiveness of the Vehicle Dy- namics Control system is re- duced and this should be taken...
Page 216: Vehicle Dynamics Control System Monitor
The following two situations could indicate a malfunction of the Vehicle Dynamics Control system; if either should occur, have an authorized SUBARU dealer carry out an inspection of that system at the first available opportunity. The indicator light does not turn on when the ignition switch is turned to the ON position.
Page 217 SUBARU dealer carry out an inspection of those systems at the first available oppor- tunity. NOTE...
Page 218: Vehicle Dynamics Control Off Switch
Vehicle Dynamics Control OFF switch 700335 Pressing the switch to deactivate the Ve- hicle Dynamics Control system can facili- tate the following operations: a standing start on a steeply sloping road with a snowy, gravel-covered, or oth- erwise slippery surface extrication of the vehicle when its wheels are stuck in mud or deep snow When the switch is pressed during engine...
Page 219: Parking Your Vehicle
7-24 Starting and operating Parking your vehicle Parking brake To set the parking brake, press the brake pedal firmly and hold it down while fully pulling up the parking brake lever. 700336 To release the parking brake, pull the le- ver up slightly, press the release button, then lower the lever while keeping the but- ton pressed.
Page 220: Hill Holder (Manual Transmission - If Equipped)
Hill holder (Manual transmis- sion – if equipped) Never leave unattended children or pets in the vehicle. They could The Hill holder is a device to make starting accidentally injure themselves or on an uphill grade easier. others through inadvertent opera- tion of the vehicle.
Page 221: Cruise Control
7-26 Starting and operating The Hill Holder is a device only for helping the driver to START the ve- hicle on an uphill grade. To prevent accidents when the vehicle is parked on a slope, be sure to firmly set the parking brake. When setting the parking brake, make sure that the vehicle remains stationary when the clutch pedal is released.
Page 222: To Temporarily Cancel The Cruise Control
vehicle reaches the desired speed. 300333 3. Push the control lever downward in the “SET/COAST” direction and release it. Then release the accelerator pedal. 700051 At this time, the “ ” indicator light is il- luminated in the combination meter. The vehicle will maintain the desired speed.
Page 223: To Change The Cruising Speed
7-28 Starting and operating To change the cruising speed To increase the speed (by control le- ver) 300334 Push the control lever upward in the “RES/ACC” direction and hold it until the vehicle reaches the desired speed. Then, release the control lever. The vehicle speed at that moment will be memorized and treated as the new set speed.
Page 224: Self-Leveling Rear Suspension (If Equipped)
To decrease the speed (by brake pedal) 1. Depress the brake pedal to release cruise control temporarily. 2. When the speed decreases to the de- sired speed, press the control lever down- ward in the “SET/COAST” direction once. Now the desired speed is set and the ve- hicle will keep running at that speed with- out depressing the accelerator pedal.
Page 226: Driving Tips
New vehicle break-in driving – the first 1,000 miles (1,600 km) ... Fuel economy hints ... Engine exhaust gas (Carbon monoxide) ... Catalytic converter ... Periodic inspections ... Driving in foreign countries ... Driving tips for AWD vehicles ... Off road driving ... Winter driving ...
Page 227: New Vehicle Break-In Driving - The First 1,000 Miles (1,600 Km)
Driving tips New vehicle break-in driving Driving tips – the first 1,000 miles (1,600 The performance and long life of your ve- hicle are dependent on how you handle and care for your vehicle while it is new. Follow these instructions during the first 1,000 miles (1,600 km): Do not race the engine.
Page 228: Catalytic Converter
(misfiring, back- firing or incomplete combustion), have your vehicle checked and repaired by an authorized SUBARU dealer. Do not apply undercoating or rust pre- vention treatment to the heat shield of cat- alytic converter and the exhaust system.
Page 229: Periodic Inspections
Driving tips Keep everyone and flammable materials away from the exhaust pipe while the engine is running. The exhaust gas is very hot. Periodic inspections To keep your vehicle in the best condition at all times, always have the recommend- ed maintenance services listed in the maintenance schedule in the “Warranty and Maintenance Booklet”...
Page 230: Driving Tips For Awd Vehicles
By shifting power between the front and rear wheels, SUBARU AWD can also provide added traction during acceleration and added engine braking force during decel- eration.
Page 231: Off Road Driving
SUBARU can be driven on ordinary roads or off-road. But please keep in mind that an AWD SUBARU is a passenger car and is nei- ther a conventional off-road vehicle nor an all-terrain vehicle. If you do take your...
Page 232: Winter Driving
“Warranty and Maintenance Booklet”. Remember that damage done to your SUBARU while operating it off-road and not using common sense precautions such as those listed above is not eligible for warranty coverage.
Page 233 SUBARU Windshield Washer Fluid con- tains 58.5% methyl alcohol and 41.5% surfactant, by volume. Its freezing temper- ature varies according to how much it is di- luted, as indicated in the following table.
Page 234: Driving On Snowy And Icy Roads
If your SUBARU is not going to be used for an extended period, it is best to have the fuel tank filled to capacity.
Page 235: Corrosion Protection
8-10 Driving tips wiper blades (winter blades) during the seasons you could have snow and sub- zero temperatures. Blades of this type give superior wiping performance in snowy conditions. Be sure to use blades that are suitable for your vehicle. During high-speed driving, non- freezing type wiper blades may not perform as well as standard wiper...
Page 236: Rocking The Vehicle
speeds below 19 mph (30 km/h). Always use the utmost care when driving with tire chains – overconfidence because you are driving with tire chains could eas- ily lead to a serious accident. Rocking the vehicle If you must rock the vehicle to free it from snow, sand, or mud, depress the acceler- ator pedal slightly and move the selector lever back and forth between “D”...
Page 237: Vehicle Capacity Weight
8-12 Driving tips Do not carry spray cans, containers with flammable or corrosive liquids or any other dangerous items inside the vehicle. NOTE For better fuel economy, do not carry unneeded cargo. Vehicle capacity weight 800220 800221 The load capacity of your vehicle is deter- mined by weight, not by available cargo space.
Page 238: Roof Rail And Crossbar (If Equipped)
In addition, the total weight applied to each axle (GAW) must never exceed the GAWR. The front and rear GAWs can be adjusted by relocating luggage inside the vehicle. Even if the total weight of your luggage is lower than the vehicle capacity weight, ei- ther front or rear GAW may exceed the GAWR, depending on the distribution of the luggage.
Page 239 8-14 Driving tips Removal and installation of the crossbars The crossbars can be removed when you do not use the roof to carry cargo. To remove the crossbar 800222 1) Crossbar end support 2) T-30 torx® head screw 1. Loosen and remove the T-30 torx® head screw from the top of each crossbar end support.
Page 240 FRONT 800224 1) Load label 2) Direction arrow label 3) 6 in (150 mm) 3. With the front direction arrow label on the top right side of the crossbar pointing toward the front of the vehicle, carefully place the crossbar across the top of the vehicle so that the crossbar end supports rest on the top of the roof rails approxi- mately 6 inches (150 mm) rearward in the...
Page 241: Trailer Hitch (If Equipped)
8-16 Driving tips Trailer hitch (if equipped) The trailer hitch is designed to tow a Class 1 rated load. When you tow a trailer, follow the instruc- tions in the next section “Trailer towing”. Never exceed maximum weight specified for the trailer hitch.
Page 242: When You Do Not Tow A Trailer
800228 1) Hitch ball installation point 2) Hooks for safety chains 5. Use only a hitch ball that is appropriate for the ball mount and your trailer. The hitch ball must be securely installed on the ball mount. 6. Connect your trailer to the hitch ball. 7.
Page 243: Trailer Towing
Seek the advice of your SUBARU dealer to assist you in pur- chasing a hitch and other necessary tow- ing equipment appropriate for your vehi- cle.
Page 244 Model Conditions Maximum total trailer weight MT models When towing a 1,000 lbs trailer without (453 kg) brakes. When towing a 2,400 lbs trailer with (1,087 kg) brakes. AT models When towing a 1,000 lbs trailer without (453 kg) brakes. When towing a 2,400 lbs trailer with...
Page 245 8-20 Driving tips Gross Axle Weight (GAW) and Gross Axle Weight Rating (GAWR) 800229 Gross Axle Weight The total weight applied to each axle (GAW) must never exceed the Gross Axle Weight Rating (GAWR). The front and rear GAWs can be adjusted by relocating passengers and luggage inside the vehi- cle.
Page 246: Trailer Hitches
Trailer hitches Choose a proper hitch for your vehicle and trailer. The use of a genuine SUBARU trailer hitch recommended. genuine SUBARU hitch is available from your SUBARU dealer.
Page 247 Your SUBARU’s brake system is not designed to be tapped into the trailer’s hydraulic brake system. Please ask your SUBARU dealer and pro- fessional trailer supplier for more informa- tion about the trailer’s brake system. Adequate size trailer brakes are...
Page 248: Trailer Towing Tips
lights and parking lights each time you hitch up. Direct splicing or other improper connection of trailer lights may damage your vehicle’s electrical system and cause a malfunction of your vehicle’s lighting system. Tires Make sure that all the tires on your vehicle are properly inflated to the pressure spec- ified on the tire placard located on the driv- er’s side center pillar.
Page 249 If the ABS warning light illuminates while the vehicle is in motion, stop towing the trailer and have repairs performed im- mediately by the nearest SUBARU dealer. Driving on grades Before going down a steep hill, slow down and shift into lower gear (if neces-...
Page 250: Driving Tips
8-25 Driving tips sion) and shut off the engine.
Page 252: In Case Of Emergency
In case of emergency If you park your vehicle in case of an emergency ... Temporary spare tire (if equipped) ... Flat tires ... Changing a flat tire ... Jump starting ... How to jump start ... Engine overheating ... 9-10 If steam is coming from the engine compartment ...
Page 253: If You Park Your Vehicle In Case Of An Emergency
In case of emergency If you park your vehicle in In case of emergency case of an emergency 300117 The hazard warning flasher should be used in day or night to warn other drivers when you have to park your vehicle under emergency conditions.
Page 254: Flat Tires
ready for use. The correct pressure is 60 psi (420 kPa, 4.2 kg/cm When using the temporary spare tire, note the following. Do not exceed 50 mph (80 km/h). Do not put a tire chain on the temporary spare tire. Because of the smaller tire size, a tire chain will not fit properly.
Page 255 In case of emergency Always turn off the engine before raising the flat tire off the ground using the jack. Never swing or push the vehicle supported with the jack. The jack can come out of the jacking point due to a jolt and this can result in a severe acci- dent.
Page 256 5. The jack is stored under the left side of the cargo floor. 900003 To take out the jack: Pull the tab to open the lid, turn the jack screw counterclockwise to loosen it, then remove the jack. 900004 To take out the jack handle: Open the rear-left and center lids in the cargo area by pulling their tabs.
Page 257 In case of emergency 900008 8. Insert the jack handle into the jack- screw, and turn the handle until the tire clears the ground. Do not raise the vehicle higher than necessary. 9. Remove the wheel nuts and the flat tire.
Page 258: Jump Starting
900012 14.Store the flat tire in the spare tire com- partment. Put the spacer and tighten the attaching bolt firmly. Also store the jack and wheel nut wrench in their storage locations. Never place a tire or tire changing tools in the passenger compartment after changing wheels.
Page 259: How To Jump Start
In case of emergency How to jump start 1. Make sure the booster battery is 12 volts and the negative terminal is ground- 2. If the booster battery is in another vehi- cle, do not let the two vehicles touch. 3.
Page 260 1) Booster battery 2) Engine lifting bracket In case of emergency 1) Connect one jumper cable to the pos- itive (+) terminal on the discharged bat- tery. 2) Connect the other end of the jumper cable to the positive (+) terminal of the booster battery.
Page 261: Engine Overheating
Towing If towing is necessary, it is best done by your SUBARU dealer or a commercial towing service. Observe the following pro- cedures for safety. 900014 Never tow AWD vehicles (both AT...
Page 262: Towing And Tie-Down Hooks
Towing and tie-down hooks The towing hooks should be used only in an emergency (e.g., to free a stuck vehicle from mud, sand or snow). Front towing hook: 600441 Rear towing hook: 900234 To prevent deformation to the front bumper and the towing hook, do not apply excessive lateral load to the towing hooks.
Page 263: Using A Flat-Bed Truck
9-12 In case of emergency Use only the specified towing hooks and tie-down hooks. Never use suspension parts or other parts of the body for towing or tie- down purposes. Never use the tie-down hook on the underside of the vehicle clos- est to the muffler for towing pur- poses.
Page 264: Rear Gate - If The Rear Gate Cannot Be Unlocked
Rear gate – if the rear gate For vehicles with automatic trans- mission, the traveling speed must cannot be unlocked be limited to less than 20 mph (30 km/h) and the traveling distance In the event that you cannot unlock the to less than 31 miles (50 km).
Page 265: Moonroof - If The Moonroof Cannot Be Closed
2. Insert a hex-headed wrench in the end of the motor shaft. To close the moonroof, turn the wrench counterclockwise. Have your vehicle checked and repaired by an authorized SUBARU dealer. Maintenance tools 900265 Your vehicle is equipped with the following maintenance tools:...
Page 266: Jack And Jack Handle
Jack and jack handle 900003 The jack is stored under the left side of the cargo floor. 900004 The jack handle is stowed under the rear- left and center lids in the cargo area. For how to use the jack, refer to the “Flat tires”...
Page 268: Appearance Care
Appearance care Exterior care ... 10-2 Washing ... Waxing and polishing ... Cleaning aluminum wheels ... Corrosion protection ... 10-3 Most common causes of corrosion ... To help prevent corrosion ... Cleaning the interior ... 10-4 Seat fabric ... Leather seat materials ... Synthetic leather upholstery ...
Page 269: Exterior Care
10-2 Appearance care Exterior care Appearance care Washing When washing the vehicle, the brakes may get wet. As a result, the brake stopping distance will be longer. To dry the brakes, drive the vehicle at a safe speed while lightly pressing the brake pedal to heat up the brakes.
Page 270: Waxing And Polishing
When in doubt, it is always best to contact your SUBARU dealer or an auto paint specialist. NOTE Be careful not to block the windshield washer nozzles with wax when waxing the vehicle.
Page 271: To Help Prevent Corrosion
Contact your SUBARU dealer to perform this kind of maintenance and treatment if you need assistance. Repair chips and scratches in the paint as soon as you find them.
Page 272: Leather Seat Materials
If your SUBARU is to be parked for a long time in bright sunlight, it is recommended that the seats and headrests be covered, or the windows shaded, to prevent fading or shrinkage.
Page 274: Maintenance And Service
Maintenance schedule ... Maintenance precautions ... Before checking or servicing in the engine compartment ... When you do checking or servicing in the engine compartment while the engine is running ... Engine hood ... Engine compartment overview ... Non-turbo models ... Turbo models ...
Page 275 Maintenance and service Replacement of brake pad and lining ... 11-28 Breaking-in of new brake pads and linings ... 11-28 Parking brake stroke ... 11-29 Tires and wheels ... 11-29 Types of tires ... 11-29 Tire inspection ... 11-30 Tire pressures and wear ... 11-30 Wheel balance ...
Page 276: Maintenance Schedule
Maintenance precautions When maintenance and service are re- quired, it is recommended that all work be done by an authorized SUBARU dealer. If you perform maintenance and service by yourself, you should familiarize your- self with the information provided in this section on general maintenance and ser- vice for your SUBARU.
Page 277: Before Checking Or Servicing In The Engine Compartment
NEVER use a circuit tester for these wiring. If your SRS airbag or seatbelt pre- tensioner needs service, consult your nearest SUBARU dealer. Before checking or servicing in the engine compartment Always stop the engine and set the parking brake firmly to pre- vent the vehicle from moving.
Page 278 200747 3. Release the secondary hood release located under the front grille by moving the lever toward the left. 200748 Lift up the hood, release the hood prop from its retainer and put the end of the hood prop into the slot in the hood. To close the hood: 1.
Page 279: Engine Compartment Overview
11-6 Maintenance and service Engine compartment overview Non-turbo models 10) Engine oil level gauge (page 11-8) 11) Engine oil filler cap (page 11-8) 12) Radiator cap (page 11-11) 13) Power steering fluid reservoir (page B00357 Air cleaner element (page 11-15) Manual transmission oil level gauge (MT) (page 11-18) or Differential gear oil level gauge (AT) (page 11-21)
Page 280: Turbo Models
Turbo models 10) Engine oil level gauge (page 11-8) 11) Engine oil filler cap (page 11-8) 12) Radiator cap (page 11-11) 13) Power steering fluid reservoir (page B00358 11-7 Maintenance and service Air cleaner element (page 11-15) Manual transmission oil level gauge (MT) (page 11-18) or Differential gear oil level gauge (AT) (page 11-21) Clutch fluid reservoir (page 11-25)
Page 281: Engine Oil
11-8 Maintenance and service Engine oil Checking the oil level Check the engine oil level at each fuel stop. 1. Park the vehicle on a level surface and stop the engine. B00359 2. Pull out the dipstick, wipe it clean, and insert it again.
Page 282 B00392 4. Open the access cover by removing the eight clips and turning the access cov- er counterclockwise. The drain plug will be exposed. B00404 5. Drain out the engine oil by removing the drain plug while the engine is still warm.
Page 283: Recommended Grade And Viscosity
The following ta- ble lists the recommended viscosities and applicable temperatures. When adding oil, different brands may be used together as long as they are the same API classification and SAE viscosity as those recommended by SUBARU.
Page 284: Recommended Grade And Viscosity Under Severe Driving Conditions
–33°F (–36°C). For adding, use genuine SUBARU coolant or an equivalent: a mixture of 50% soft water and 50% ethylene-glycol basis coolant. Use of improper coolants may result in corrosion in the cooling system. It is...
Page 285: Cooling Fan, Hose And Connections
Check the fuse and replace it if necessary. If the fuse is not blown, have the cooling system checked by your SUBARU dealer. If frequent addition of coolant is neces- sary, there may be a leak in the engine cooling system.
Page 286 2) Fill up to this level 5. Slowly pour the coolant and fill up to just below the filler neck, allowing enough room to add genuine Subaru cooling sys- tem conditioner in the radiator. Add genu- ine Subaru cooling system conditioner un- til the coolant level reaches the filler neck.
Page 287 11-14 Maintenance and service Guideline of coolant quantity (including cool- ant in reservoir tank): Non-turbo models: MT. 7.3 US qt (6.9 liters, 6.1 Imp qt) AT. 7.2 US qt (6.8 liters, 6.0 Imp qt) Turbo models: MT. 7.8 US qt (7.4 liters, 6.5 Imp qt) AT.
Page 288: Air Cleaner Element
“War- ranty and Maintenance Booklet”. Under extremely dusty conditions, replace it more frequently. It is recommended that you always use genuine SUBARU parts. Non-turbo models B00361 1. Unsnap the two clamps holding the air cleaner case cover.
Page 289 11-16 Maintenance and service B00364 5. To install the air cleaner case cover, in- sert the three projections on the air clean- er case into the slits on the air cleaner case cover and then snap the two clamps on the air cleaner case cover. Turbo models B00024 1.
Page 290: Spark Plugs
22 lbs (98 N, 10 kg) midway between the pulleys by using a spring scale. Belt deflection should be the amount specified. If a belt is loose, cracked, or worn, contact your SUBARU dealer. – CONTINUED –...
Page 291: Manual Transmission Oil
11-18 Maintenance and service in (mm) Deflection New belt Used belt 0.28 – 0.35 0.35 – 0.43 (7.0 – 9.0) (9.0 – 11.0) 0.30 – 0.33 0.35 – 0.40 (7.5 – 8.5) (9.0 – 10.0) Manual transmission oil Checking the oil level B00366 Non-turbo models: 1) Yellow handle...
Page 292: Recommended Grade And Viscosity
B00368 1) Upper level 2) Lower level 3. Pull out the dipstick again and check the oil level on it. If it is below the lower level, add oil through the dipstick hole to bring the level up to the upper level. Be careful not to spill manual trans- mission oil when adding it.
Page 293: Recommended Fluid
Recommended fluid Use one of the following types of automat- ic transmission fluid. Genuine Subaru Automatic Transmis- sion Fluid Type-HP IDEMITSU ATF HP Castrol Transmax J Pennzoil ATF-J* * Available only in the USA (except...
Page 294: Front Differential Gear Oil (At Vehicles)
Front differential gear oil (AT vehicles) Checking the oil level B00371 1) Yellow handle Check the differential oil level monthly. 1. Park the vehicle on a level surface and stop the engine. 2. Pull out the dipstick, wipe it clean, and insert it again.
Page 295: Recommended Grade And Viscosity
If the vehicle requires frequent re- filling, there may be an oil leak. If you suspect a problem, have the vehicle checked at your SUBARU dealer. Recommended grade and viscosity Each oil manufacturer has its own base oils and additives.
Page 296: Power Steering Fluid
“MIN” line, add the recommended fluid as necessary to bring the level be- tween the “MIN” and “MAX” line. If the fluid level is extreme low, it may indi- cate possible leakage. Consult your SUBARU dealer for an inspection. – CONTINUED –...
Page 297: Recommended Fluid
If the vehicle requires frequent re- filling, there may be a leak. If you suspect a problem, have the vehi- cle checked at your SUBARU dealer. Never use different brands of brake fluid together. Also, avoid mixing DOT 3 and DOT 4 brake flu- ids even if they are of the same brand.
Page 298: Recommended Brake Fluid
If the vehicle requires frequent re- filling, there may be a leak. If you suspect a problem, have the vehi- cle checked at your SUBARU dealer. Never use different brands of clutch fluid together. When clutch fluid is added, be careful not to allow any dirt into the tank.
Page 299: Recommended Clutch Fluid
Lightly press the brake pedal down with one finger to check the free play with a force of less than 2 lbs (10 N, 1 kg). If the free play is not within proper specifi- cation, contact your SUBARU dealer.
Page 300: Specifications
Turbo models: 0.12 – 0.51 in (3 – 13 Lightly press the clutch pedal down with your finger until you feel resistance, and check the free play. If the free play is not within proper specifi- cation, contact your SUBARU dealer.
Page 301: Hill Holder (Mt Vehicles - If Equipped)
If you hear this scraping noise each time you apply the brake pedal, have the brake pads serviced by your SUBARU dealer as soon as possible. If you continue to drive despite the scraping noise from the audible...
Page 302: Parking Brake Stroke
(approximately 44 lbs, 196 N, 20 kg). If the parking brake lever stroke is not within the specified range, have the brake system checked and adjusted at your SUBARU dealer. 11-29 Maintenance and service Tires and wheels Types of tires You should be familiar with type of tires present on your vehicle.
Page 303: Tire Inspection
Drive slowly nearest authorized SUBARU dealer and have the vehicle inspected. Tire pressures and wear Maintaining the correct tire pressures helps to maximize the tires’ service lives and is essential for good running perfor- mance.
Page 304 Incorrect tire pressures detract from con- trollability and ride comfort, and they cause the tires to wear abnormally. Correct tire pressure (tread worn evenly) B00050 Roadholding is good, and steering is re- sponsive. Rolling resistance is low, so fuel consumption is also lower. Abnormally low tire pressure (tread worn at shoulders) B00051...
Page 305: Wheel Balance
Loss of correct wheel alignment* caus- es the tires to wear on one side and re- duces the vehicle’s running stability. Contact your SUBARU dealer if you no- tice abnormal tire wear. *: The suspension system is designed to hold...
Page 306: Tire Replacement
You are advised to re- place the tires with new ones that are identical to those fitted as standard equip- ment. For safe vehicle operation, SUBARU rec- ommends replacing all four tires at the same time. 11-33...
Page 307: Aluminum Wheels (If Equipped)
When wheel nuts, balance weights, or the center cap is replaced, be sure to re- place them with genuine SUBARU parts designed for aluminum wheels. Windshield washer fluid Never use engine coolant as washer fluid because it could cause paint damage.
Page 308 In areas where water freezes in winter, use an anti-freeze type windshield washer fluid. SUBARU Windshield Washer Fluid contains 58.5% methyl alcohol and 41.5% surfactant, by volume. Its freezing temper- ature varies according to how much it is di- luted, as indicated in the following table.
Page 309: Replacement Of Wiper Blades
11-36 Maintenance and service Replacement of wiper blades Grease, wax, insects, or other material on the windshield or the wiper blade results in jerky wiper operation and streaking on the glass. If you cannot remove the streaks af- ter operating the windshield washer or if the wiper operation is jerky, clean the out- er surface of the windshield (or rear win- dow) and the wiper blades using a sponge...
Page 310: Rear Window Wiper Blade
B00331 1) Metal spines 4. If the new blade rubber is not provided with two metal spines, remove the metal spines from the old blade rubber and in- stall them in the new blade rubber. B00059 5. Align the claws of the metal support with the grooves in the rubber and slide the blade rubber assembly into the metal support until it locks.
Page 311 11-38 Maintenance and service B00381 1) Plastic support 4. Pull out the end of the blade rubber as- sembly to unlock it from the plastic sup- port. B00064 5. Pull the blade rubber assembly out of the plastic support. B00333 1) Metal spines 6.
Page 312: Battery
ber is not retained properly, the wiper may scratch the rear window glass. 8. Install the wiper blade assembly to the wiper arm. Make sure that it locks in place. 9. Lower the wiper arm. Battery Before beginning work on or near any battery, be sure to extinguish all cigarettes, matches, and light- ers.
Page 313: Fuses
11-40 Maintenance and service B00382 1) Cap 2) Upper level 3) Lower level It is unnecessary to periodically check the battery fluid level or periodically refill with distilled water. However, if the battery fluid level is below the lower level, remove the cap. Fill to the upper level with distilled water.
Page 314: Main Fuse
6. If the same fuse blows again, this indi- cates that its system has a problem. Con- tact your SUBARU dealer for repairs. 11-41 Maintenance and service Main fuse...
Page 315: Installation Of Accessories
11-42 Maintenance and service Installation of accessories Always consult your SUBARU dealer be- fore installing fog lights or any other elec- trical equipment in your vehicle. Such ac- cessories may cause the electronic sys- tem to malfunction if they are incorrectly installed or if they are not suited for the ve- hicle.
Page 316: Replacing Bulbs
11-43 Maintenance and service Replacing bulbs 9 10 B00384 – CONTINUED –...
Page 317: Headlights (Canada-Spec. 2.5Xt)
For replacement of the headlight bulbs (low-beam and high-beam), re- moval and installation of the head- light assemblies, and removal of headlight-assembly contact your SUBARU dealer. components. components,...
Page 318: Headlights (Except Canada-Spec. 2.5Xt)
NOTE If headlight aiming is required, con- sult your SUBARU dealer for proper adjustment of the headlight aim. It may be difficult to replace the bulbs. Have your SUBARU dealer re- place the bulbs if necessary.
Page 319: Rear Combination Lights
11-46 Maintenance and service B00387 3. Disconnect the electrical connector from the bulb. 4. Install a new bulb into the electrical connector, then set the retainer spring se- curely. 5. Install the bulb cover. High beam light bulbs 700093 1. Disconnect the electrical connector from the bulb.
Page 320: License Plate Light
B00390 1) Tail/stop light 2) Backup light 3) Rear turn signal light 4) Tail/stop light 2. Remove the bulb holder from the rear combination light assembly by turning it counterclockwise. 3. Pull the bulb from the holder. Install a new bulb. 4.
Page 321: High Mount Stop Light
3. Pull the bulb from the socket. Install a new bulb. 4. Reinstall the cover. 5. Tighten the mounting screws then rein- stall the covers. NOTE Other bulbs may be difficult to replace. Have your SUBARU dealer replace these bulbs if necessary.
Page 322: Specifications
Specifications Specifications ... 12-2 Dimensions ... Engine ... Electrical system ... Capacities ... Tires ... Wheel alignment ... Fuses and circuits ... 12-6 Fuse panel located behind the instrument panel ... Fuse panel located in the engine compartment .. Bulb chart ... 12-9 Vehicle identification ...
Page 323: Specifications
12-2 Specifications Specifications These specifications are subject to change without notice. Dimensions Item Drive system Transmission type Overall length Overall width Overall height Wheel base Tread Front Rear Ground clearance* *1: Measured with vehicle empty AT: Automatic transmission MT: Manual transmission 2.5-liter non-turbo models 176.6 (4,485) 68.3 (1,735)
Page 324: Specifications
Engine Engine model EJ253 (2.5-liter, SOHC, non-turbo) Engine type Displacement cc (cu-in) Bore × Stroke in (mm) Compression ratio Firing order Electrical system Battery type and capacity (5HR) Manual transmission Automatic transmission Alternator 2.5-liter turbo models 2.5-liter non-turbo models Spark plugs 2.5-liter non-turbo models 2.5-liter turbo models EJ255 (2.5-liter, DOHC, turbo)
Page 325: Capacities
12-4 Specifications Capacities Fuel tank Engine oil Transmission oil Front differential gear oil (AT vehicles) Rear differential gear oil Power steering fluid Engine coolant 2.5-liter non-turbo models MT 2.5-liter turbo models AT: Automatic transmission MT: Manual transmission 15.9 US gal (60 liters, 13.2 Imp gal) 4.2 US qt (4.0 liters, 3.5 Imp qt) 3.7 US qt (3.5 liters, 3.1 Imp qt) 9.8 US qt (9.3 liters, 8.2 Imp qt)
Page 326: Tires
Tires Tire size Wheel size Pressure Front Rear Temporary spare tire Size Pressure Wheel alignment Item Drive system Front Rear Camber Front Rear P215/60R16 94H 16 × 6 Light load 29 psi (200 kPa, 2.0 kgf/cm Full load 29 psi (200 kPa, 2.0 kgf/cm Light load 28 psi (190 kPa, 1.9 kgf/cm Full load...
Page 327: Fuses And Circuits
12-6 Specifications Fuses and circuits Fuse panel located behind the instrument pan- Fuse panel Fuse rating Empty 20 21 22 23 C00000 Circuit Heater fan Heater fan Power door lock Remote keyless entry Cigarette lighter Remote controlled rear view mirrors Tail light Parking light SRS airbag...
Page 328: Fuse Panel Located In The Engine Compartment
Fuse panel Fuse rating Circuit Meter Windshield wiper and washer Brake light Air conditioner Backup light Cruise control Power outlet (cargo) Rear window wiper and washer Ignition coil (Non-turbo model only) Seat heater Empty Specifications Fuse panel located in the engine compartment 10 11 12 13 A) FWD socket (AT models without Vehicle Dynamics Control sys- tem)
Page 329 12-8 Specifications Fuse panel Fuse rating Circuit Radiator cooling fan (Main) Radiator cooling fan (Sub) Vehicle Dynamics Control system (Models with Vehicle Dynamics Control system only) ABS motor Engine sensor (Non-turbo models only) Rear window defogger Hazard warning flasher Horn Turn signal lights Automatic transmission control unit Alternator...
Page 330: Bulb Chart
Bulb chart Description Wattage Headlight High beam 12V-60W Low beam Canada-spec. 2.5XT 12V-35W All except Canada- 12V-55W spec. 2.5XT Front fog light 12V-55W Front turn signal 12V-21W Parking light 12V-5W Side marker light (Front) 12V-5W Rear combination light Tail/stop light 12V-21/5W Turn signal 12V-21W (Amber) 1474...
Page 331: Vehicle Identification
12-10 Specifications Vehicle identification Vehicle identification number Emission control label Vehicle identification number plate Tire inflation pressure plate Certification plate Bar cord label (U.S. only) Model number plate Radio noise label (Canada only) Fuel label C00112...
Page 332: Consumer Information And Reporting Safety Defects
Consumer information and Reporting safety defects Tire information ... 13-2 Uniform tire quality grading standards ... 13-12 Reporting safety defects (USA) ... 13-13 Tire labeling ... Recommended tire inflation pressure ... Glossary of tire terminology ... Tire care – maintenance and safety practices ... Vehicle load limit –...
Page 333: Index
13-2 Consumer information and Reporting safety defects For U.S.A. Consumer information and Reporting safety defects The following information has been com- piled according to Code of Federal Regu- lations “Title 49, Part 575”. Tire information Tire labeling Many markings (e.g. Tire size, Tire Identification Number or TIN) are placed on the sidewall of a tire by tire manufacturers.
Page 334 which specifies the maximum load a tire can carry at the speed indicated by its speed symbol, at maximum in- flation pressure. For example, “94” means 1,477 lbs (670 kg). Load indices apply only to the tire, not to the vehicle. Putting a load rated tire on any vehicle does not mean the vehicle can be loaded up to the tire’s rated...
Page 335 13-4 Consumer information and Reporting safety defects Maximum load rating applies only to the tire, not to the vehi- cle. Putting a load rated tire on any vehicle does not mean the vehicle can be loaded up to the tire’s rated load. Construction type Applicable construction of this tire.
Page 336: Recommended Tire Inflation Pressure
Recommended tire inflation pressure Recommended cold tire inflation pressure Recommended cold tire inflation pressure for your vehicle’s tires is as follows, Tire size Wheel size Pressure Front Light load Full load Rear Light load Full load Trailer towing Temporary spare Size tire Pressure...
Page 337: Glossary Of Tire Terminology
13-6 Consumer information and Reporting safety defects Vehicle placard 800221 The vehicle placard is affixed to the driver’s side door pillar. Example: D00115 The vehicle placard shows original tire size, recommended cold tire infla- tion pressure on each tire at maxi- mum loaded vehicle weight, seating capacity and loading information.
Page 338: Tire Care - Maintenance And Safety Practices
asymmetrical tire that has a particu- lar side that must always face out- ward when mounting on a vehicle. Accessory weight The combined weight (in excess of those standard items which may be replaced) of floor mats, leather seats and cross bars to the extent that these items are available as factory-in- stalled equipment (whether installed or not).
Page 339: Vehicle Load Limit - How To Determine
13-8 Consumer information and Reporting safety defects Vehicle load limit – how to de- termine The load capacity of your vehicle is determined by weight, not by avail- able cargo space. The load limit of your vehicle is shown on the vehicle placard attached to the driver’s side B-pillar.
Page 340 Example 1B D00107 For example, if a person weighing 176 lbs (80 kg) now enters the same vehi- cle (bringing the number of occupants to two), the calculations are as fol- lows: 1. Calculate the total weight. Total weight = 154 lbs (70 kg) + 176 lbs (80 kg) (Occupant) + 662 lbs (300 kg) (Cargo)
Page 341: Determining Compatibility Of Tire And Vehicle Load Capacities
13-10 Consumer information and Reporting safety defects 3. The result of step 2 shows that a further 162 lbs (73 kg) of cargo can be carried. Example 2B D00109 For example, if a person weighing 143 lbs (65 kg) and a child weighing 40 lbs (18 kg) now enter the same vehicle (bringing the number of occupants to three), and a child restraint system...
Page 342: Adverse Safety Consequences Of Overloading On Handling And Stopping And On Tires
suspension, axles and other parts of the body. Therefore, this means that the vehicle cannot necessarily be loaded up to the tire’s maximum load rating on the tire sidewall. Adverse safety consequenc- es of overloading on handling and stopping and on tires Overloading could affect vehicle han- dling, stopping distance, vehicle and tire as shown in the following.
Page 343: Uniform Tire Quality Grading Standards
13-12 Consumer information and Reporting safety defects Uniform tire quality grading standards This information indicates the relative performance of passenger car tires in the area of treadwear, traction, and temperature resistance. This is to aid the consumer in making an informed choice in the purchase of tires.
Page 344: Reporting Safety Defects (Usa)
However, NHTSA can- not become involved in individual problems between you, your deal- er, or Subaru of America, Inc. To contact NHTSA, you may either call the Auto Safety Hotline toll- free at 1-800-424-9393 (or 366- 0123 in the Washington D.C.
Page 346: Index
Index...
Page 347 14-2 Index ABS ... 7-16 Warning light ... 3-12, 7-17 Accessory power outlets ... 6-8 Active head restraint ... 1-6 Air cleaner element ... 11-15 Air filtration system ... 4-12 Alarm system ... 2-12 All-Wheel Drive warning light (AT vehicles) ... 3-15 Aluminum wheel ...
Page 348 Chime Key ... 3-5 Seatbelt ... 1-12, 3-9 Cigarette lighter socket ... 6-9 Clock ... 3-17 Clutch (MT) Fluid ... 11-25 Pedal ... 11-27 Coat hook ... 6-12 Convenience net ... 6-6 Coolant ... 11-12 Cooling system ... 11-11 Corrosion protection ... 8-10, 10-3 Cruise control ...
Page 349 14-4 Index Front fog light button ... 3-21 Front seatbelt pretensioners ... 1-20 Front seats ... 1-2 Fore and aft adjustment ... 1-3, 1-4 Reclining ... 1-3, 1-5 Fuel ... 7-2 Economy hints ... 8-2 Filler lid and cap ... 7-3 Requirements ...
Page 350 Main fuse ... 11-41 Maintenance Precautions ... 11-3 Schedule ... 11-3 Seatbelt ... 1-19 Tools ... 9-14 Malfunction indicator lamp ... 3-11 Manual Climate control system ... 4-3 Seat ... 1-3 Transmission ... 7-9 Transmission oil ... 11-18 Map lights ... 6-3 Maximum load limits ...
Page 351 14-6 Index Battery (remote keyless entry) ... 2-8 Bulbs ... 11-43 Transmitters ... 2-9 Rocking the vehicle ... 8-11 Roof rail and crossbar ... 8-13 Safety Precautions when driving ... 4 Symbol ... 2 Warnings ... 2 Seat height adjustment (drivers seat) ... 1-4 Seatbelt ...
Page 352 Hitch ... 8-16, 8-21 Towing ... 8-18 Towing tips ... 8-23 Turn signal indicator lights ... 3-16 Turn signal lever ... 3-20 Under-floor storage compartment ... 6-14 Valet mode ... 2-15 Vanity mirror ... 6-3 Vehicle Capacity weight ... 8-12 Identification ...
Page 354 134...
Page 355: Gas Station Reference
Fuel: Non-turbo models Use only unleaded gasoline with an octane rating of 87 AKI or higher. Turbo models Use premium unleaded gasoline with an octane rating of 91 AKI or higher. If premium unleaded gasoline is not available, regular un- leaded gasoline with octane rating of 87 AKI or higher may be tem- porarily used.

This manual is also suitable for:

Forester 2006

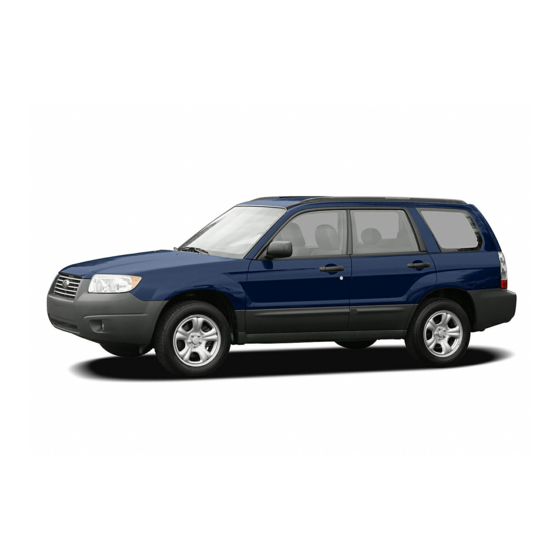

Subaru 2006 Forester Owner's Manual

Table of Contents

Seat, Seatbelt and Srs Airbags

Front Seats

Seat Heater (if Equipped)

Rear Seats

Armrest (if Equipped)

Seatbelts

Seatbelt Extender

Front Seatbelt Pretensioners

Child Restraint Systems

SRS Airbag (Supplemental Restraint System Airbag)

Keys and Doors

Keys

Immobilizer (if Equipped)

Door Locks

Power Door Locking Switches

Remote Keyless Entry System

Alarm System

Windows

Child Safety Locks

Rear Gate

Moonroof (if Equipped)

Instruments and Controls

Climate Control

Ventilator

Manual Climate Control System (if Equipped)

Automatic Climate Control System (if Equipped)

Operating Tips for Heater and Air Conditioner

Air Filtration System (if Equipped)

Audio

Antenna System

Installation of Accessories

Audio Set

Type a Audio Set (if Equipped)

Type B Audio Set (if Equipped)

In-Dash 6 CD Auto Changer (if Equipped)

Precautions to Observe When Handling a Compact Disc

Interior Equipment

Interior Lights

Map Lights

Sun Visors

Storage Compartments

Cup Holders

Accessory Power Outlets

Cigarette Lighter Socket

Ashtray

Floor Mat

Cargo Area Cover (if Equipped)

Coat Hook

Shopping Bag Hook

Cargo Tie-Down Hooks

Under-Floor Storage Compartment

Cargo Area Bars

Starting and Operating

Fuel

State Emission Testing (U.S. Only)

Preparing to Drive

Starting the Engine

Stopping the Engine

Manual Transmission

Automatic Transmission

Rear Viscous Limited Slip Differential (LSD) (if Equipped)

Braking

Power Steering

ABS (Anti-Lock Brake System)

Electronic Brake Force Distribution (EBD) System (if Equipped)

Vehicle Dynamics Control System (if Equipped)

Parking Your Vehicle

Hill Holder (Manual Transmission - if Equipped)

Cruise Control

Self-Leveling Rear Suspension (if Equipped)

Driving Tips

In Case of Emergency

Temporary Spare Tire (if Equipped)

If You Park Your Vehicle in Case of an Emergency

Flat Tires

Jump Starting

Towing

Engine Overheating
