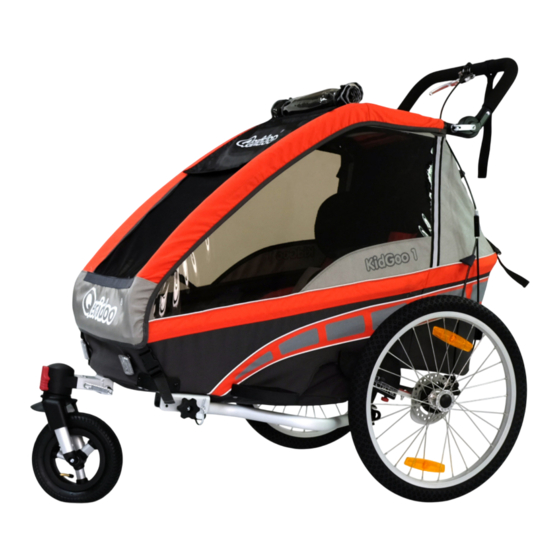

- Page 1 User manual KidGoo1 – Q8000-S This product fulfils all safety requirements of the European standard for bicycles and bicycle trailers (DIN EN 15918).
- Page 2 When necessary, individual items of information can be changed quickly and without special notification. This documentation can be ordered from Qeridoo GmbH in other languages, or is available for download on our website if already available. Visit us at: www.qeridoo.com...
-
Page 3: Table Of Contents
Installing the buggy wheel Appendix Mounting the tow bar Technical data Mounting the coupler onto a bicycle Warranty terms Installing optional accessories Support information Adaptor for baby seat of Class 0+ Spare parts Subject to change. – 05|2016 – 3 KidGoo1 – Q8000-S... -
Page 4: Introduction
1 month Maximum age 6 years Size Maximum height 117 cm Requirements for baggage Storage space (behind the seat) 5 kg Pouch for small items (under the push handle) 2 kg 4 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 5: Notes On The User Manual
The tow bar is therefore in front, the push handle behind. In this user manual, the word user refers to the person transporting a child with the KidGoo1 making the necessary adjustments on the vehicle. Subject to change. – 05|2016 – 5 KidGoo1 – Q8000-S... -
Page 6: Safety Instructions
ƒ protects the child from insects and small stones. When in traffic, the weather canopy should also be closed and the ventilation window open to provide protection against exhaust fumes. 6 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 7: Passenger
“Care and maintenance” on page Install and use only original accessories and spare parts manufactured or recommended by ƒ Qeridoo. Using other products relieves the manufacturer of liability. Only carry out structural modifications or extensions to the vehicle which are necessary for ƒ... -
Page 8: Cycling With A Trailer
Always ride defensively and with foresight. ƒ Brake in good time before reaching bends, junctions, obstacles etc. ƒ Always negotiate curbs and uneven surfaces slowly. Keep away from steps, escalators and very ƒ steep stretches. 8 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 9: Product Overview
Remove the packaging material and all protective caps, and dispose of them in accordance with the environmental guidelines that apply in your region. Read the chapter “Assembly” on page 19 before you assemble parts. Subject to change. – 05|2016 – 9 KidGoo1 – Q8000-S... -
Page 10: Components And Control Elements
(Schrader valve) and spoke reflector Trailer mode: Buggy wheel removed (orange) Wheel mount on the cabin frame Rubber cap for push-in axle release when Front reflector, white mounting the wheels 10 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 11: Rear View
Brake cable to disc brake on the wheel Harness to open the storage space cover axle Loop to fasten the brake cable (2 in total) Pennant pouch for holding the pennant staff (inside) Subject to change. – 05|2016 – 11 KidGoo1 – Q8000-S... -
Page 12: Accessories
Art. no.: 7776-14 Adaptor for baby seat (Class 0+) Art. no.: AD-800 Baby seat (Class 0+) 1298 Art. no.: Baby seat 12578 Art. no.: Baby seat, variable-length Art. no.: BS.04.013.00 12 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... - Page 13 Art. no.: S-58697 Seat cushion Art. no.: SI-5555 Rain cover Art. no.: JR-8-1 Folding garage Art. no.: 035689 You can find our current list of dealers on the Internet at: http://qeridoo.com/index.php/en/haendlersuche-english Subject to change. – 05|2016 – 13 KidGoo1 – Q8000-S...
-
Page 14: Assembly
In the as-delivered state, the wheel axle and the push handle are connected via the brake cable. To avoid damaging it, you should place the push handle on the floor behind the cabin when assembling the wheel axle. 14 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 15: Securing The Wheel Axle
Mount the cover to the cabin frame using three screws. Ensure that the screws are only tightened enough using a Phillips screwdriver, so that the cover does not get damaged. Mount the second cover in the same way. Subject to change. – 05|2016 – 15 KidGoo1 – Q8000-S... -
Page 16: Fitting The Wheel Guard
Insert the two ends of the push handle into the tube ends at the cabin roof. Caution! Avoid twisting the brake cable. It should be possible to lay it towards the wheel axle after assembly of the push handle. 16 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 17: Relocating Brake Cable
Pull on the wheel to check that the wheel is locked in the axle retainer. Turn the cabin onto its other side and insert the second wheel in the same way. Subject to change. – 05|2016 – 17 KidGoo1 – Q8000-S... -
Page 18: Tightening The Backrest
Insert the extended pennant staff into the pennant pouch on the inner left side. Unroll the pennant so that it can fly clearly visible on the pennant staff. 18 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 19: Optional Assembly Steps
Place the spring lock washer and the washer on the outside onto the screw and screw the star grip nut loosely into the thread. Subject to change. – 05|2016 – 19 KidGoo1 – Q8000-S... -
Page 20: Mounting The Coupler Onto A Bicycle
Place the large hole of the coupler onto the left – side of the rear wheel axle so that the coupler is facing outwards. Screw on the dedicated nut and tighten it slightly. – 20 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 21: Installing Optional Accessories
KidGoo1 The adapter is screwed tightly into the cabin frame; the click system of the adapter is compatible with models from Maxi Cosi and the Qeridoo baby seat 0+ 1298). art. no. The adapter set contains a screw set and the following... - Page 22 – ends of the holding rods. Place 2 screws each from the top through the holding rods into the horizontal bars. Place the self-locking nuts from underneath and tighten them. 22 – 05|2016 – Subject to change. KidGoo1 – Q8000-S...
- Page 23 Before beginning your ride, close the safety harness of the adapter to secure the baby seat additionally. Operate the as usual and regularly check the KidGoo1 screw connections for a tight seat. Subject to change. – 05|2016 – 23 KidGoo1 – Q8000-S...
-
Page 24: Utilisation
KidGoo1 To release the parking brake, pull the brake lever towards the push handle again. As soon as locking pin jumps upwards, you can operate the brake as normal. 24 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 25: Adjusting The Brake
Check first what effect the change has had, see “Checking the brake effect” on page Adjust further adjustment screws as required until the brake pulls properly and evenly. Subject to change. – 05|2016 – 25 KidGoo1 – Q8000-S... -
Page 26: Adjusting The Push Handle
Danger! Before every journey, make sure that necessary adjustments have been made for the particular mode. For details of this, see the instructions in the following sections. 26 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 27: Adjusting The Buggy Wheel
In Trailer mode, you should always fold the push handle into its highest position so that it can provide maximum safety as a roll-bar, see “Adjusting the push handle” on page Subject to change. – 05|2016 – 27 KidGoo1 – Q8000-S... -
Page 28: Attaching The Hand Strap
Release the harness catch by pressing the pushbutton. – Pull the two-part tongue out of the harness catch. – Detach the two parts of the tongue and pull the two harnesses apart. – 28 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 29: Fastening In A Child
Distribute the load evenly across the width of the KidGoo1 Check the tow bar load before every journey with a trailer. Tow bar loads outside the permitted range of 3 – 8 kg cause critical handling performance. Subject to change. – 05|2016 – 29 KidGoo1 – Q8000-S... -
Page 30: Connecting The Trailer To A Bicycle
The child is wearing a bicycle helmet and is properly fastened in. ƒ The buggy wheel has been removed. ƒ The tow bar load has been checked and is within the permissible range (3 – 8 kg). ƒ 30 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 31: Using The Comfort Functions
The outer skin of the 2-in-1 canopy is comprised of a durable transparent sheet and can be ƒ rolled up. It provides protection against rain and strong winds, and dissipates exhaust gases out of the cabin. Subject to change. – 05|2016 – 31 KidGoo1 – Q8000-S... - Page 32 To close, secure the cover with the Velcro fastener again. Danger! Open the ventilation windows on hot days or in heavy traffic in order to remove warm air or exhaust fumes from the cabin more quickly. 32 – 05|2016 – Subject to change. KidGoo1 – Q8000-S...
-
Page 33: Adjusting The Suspension
Move the clamp to the back (36 – 44 kg) if you have – a larger child and are transporting a lot of luggage (hard suspension). Tighten the red knurled screw and set the other leaf suspension to the same value. Subject to change. – 05|2016 – 33 KidGoo1 – Q8000-S... -
Page 34: Storage
Fold up the cabin by pressing both sides of the rear cabin frame all the way down. In order to take up less space, you can also fold in the push handle and remove the wheels. 34 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 35: Care And Maintenance
The storage location should be dry, well ventilated and protected against direct sunlight. ƒ At higher storage temperatures, you should store the wheels separately from the cabin ƒ because the tyres’ rubber can cause odours. Use a Qeridoo folding garage if the must be kept outdoors, see “Accessories” on ƒ KidGoo1 page Subject to change. -
Page 36: Maintenance Intervals
Check whether the tow bar, coupler and buggy wheel and their attachments are technically ƒ Check that all screw and cotter pin connections are secure. ƒ Check the condition of the wheels. Replace covers and hoses in good time. ƒ 36 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 37: Semi-Annually (Or Every 500 Km)
Clean the inside and outside of the cabin thoroughly. ƒ Every three years (or every 3000 km) Have a full inspection carried out by a specialist workshop no later than every three years. Subject to change. – 05|2016 – 37 KidGoo1 – Q8000-S... -
Page 38: Appendix
8,5"-wheel (pneumatic tyre) Valve type Car valve (Schrader) Maximum air pressure 2 bar Ambient conditions Storage location dry, ventilated, no direct sunlight Temperature range for storage -23 °C – 65 °C 38 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... -
Page 39: Warranty Terms
Under no circumstances shall Qeridoo be liable for material damage or injury attributable to improper assembly, the intentional alteration of components or the non-observance of warning and maintenance notices. -
Page 40: Spare Parts
Connecting piece roof support FX folding system rod FR578 Plastic cover for rear rod PKU-Q8 Lower frame rod 6R-77 20'' wheel (with mount for disc brake) R148-S Rubber cap DECK-88 40 – 05|2016 – Subject to change. KidGoo1 – Q8000-S... - Page 41 GRT-899 Art. no.: BEZ-KD-8 Cover, top part Harness fastener (blue, red, green) Art. no.: SCHL-QH8 VER-KD-8 Art. no.: Sun visor Toggle fastener with strap Art. no.: SON-Q8 Art. no.: KÖRD-55 Subject to change. – 05|2016 – 41 KidGoo1 – Q8000-S...
- Page 42 Quick-release clamp (push Plastic holder front for roof handle) frame rods Art. no.: HGR-0877L Art. no.: PLK-Q8 20" hose Connecting piece for rear rod Art. no.: 789SCH Art. no.: 3R-88 42 – 05|2016 – Subject to change. KidGoo1 – Q8000-S...
- Page 43 Art. no.: Folding handle (lock of the FX folding system) Art. no.: FRJ-Q8 Screw set (1 set with all the required assembly screws) Art. no.: SCHR-Q8 Spacer Art. no.: DIST-555 Subject to change. – 05|2016 – 43 KidGoo1 – Q8000-S...
- Page 44 KidGoo1 – Q8000-S Qeridoo GmbH Reutherstraße 3, 53773 Hennef (Sieg) Germany www.qeridoo.com info@qeridoo.com...
