Summary of Contents for QERIDOO Kidgoo1 2019

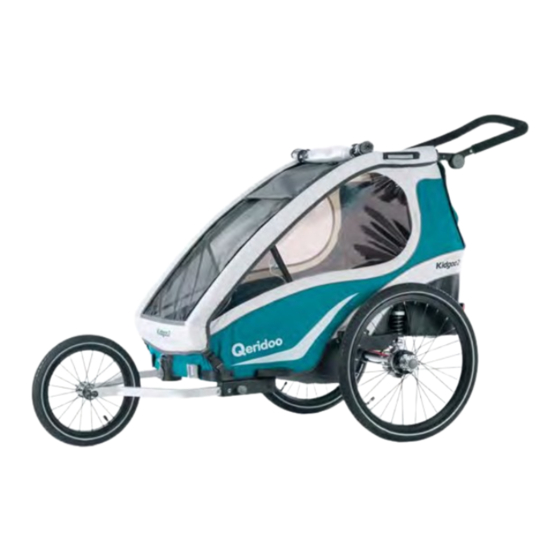

- Page 1 User manual Q8-19-AN Q8-19-AQ Q9-19-AN Q9-19-AQ Q8S-19-AN Kidgoo1 2019 Q8S-19-AQ Q9S-19-AN Kidgoo2 2019 Q9S-19-AQ GERMAN ENGINEERING DESIGN This product fulfils all safety requirements of the European standard for bicycles and bicycle trailers (DIN EN 15918).
- Page 2 When necessary, individual items of information can be changed quickly and without special notification. This documentation can be ordered from Qeridoo GmbH in other languages, or is available for download on our website if already available. Visit us at: www.qeridoo.de...
-
Page 3: Table Of Contents
Contents Introduction Utilisation Proper use Setting the mode Performance limits Adjusting the buggy wheel Notes on the user manual Insert tow bar Using the pennant Safety instructions Attaching the hand strap Users Putting on the 5-point safety harness Conditions of use Securing the load Passenger Loading the baggage... -
Page 4: Introduction
Introduction Proper use Kidgoo was designed as a bicycle trailer and comes with an additional buggy, walker and jogger function. For Trailer mode, use a tow bar with coupler to connect the trailer to a suitable towing vehicle (bicycle or motorised pedelec with a maximum speed of 25 km/h). With the buggy wheel attached, the Kidgoo can be used as a child carrier in Buggy mode. -
Page 5: Notes On The User Manual
Introduction MAX. MAX. Size MAX. MAX. Children may be transported up to a maximum size where the head or helmet does not exceed the maximum line on the backrest. The following additional restrictions apply to Trailer mode: Requirements for the tow bar Kidgoo1 &... -
Page 6: Safety Instructions
6 years. Special accessories must be used in order to secure children who are under 6 months old or who cannot sit upright independently, see www.qeridoo.de/zubehoer. The child's head or helmet must not exceed the maximum line on the backrest in order to have ƒ... -
Page 7: Towing Vehicle (Trailer Mode)
Install and use only original accessories and spare parts manufactured or recommended by ƒ Qeridoo. Using other products relieves the manufacturer of liability. Only carry out structural modifications or extensions to the vehicle which are necessary ƒ for the use of the approved accessories in accordance with the assembly instructions. Any further manipulation that is not expressly approved by the manufacturer in writing relieves the manufacturer of liability in the event of accidents and defects. -
Page 8: Additional Lanes
Safety instructions Additional lanes The two wheels of the Kidgoo run outside the familiar cycling lane. On all routes, particularly when ƒ there are obstacles and potholes, remember that you will always need 3 suitable lanes for safe riding. Kidgoo1 is 72 cm and the Kidgoo2 is 82 cm wide. -
Page 9: Product Overview
8 Assembling kit wheel mount, M5 quick-re- lease adapter and tool * The disc brake set is an accessory developed by Qeridoo. The disc brake set is not included in the certification of the trailer. The scope of delivery includes some functional units of the Kidgoo already preassembled. -
Page 10: Components And Control Elements
Product overview Components and control elements Side view 1 Cabin (frame made from aluminium tubes 11 Buggy wheel for three-wheel use in Buggy or with weatherproof fabric cover) Walker mode 2 Side window (incl. ventilation window) 12 Wheel mount on the cabin frame Operating mode switch:Buggy mode: 3 Canopy with insect, plash water and sun rotatable wheel... - Page 11 Product overview Components and control elements Rear view 1 Pushbutton for adjusting the height of the 11 Wheel axle with parking brake and suspen- push handle (both sides) sion 2 Loop for fastening the pennant 12 Parking brake brake lever 3 Push handle with safety function as impact 13 Coupler pocket with cotter pin fastening and protection...
-
Page 12: Assembly
Assembly Below you can read all the information that you will need to assemble your Kidgoo properly. For a better demonstration of some assembly steps, the fabric cover of the trailer has been removed from the pho- tos and the instruction video, this is not necessary for the assembly. Make sure that you have sufficient space to assemble it. -
Page 13: Mounting The Brake Pedal
Assembly Mounting the brake pedal Tilt the cabin backwards and place it on its roof surface. This makes the lower cabin frame acces- sible for installation. Loosen the screws on the brake pedal holder of the axle using a size 4 hex key. Insert the brake pedal into the receptacle. -
Page 14: Installing The Head Protectors
Assembly Slide the leaf spring cover onto the slide holder as shown in the picture. Be sure that the fixing mechanism locks audibly. Repeat the procedure on the other side of the trailer. Installing the head protectors The head protectors serve as additional side protection in case the trailer should tip over. Slide the head protector onto the slide holder as shown in the picture. -
Page 15: Inserting The Wheels
Assembly Inserting the wheels Remove the black rubber caps from the ends of the thru-axles and then dispose of them. Lift the cabin a little bit or place the cabin on its roof in order to install the wheel easier. Insert one wheel into the cabin’s axle retainer: Hold the wheel so that you can press your thumb onto –... -
Page 16: Optional Assembly Steps
Assembly Using the connecting piece, insert the pennant staff into the extension rod. Insert the extended pennant pole through the loop on the left head protector and secure the position by inserting the pennant pole into the recess on the left leaf suspen- sion cover. -
Page 17: Installing The Jogger Wheel
Assembly Release the button on the tow bar so that the locking bolt secures the tow bar in the tow bar mount. Release the locking knob so that it jumps back into the closed position and additionally secures the tow bar. Tip! You do not have to remove the tow bar completely. - Page 18 Assembly Insert the wheel axle through the hub of the jogger wheel. Loosen the second nut of the wheel axle of the jogger air wheel. This allows the axle to be aligned. Align the axle exactly in the centre and then fix the axle again by tightening the two nuts from the left and right.
-
Page 19: Mounting The Coupler Onto A Bicycle
The provided universal coupler is suitable for mounting on the most rear-wheel models. If it does not fit your bicycle, find a suitable adapter and special couplers in our manuals on the following website: www.qeridoo.de/kupplungsleitfaden Kidgoo 2019 Subject to change. – 06|2019 – 19... -
Page 20: Installing The Rear Light
Assembly Caution! Do not use a tool that has previously been in contact with conventional steel. Smallest steel particles could be transferred that could lead to contact corrosion. Installing the rear light In trailer mode, a certified rear light must be used during poor visibility or darkness in accordance with the Road Traffic Licensing Requirements. -
Page 21: Applying The Parking Brake
Utilisation Below you will find all the information for adapting the Kidgoo to the required modes and to allow you to use all the convenience functions. Applying the parking brake Danger! Apply the parking brake to secure the Kidgoo in order to prevent it from rolling away. Also remember to release it before you set off. -
Page 22: Utilisation
Utilisation Setting the mode You can use the Kidgoo in one of the following modes: Trailer mode: Carrying children in the Kidgoo when cycling ƒ Buggy mode: Using the Kidgoo like a buggy ƒ Walker mode: Carrying children in the Kidgoo when walking ƒ... -
Page 23: Adjusting The Buggy Wheel
Utilisation Adjusting the buggy wheel You must make the following settings, depending on the mode. Removing the buggy wheel (Trailer mode) The buggy wheel must not be fitted in Trailer mode, because in certain riding situations it can make contact and cause serious accidents. Slightly lift the cabin at the front. -
Page 24: Securing The Load
Utilisation Securing the load Loading the baggage Loading the storage space Undo the magnetic closure of the storage space cover and lift it. Pack larger items such as bags, toys or coats in the storage space. Also use the inside pocket which is integrated into the cover. -
Page 25: Strapping In Children
Utilisation If necessary, adjust the head rests by securing them to the seats at a different height with the Velcro strips. Tip! A balanced load distribution is particularly important in Trailer mode. If the two children differ greatly in terms of their weight, you should therefore put the heavier child in the right- hand seat. -
Page 26: Adjusting The Seat System
Utilisation Danger! Before every journey, check that the safety harnesses and harness catches are sitting cor- rectly. Failure of the restraining function can result in serious or even fatal injuries in the event of an accident. Start driving only when all children either wear a cycling helmet or use a head rest and are properly belted. -
Page 27: Mid Sitting Position (Kidgoo2)
Utilisation Mid sitting position (Kidgoo2) To achieve optimum load distribution, it is important for the load’s centre of gravity to be approximately in the middle of the cabin. In the as-delivered state, the 5-point safety harnesses are pre-adjusted for carrying two children. If you only want to carry one child, you must adjust the safety harnesses so that the child can sit in the middle. -
Page 28: Connecting The Trailer To A Bicycle
Utilisation Do not connect the trailer to the bicycle yet. Place the bathroom scales next to the tow bar. Get onto the bathroom scales and note the weight displayed. Lift the tow’s bar coupler pocket to the coupler height (ca. 35 cm). Determine the tow bar load by making a comparison with the previous measured value: The weight must be at least 3 kg more than the... -
Page 29: Decoupling The Trailer
Utilisation Danger! Always make sure the safety strap is in place before using the product in trailer mode. In addition, make sure that the safety strap can not get into moving parts of the towing bike. Danger! Always secure the tow bar to the bicycle frame with the retaining strap. This ensures that the trailer will remain connected even if the tow bar becomes detached from the coupler. - Page 30 Utilisation Danger! Never ride with the cover open. As a minimum, the insect net must be closed in order to provide protection against stones. In case of bad weather, dirty ground or in dense traffic, also close weather canopy. Stow away the 3-in-1 canopy Roll up the 3-in-1 canopy.
-
Page 31: Storage
Utilisation Storage For storage, simply fold the Kidgoo together and store it in a protected and dry place without direct sun- light. Please also consider the information in the chapter „Care“ on page 32. Danger! Hands or fingers can become trapped on moving parts while setting up and folding up the cab. -
Page 32: Care And Maintenance
ƒ At higher storage temperatures, you should store the wheels separately from the cabin because the ƒ tyres’ rubber can cause odours. Use a Qeridoo folding garage if the Kidgoo must be kept outdoors. ƒ 32 – 06|2019 – Subject to change. -
Page 33: Maintenance Intervals
Care and maintenance Maintenance intervals Caution! Replace corroded steel and aluminium parts immediately. Never bend back deformed or bent aluminium parts (danger of breakage). Replace bent aluminium parts immediately. Immediately replace plastic parts that have become porous or fragile due to the effects of the weather, for example. -
Page 34: Appendix
Appendix Technical data External dimensions Kidgoo1 Kidgoo2 Length (Trailer mode) 155 cm 155 cm Width (external width from wheel to wheel) 72 cm 82 cm Height (from ground to cabin roof) 89 cm 89 cm Height of push handle (lowest / highest set dimen- 50 cm / 110 cm 50 cm ... -
Page 35: Warranty Terms
In the event of replacement, the replaced product will become the property of Qeridoo. If the product is no longer held by Qeridoo, a product of a similar type and quality will be replaced at Qeridoo's option. -
Page 36: Spare Parts
Appendix Spare parts (valid from 2019) Frame components Pos. Article Article No. Article No. Kidgoo1 Kidgoo2 Tow bar head with hexagon socket 2018 Z-DEIK-6K-18 Z-DEIK-6K-18 Coupling bicycle connection accessory 2019 KUFA-19 KUFA-19 Cotter pin with rubber safety for bicycle coupling 2019 Z-SMGFFK-19 Z-SMGFFK-19 Multiwheel from 2017 set... - Page 37 Appendix Other spare parts Kidgoo1 base cover 2019 Reflector white 2019 Art.-No.: Y-B-Q8-19-AN (Anthrazit) Art.-No.: Y-RSW-K-19 Art.-No.: Y-B-Q8-19-AQ (Aquamarin) Kidgoo1 top cover 2019 Reflector red 2019 Art.-No.: Y-V-Q8-19-AN (Anthrazit) Art.-No.: Y-RSR-K-19 Art.-No.: Y-V-Q8-19-AQ (Aquamarin) Kidgoo2 base cover 2019 LED back light 2019 Art.-No.: Y-B-Q9-19-AN (Anthrazit)
- Page 38 Appendix Wheel guard right 2018 Hub axle for Multiwheel Art.-No.: Z-RAR-18 Art.-No.: Z-SA-MW-17 Wheel guard left 2018 Mode switch 2017 Art.-No.: Z-RAL-18 Art.-No.: KN-5321 Air suspension Kidgoo 2019 Push button Multiwheel 2019 Art.-No.: Y-LFKG-19 Art.-No.: Y-DKMW-19 Hitch pin with notch Ø8x36 2018 Brake pedal plastic V2 2018 Art.-No.: Y-SBMN8x38-18...
- Page 39 Notes Kidgoo 2019 Subject to change. – 06|2019 – 39...
- Page 40 Kidgoo 2019 Qeridoo GmbH Industriepark Nord 100 53567 Buchholz Germany www.qeridoo.de info@qeridoo.de...
