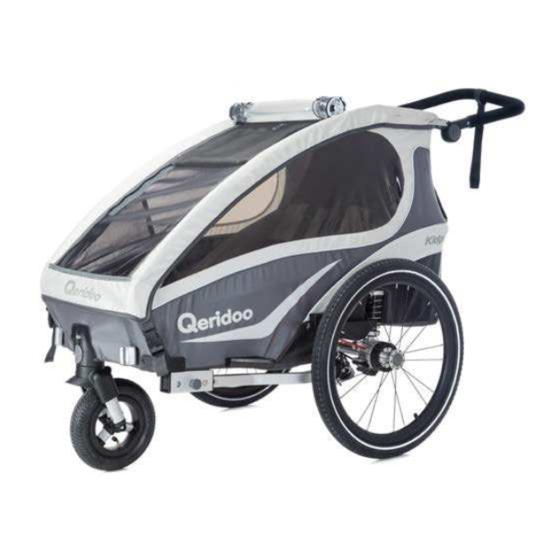

- Page 1 USER MANUAL Kidgoo1 2018 Kidgoo2 2018 This product fulfils all safety requirements of the European standard for bicycles and bicycle trailers (DIN EN 15918).
- Page 2 When necessary, individual items of information can be changed quickly and without special notification. This documentation can be ordered from Qeridoo GmbH in other languages, or is available for download on our website if already available. Visit us at: www.qeridoo.de...
-
Page 3: Table Of Contents
Contents Introduction Utilisation Proper use Applying the parking brake Performance limits Adjusting the push handle Notes on the user manual Window with smartphone pocket Setting the mode Safety instructions Adjusting the buggy wheel Users Insert tow bar Conditions of use Using the pennant Passenger Attaching the hand strap... -
Page 4: Introduction
Introduction Proper use Kidgoo was designed as a bicycle trailer and comes with an additional buggy and walker func- tion. For Trailer mode, use a tow bar with coupler to connect the trailer to a suitable towing vehicle (bicycle or motorised pedelec with a maximum speed of 25 km/h). With the buggy wheel attached, Kidgoo can be used as a child carrier in Buggy mode. -
Page 5: Notes On The User Manual
Introduction The following additional restrictions apply to Trailer mode: Requirements for the tow bar Kidgoo1 & Kidgoo2 Permissible tow bar load range 3 – 8 kg (on the tow bar coupler pocket) Minimum ambient temperature -10° C Requirements for the towing vehicle Kidgoo1 & Kidgoo2 Vehicle type Bicycle, pedelec/E-Bike (supported for up to 25 km/h) -
Page 6: Safety Instructions
Safety instructions Danger! Read the safely instructions below carefully. The safety and accident prevention regulations valid in your region and statutory rules such as the road traffic regulations also apply, and take precedence in cases where there is doubt. Make sure that the Kidgoo is used only by persons suitable for its operation, as defined below. -
Page 7: Passenger
Install and use only original accessories and spare parts manufactured or recommended by ƒ Qeridoo. Using other products relieves the manufacturer of liability. Only carry out structural modifications or extensions to the vehicle which are necessary ƒ for the use of the approved accessories in accordance with the assembly instructions. Any further manipulation that is not expressly approved by the manufacturer in writing relieves the manufacturer of liability in the event of accidents and defects. -
Page 8: General Instructions For Batteries
Safety instructions General instructions for batteries Non-rechargeable batteries must not be charged. ƒ Remove rechargeable batteries from the item before charging them. ƒ Different types of batteries as well as old and new batteries must not be used together on the ƒ... -
Page 9: Cycling With A Trailer
Safety instructions Cycling with a trailer The way in which the bicycle moves changes significantly when it is pulling a trailer, and this is par- ticularly noticeable when braking and cornering. With regard to this, pay attention to the following: Practice cycling with the trailer before going out onto the road. -
Page 10: Product Overview
Product overview Scope of delivery 1 Cabin with seats, back pad* and 5-point 7 Pennant with 2-part pennant staff and centre piece safety harnesses 8 Tow bar with coupler and retaining strap 2 Wheel guard (2x) 9 2 wheels 3 Head protector (Kidgoo2) 10 Wheel axle with parking brake and sus- 4 Leaf suspension cover (2 Stück) pension... -
Page 11: Components And Control Elements
Product overview Components and control elements Side view 1 Cabin (frame made from aluminium tubes 9 Removeable wheel guard for rejection from obstacles with weatherproof fabric cover) 10 Tow bar for Trailer mode (in the standby 2 Side window (right, incl. ventilation position) window) 11 Tow bar holder with Locking button... - Page 12 Product overview Components and control elements Rear view 1 Pushbutton for adjusting the height of the 8 Storage space with inside pocket, push handle (both sides) accessible from the outside 2 Pennant pouch for holding the pennant 9 Reflective seams in the fabric cover staff (inside) 10 Rear reflector, red 3 Push handle with safety function as impact...
-
Page 13: Assembly
Assembly Below you can read all the information that you will need to assemble your Kidgoo properly. Make sure that you have sufficient space to assemble it. Also pay attention to the door width at the place of installation: The Kidgoo1 is 72 cm wide with the wheel guards fitted and the... -
Page 14: Installing The Wheel Guard And The Leaf Spring Cover
Assembly Put the four screws through the leaf spring plates into the leaf spring retainer and tighten them. Repeat the process on the other side. Remove the retaining rings and bolts from the packaging. Connect the air spring to the retainer on the impeller shaft with a bolt and secure it with the circlip as shown in the picture. -
Page 15: Installing The Head Protectors (Kidgoo2)
Assembly Installing the head protectors (Kidgoo2) The head protector serves as additional side protection when transporting two children. Be sure that the slide covers for the head protectors are fixed and tightened on both sides. Slide the head protector onto the slide holder as shown in the picture. -
Page 16: Inserting The Wheels
Assembly Inserting the wheels Lift the cabin a little bit in order to install the wheel easier. Insert one wheel into the cabin’s axle retainer: Hold the wheel so that you can press your thumb – onto the rubber cap on the outside of the wheel hub. -
Page 17: Inserting The Pennant
Assembly Inserting the pennant Danger! The pennant must always be mounted in Trailer mode. Otherwise the very low Kidgoo too easily overseen by other road users. For safety reasons, we recommend putting the pennant into the pennant pouch so that it is easily visible before every journey, including in Buggy or Walker mode. Using the connecting piece, insert the pennant staff into the extension rod. -
Page 18: Mounting The Tow Bar
Assembly Mounting the tow bar You only require the tow bar in Trailer mode. It is used to hook up the Kidgoo behind a bicycle equip- ped with a suitable coupler, see „Connecting the trailer to a bicycle“ on page 27. The tow bar is attached to the tow bar mount using a locking bolt and can be used in two different positions: Attachment position: The tow bar is facing forwards. -
Page 19: Mounting The Coupler Onto A Bicycle
Assembly Mounting the coupler onto a bicycle Danger! Make sure that your bicycle is suitable for towing a bicycle trailer, see „Performance limits“ on page 4. Since it may in some cases be necessary to change the rear wheel axle, it is best to consult your specialist dealer or the bicycle manufacturer in order to do this. -
Page 20: Installing The Rear Light
The provided universal coupler is suitable for mounting on the most rear-wheel models. If it does not fit your bicycle, find a suitable adapter and special couplers in our manuals on the following website: www.qeridoo.de/kupplungsleitfaden Caution! Do not use a tool that has previously been in contact with conventional steel. Smallest steel particles could be transferred that could lead to contact corrosion. -
Page 21: Utilisation
Utilisation Below you will find all the information for adapting the Kidgoo to the required modes and to allow you to use all the convenience functions. Applying the parking brake Danger! Apply the parking brake to secure the Kidgoo in order to prevent it from rolling away. Also remember to release it before you set off. -
Page 22: Setting The Mode
Utilisation Setting the mode You can use the Kidgoo in one of the following modes: Trailer mode: Carrying children in the Kidgoo when cycling ƒ Buggy mode: Using the Kidgoo like a buggy ƒ Walker-Modus: Carrying children in the Kidgoo when walking ƒ... -
Page 23: Insert Tow Bar
Utilisation Tip! Carry the buggy wheel e.g. in the storage space in order to allow you to use the Kidgoo flexibly at your destination. Instructions for re-mounting it can be found in the chapter „Installing the buggy wheel“ on page 17. Setting the wheel so that it turns freely (Buggy mode) It must be possible for the wheel to move freely through 360°... -
Page 24: Adjusting The Safety Harnesses (Kidgoo2)
Utilisation Danger! Loose objects and objects with sharp edges should only be stored in the sewn-in inner pouch in the storage space to avoid them damaging the cover or injuring the child.. Filling the pouch for small items Open the magnetic closure of one of the two small storage compartments. Pack the utensils to which you want to have a quick access. -
Page 25: Embarking The Children
Utilisation Put the harness catch, including the pad, onto the centre harness on the front of the seat. Use the harness catch of the left or right seat to do this. Repeat this procedure in reverse order whenever you require the safety harnesses for carrying two children. Embarking the children Preparing the cabin Apply the parking brake to secure the... -
Page 26: Strapping In Children
Utilisation Strapping in children Help the child to put his/her arms through the two side parts of the 5-point safety harness. Adjust the seat belt, the belt pads and, if necessary, the head rests to the size of the child. Insert the tabs into the belt buckle until they click audibly. -
Page 27: Connecting The Trailer To A Bicycle
Utilisation Checking the tow bar load Use bathroom scales, for example, to measure the tow bar load: Load the Kidgoo in the usual way and fasten the children in. Do not connect the trailer to the bicycle yet. Place the bathroom scales next to the tow bar. Get onto the bathroom scales and note the weight displayed. -
Page 28: Decoupling The Trailer
Utilisation Hook the retaining strap with the carabiner hook into the eye on the tow bar. Make sure that it cannot flutter into the rear wheel’s spokes during the journey. Danger! Always make sure the safety strap is in place before using the product in trailer mode. In addition, make sure that the safety strap can not get into moving parts of the towing bike. - Page 29 Utilisation Opening the weather canopy: Open the top toggle fasteners and unroll the weather canopy over the insect net. Close the both zips on the sides and the lower Velcro fastener. Danger! Never ride with the cover open. As a minimum, the insect net must be closed in order to provide protection against stones.
-
Page 30: Using Backrest Cushion
Utilisation Using backrest cushion Remove the backrest cushion under the seat. This can be attached to the backrest for additional comfort. Storage For storage, simply fold the Kidgoo together and store it in a protected and dry place without direct sunlight. -
Page 31: Care And Maintenance
The storage location should be dry, well ventilated and protected against direct sunlight. ƒ At higher storage temperatures, you should store the wheels separately from the cabin ƒ because the tyres’ rubber can cause odours. Use a Qeridoo folding garage if the Kidgoo must be kept outdoors. ƒ Kidgoo 2018... -
Page 32: Maintenance Intervals
Care and maintenance Maintenance intervals Caution! Replace corroded steel and aluminium parts immediately. Never bend back deformed or bent aluminium parts (danger of breakage). Replace bent aluminium parts immediately. Immediately replace plastic parts that have become porous or fragile due to the effects of the weather, for example. -
Page 33: Appendix
Appendix Technical data External dimensions Kidgoo1 Kidgoo2 Length (Trailer mode) 151 cm 151 cm Width (external width from wheel to wheel) 72 cm 82 cm Height (from ground to cabin roof) 87,5 cm 87,5 cm Height of push handle (lowest / highest set 48 cm / 104 cm 48 cm / 104 cm dimension) Pack size of the collapsed cabin (H x W x L) 40.5 x 68.5 x 112 cm... -
Page 34: Warranty Terms
Appendix Warranty terms Qeridoo provides a two-year warranty commencing on the purchase date for plastic and cover parts, as well as for load-bearing components. This warranty covers only material and manufacturing faults arising on correctly used and maintained vehicles. In particular, the terms and instructions in the user manual that you received with your vehicle are definitive in this respect. -
Page 35: Spare Parts
Appendix Spare parts (valid from 2018) Frame components Pos. Article Article No. Article No. Kidgoo1 Kidgoo2 Tow bar head with hexagon socket from 2018 Z-DEIK-6K-18 Z-DEIK-6K-18 Coupling bicycle connection accessory from 2018 KUFA-18 KUFA-18 Cotter pin with rubber safety for bicycle coupling from 2018 Z-SMGFFK-18 Z-SMGFFK-18 Multiwheel from 2017 set... - Page 36 Appendix Other spare parts Locking button tow bar mount Belt padding from 2018 from 2018 Art.-Nr.: GPMK-18-SET Art.-Nr.: Z-VKDA-18 Brake pedal plastic V2 from 2018 Crotch padding from 2017 Art.-Nr.: Y-BPV2-18 Art.-Nr.: Z-SCHPO-17 Air suspension Kidgoo Head rest from 2017 from 2018 Art.-Nr.: Y-KS-17...
- Page 37 Kidgoo 2018 Subject to change. – 09|2020 – 37...
- Page 38 Kidgoo 2018 Qeridoo GmbH Industriepark Nord 100 53567 Buchholz Germany www.qeridoo.de info@qeridoo.de...
