3 INSTALLATION

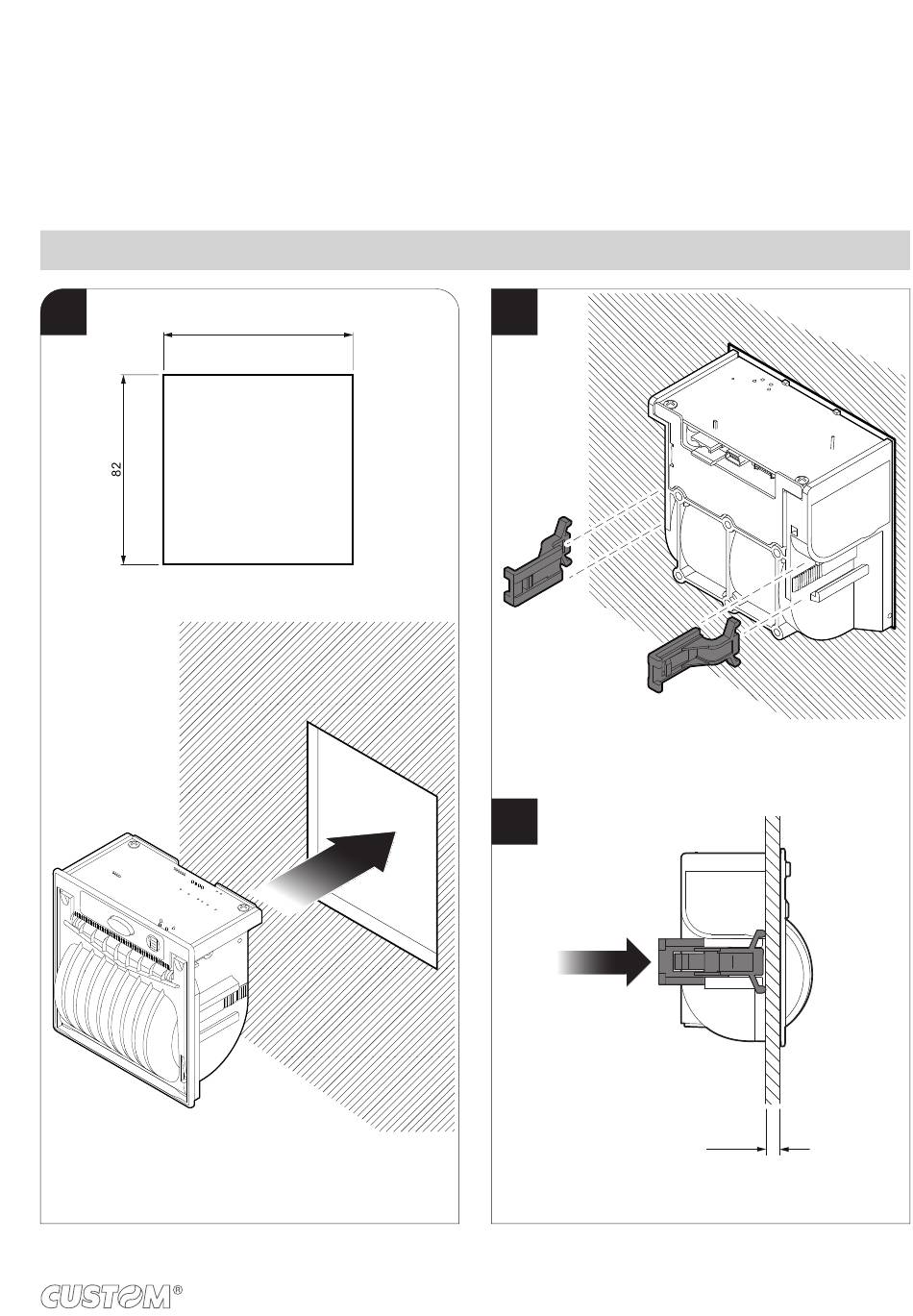

3.1 "EASYLOCK" ixing system
The device includes two plastic clips for ixing to the panel. This system allows you to lock the machine on the panels of
thickness max. 8mm and requires no tools. Proceed as follows:
NOTE: All the dimensions shown in following igures are in millimetres.
1
Insert the device inside the panel
82
2
Insert the fixing clips into the seat
on both the device sides
3
Push the two fixing clips
to strike the panel
MAX. 8
17
