GRUNDFOS INSTRUCTIONS
AP65
Installation and operating instructions
Montage- und Betriebsanleitung
Notice d'installation et d'entretien
Istruzioni di installazione e funzionamento
Instrucciones de instalación y funcionamiento
Instruções de instalação e funcionamento
œ‰Á„flÂÚ Â„Í·Ù‹ÛÙ·ÛÁÚ Í·È ÎÂÈÙÔıÒ„fl·Ú
Installatie- en bedieningsinstructies
Monterings- och driftsinstruktion
Asennus- ja käyttöohjeet
Monterings- og driftsinstruktion
Advertisement
Table of Contents
Related Manuals for Grundfos AP65
Summary of Contents for Grundfos AP65

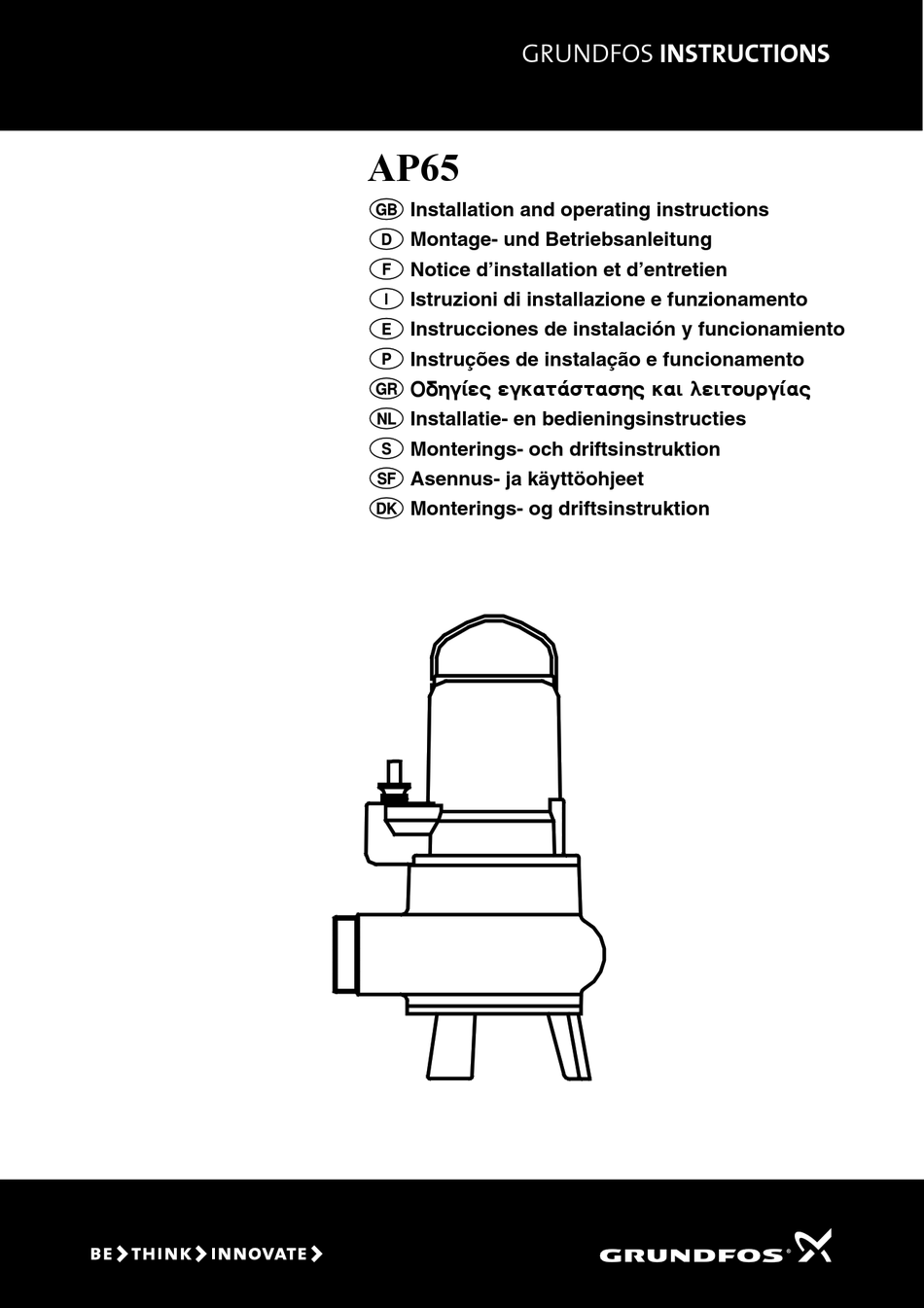

- Page 1 GRUNDFOS INSTRUCTIONS AP65 Installation and operating instructions Montage- und Betriebsanleitung Notice d’installation et d’entretien Istruzioni di installazione e funzionamento Instrucciones de instalación y funcionamiento Instruções de instalação e funcionamento œ‰Á„flÂÚ Â„Í·Ù‹ÛÙ·ÛÁÚ Í·È ÎÂÈÙÔıÒ„fl·Ú Installatie- en bedieningsinstructies Monterings- och driftsinstruktion Asennus- ja käyttöohjeet...
- Page 2 Nosotros GRUNDFOS declaramos bajo nuestra única responsabili- Nós GRUNDFOS declaramos sob nossa única responsabilidade dad que los productos AP65 a los cuales se refiere esta declaración que os produtos AP65 aos quais se refere esta declaração estão em son conformes con las Directivas del Consejo relativas a la aproxi- conformidade com as Directivas do Conselho das Comunidades mación de las legislaciones de los Estados Miembros de la CEE...
- Page 3 AP65 Vortex Installation and Page operating instructions Montage- und Seite Betriebsanleitung Notice d’installation Page et d’entretien Istruzioni di installazione Pag. e funzionamento Instrucciones de instalación Pág. y funcionamiento Instruções de instalação Pág. e funcionamento œ‰Á„flÂÚ Â„Í·Ù‹ÛÙ·ÛÁÚ ”ÂÎfl‰· 29 Í·È ÎÂÈÙÔıÒ„fl·Ú...
-
Page 4: Table Of Contents
The loose nameplate supplied with the pump should GRUNDFOS AP65 pumps can also be used for the be fixed at the installation site. pumping of sewage from restaurants, hotels, camp- Prior to installation, check the oil level in the oil ing sites, etc. -
Page 5: Free-Standing Installation
The operating voltage and frequency are marked on the nameplate. Voltage tolerance: ±10% of the volt- The AP65 pumps have pump housing and base age stated on the nameplate. Make sure that the mo- stand cast in one unit for free-standing installation. -
Page 6: Start-Up
Before carrying out maintenance and service, make If GRUNDFOS is requested to service the pump, sure that the pump has been thoroughly flushed with GRUNDFOS must be contacted with details about clean water. Rinse the pump parts in water after dis- the pumped liquid, etc. -
Page 7: Fault Finding Chart
8. Fault finding chart Make sure that all power supplies have been switched off and that all rotating parts have stopped moving before attempting to diagnose any fault. Fault Cause Remedy 1. Motor does not start. Fuses a) Supply failure; short-circuit; Have the cable and motor checked blow or motor starter trips out earth-leakage fault in cable or... - Page 8 GB: 1-pump installation on auto-coupling Eine Pumpe mit Autokupplung Une pompe avec système d’accouplement automatique Una pompa con accoppiamento rapido Una bomba con autoacoplamiento Uma bomba com acoplamento automático GR: ∂ÁηٿÛÙ·ÛË ÌÈ¿˜ ·ÓÙÏ›·˜ Ì ·˘ÙfiÌ·ÙË ˙‡ÍË NL: Eén pomp met voetbochtsnelkoppeling En pump installerad med kopplingsfot SF: Yhden pumpun asennus jalustaliittimellä...
- Page 9 GB: 2-pump installation on auto-coupling Zwei Pumpen mit Autokupplung Deux pompes avec système d’accouplement automatique Due pompe con accoppiamento rapido Dos bombas con autoacoplamiento Duas bombas com acoplamento automático GR: ∂ÁηٿÛÙ·ÛË ‰‡Ô ·ÓÙÏÈÒÓ Ì ·˘ÙfiÌ·ÙË ˙‡ÍË NL: Tvee pompen met voetbochtsnelkoppeling Två...
- Page 10 GB: Free-standing Installation Freistehender Einbau Installation fixe sur socle Installazione su piede d’appoggio Instalación portátil Instalação autónoma GR: ∞ÓÂÍ¿ÚÙËÙË ÂÁηٿÛÙ·ÛË NL: Vrijstaande opstelling Fristående installation SF: Vapaasti seisova asennus DK: Fritstående installation Fig. C R 2½...
- Page 11 GRUNDFOS Gulf Distribution 755-775 Huai Hai Rd, (M) Poland P.O. Box 16768 Indonesia Shanghai 200020 GRUNDFOS Pompy Sp. z o.o. Jebel Ali Free Zone PT GRUNDFOS Pompa ul. Klonowa 23 Dubai Jl. Rawa Sumur III, Blok III / CC- Phone: +86-512-67 61 11 80 Baranowo k.
- Page 12 Being responsible is our foundation Thinking ahead makes it possible Innovation is the essence 96 43 48 21 0502 Repl. V7 14 17 96 02 99...
