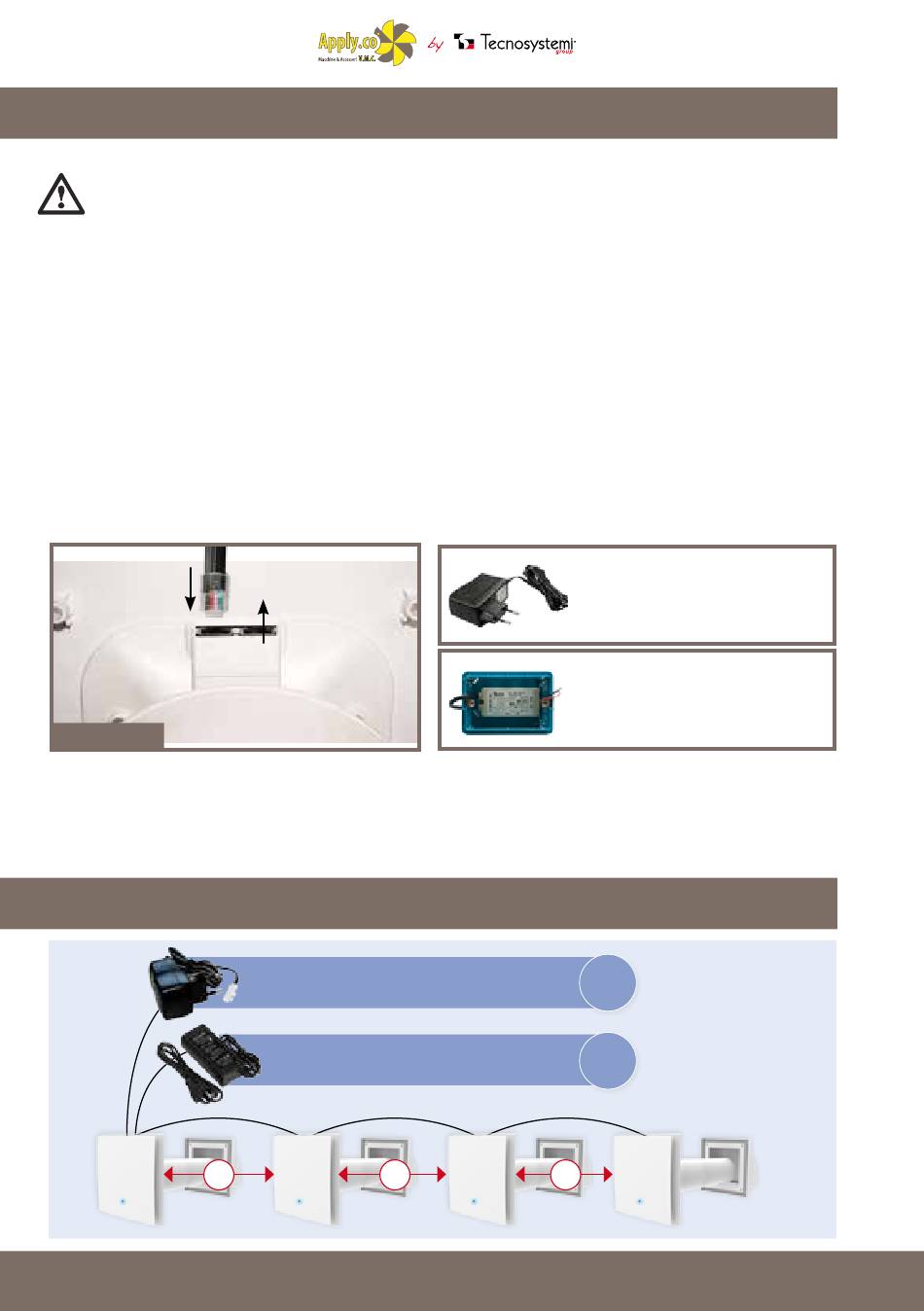

CONNECTION TO THE MAINS

BEFORE PERFORMING ANY ELECTRICAL ASSEMBLY OPERATION, DISCONNECT THE
INTAKE-EXTRACTOR UNIT FROM THE MAINS. CONNECT THE INTAKE-EXTRACTOR
UNIT TO A SOCKET INSTALLED CORRECTLY WITH THE GROUNDING TERMINAL. IT
IS FORBIDDEN TO PERFORM ANY MODIFICATION TO THE INTERNAL CONNECTIONS
WHICH MIGHT CAUSE THE WARRANTY TO BE VOIDED
The intake-extractor unit is calibrated for connection to the AC mono phase mains supply 230 V / 50 Hz by
means of a 12 Vdc transformer (provided). To make the connection easier, the intake-extractor unit is fitted
with a 500 mm long pre-wired power cord.
In order to power the intake-extractor unit, insert the phone type connector in the specific socket marked
with the word IN. (see fig. 6)
CONNECTION IN SERIES
When the intake-extractor units are connected in series, all the connected intake-extractor units are
controlled by one intake-extractor unit and a single remote control. In order to connect the intake-extractor
units in series, connect the outlet plug of the first recovery unit (marked with the word OUT) to the input
socket of the second recovery unit (marked with the word IN).
IN
pic
.6
Connect the second intake/extractor unit to the third intake-extractor unit in the same way and so on,
allowing up to 4 recovery units to be connected in series.
Connecting the intake-extraction units in a series must be done with the devices disconnected from the
mains supply
INSTALLATION DIAGRAM FOR MAX 4 "PICO" UNITS IN CASCADE
5 m
32
OUT
FOR INTAKE-EXTRACTOR UNITS
"PICO CLEAN 30 - 55"
POWER SUPPLY INCLUDED WITH THE UNIT
FOR INTAKE-EXTRACTOR UNITS
"PICO CLEAN 80"
POWER SUPPLY NOT INCLUDED
5 m
EXTERNAL POWER SUPPLY IN-
CLUDED WITH PART NUMBERS :
11104036A - 11104036C
11104036E
BUILT-IN POWER SUPPLY IN-
CLUDED WITH PART NUMBERS :
11104036L - 11104036N -11104036P
7.2 W
36 W
5 m
