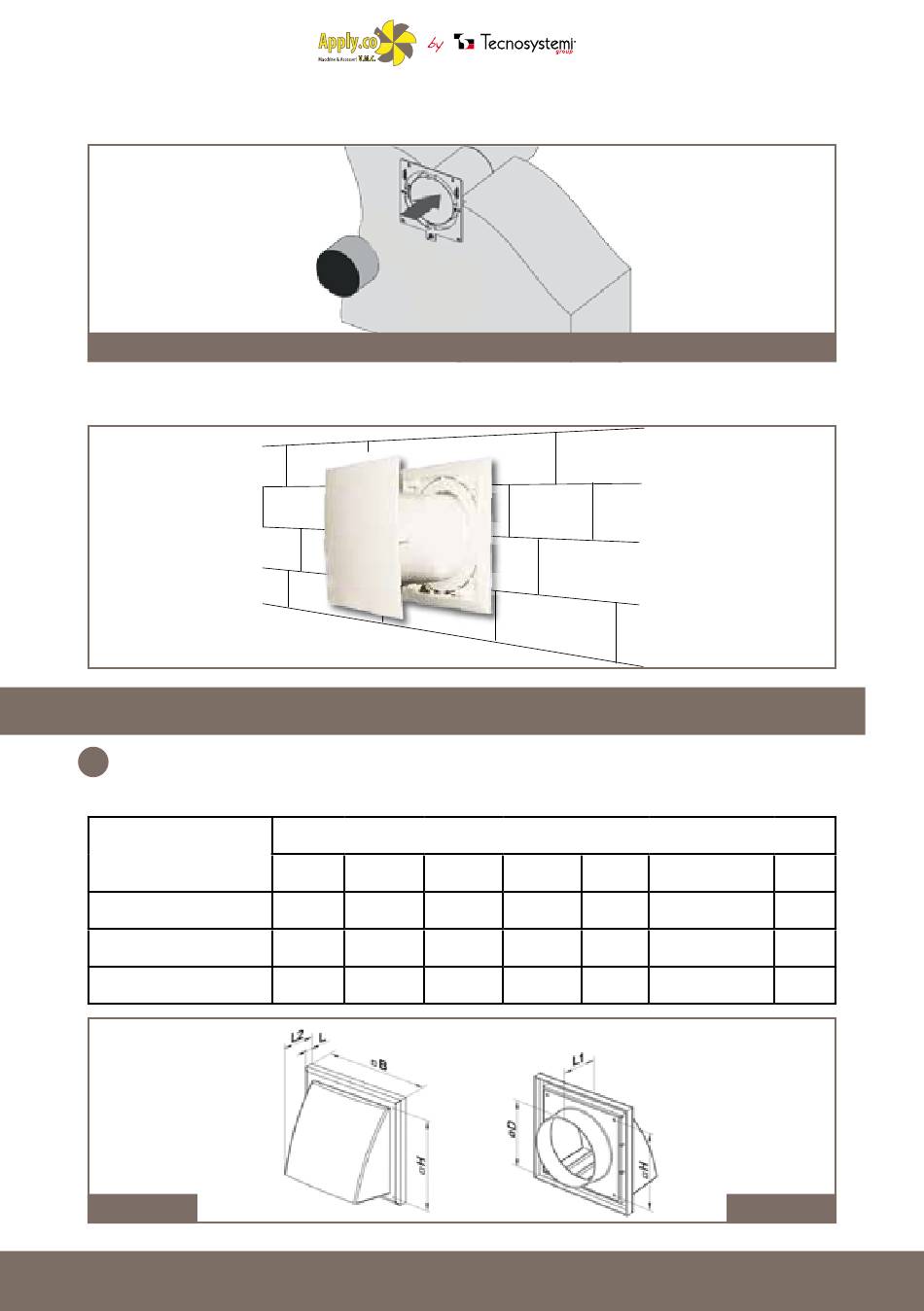

6) Insert the unit consisting of the motor and filter
PICO CLEAN
7) Attach the fan unit to the wall ring
ASSEMBLY OF THE "PICO CLEAN" INTAKE GRILLE
1 Remove the external grille in order to gain access to the fixing holes..
Remove the upper part of the external ventilation grille. (see pic. 1)
MODEL
PICO CLEAN
PICO CLEAN
PICO CLEAN
pic.1
30
DIMENSIONS (mm)
B H
154 110
186 142
186 142
L L1 L2
15 45 87
15 45 101
15 50 101
DIAMETER (D)
100 1.2
125 1.2
150 1.2
pic.2
