WARNINGS FOR THE ASSEMBLY
WARNING!
THE INTAKE-EXTRACTOR
INSTALLED IN PLACES WHERE THE AIR DUCT MIGHT BE
BLOCKED BY BLINDS AND SHUTTERS, ETC. IN ORDER TO
PREVENT THE ACCUMULATION OR DEPOSIT OF DUST.
MOREOVER, THE BLINDS MIGHT OBSTRUCT THE NORMAL
AIR FLOW IN THE ROOM, MAKING THE OPERATION OF
THE INTAKE-EXTRACTOR UNIT INEFFICIENT.
WARNING!
DO NOT PLACE THE DEVICE ABOVE DELICATE FURNITURE OR PICTURES.
DO NOT PLACE THE DEVICE ABOVE OR NEAR ROOM THERMOSTATS.
To mount the intake-extractor unit, make a circular hole through the wall that is big enough to
allow insertion of the tube supplied for the various intake-extractor unit models.
NOTE:
for diameters of the external tube, please refer to page 4 for the recovery units, model "PICO
CLEAN".
INSTALLING "PICO CLEAN"

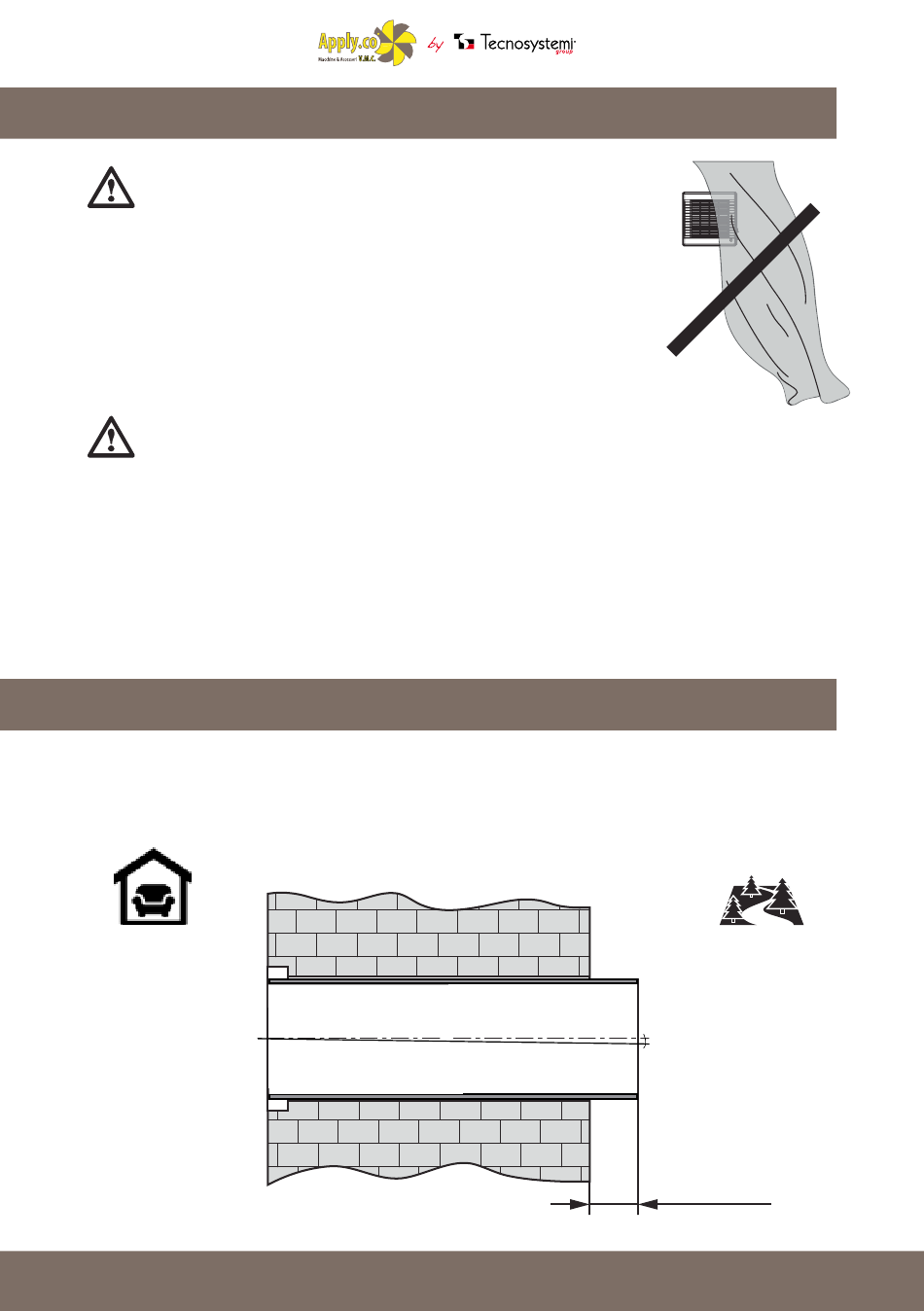

1) Install the duct in the wall, with a 1° inclination towards the outside. The air duct must be
flush with the internal wall and should protrude from the external wall for 5 mm.
INSIDE
28
UNIT SHOULD NOT BE
OUTSIDE
1°
5 mm
