Summary of Contents for EcoFlow RIVER Max

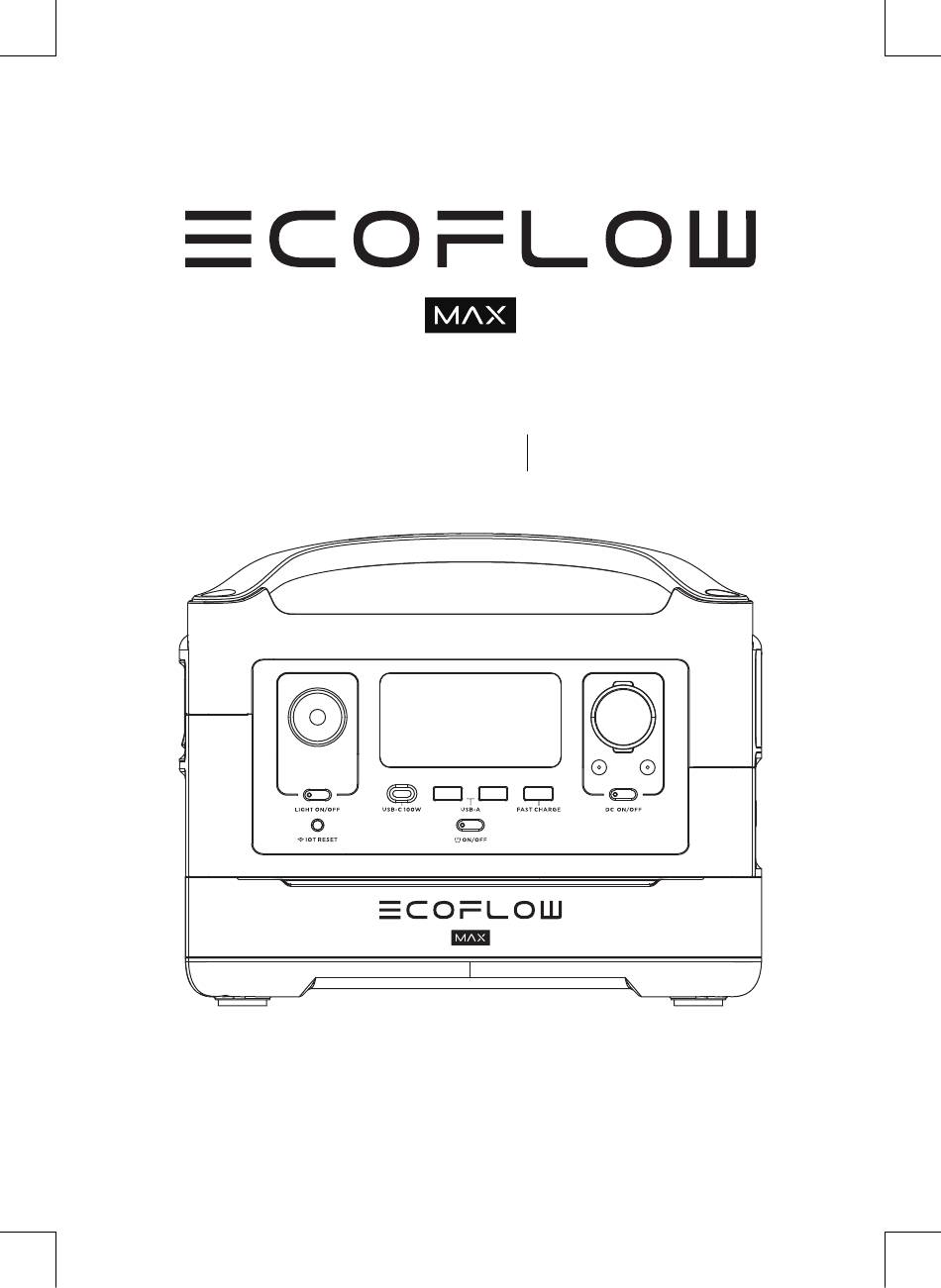

- Page 1 EcoFlow RIVER Max User Manual...
- Page 2 Users take full responsibility for all usage and operations. Familiarize yourself with the related regulations in your area. You are solely responsible for being aware of all relevant regulations and using EcoFlow products in a way that is compliant. EcoFlow RIVER Max （Hereinafter referred to as RIVER Max）...
-
Page 3: Table Of Contents
CONTENTS Specifications 2. Safety Instructions 2.1 Usage 2.2 Disposal Guide 3. Getting Started 3.1 Product Details 3.2 LCD Screen 3.3 General Product Usage 3.4 AC Charging 3.5 Solar Charging 3.6 Car Charging 3.7 APP 3.8 X-Boost 3.9 Emergency Power Supply (EPS) 4. -
Page 4: Specifications
1. Specifications General Info Net Weight Approximately Dimensions 11.4in x 7.3in x 9.3in Capacity 576Wh 28.8V Certification UL Standard, CE, FCC, RoHS, RCM Wi-Fi Supported Output Ports Pure Sine Wave, 600W (Surge 1200W), AC (x3) 120V~ (60Hz) Max Device(s) Power Supported by X-Boost 1800W USB-A (x2) 2.4A 12W max, per port... -
Page 5: Safety Instructions
6. Do not use unofficial components or accessories. If you need to replace any components or accessories, please visit official EcoFlow channels to check relevant information. 7. When using the product, please strictly follow the operating environment temperature specified in this user manual. -
Page 6: Getting Started
3. Getting Started 3.1 Product Details LCD Screen USB-A Output Port LED Light USB Power Button ON/OFF Button USB-A Fast Charge Output Port Ambient Light IOT Button Main Power Button USB-C 100WOutput Port Ventilation Fan AC Power Button AC Output Sockets Overload Protection Switch X-Stream AC Power Earth Screw... -
Page 7: Lcd Screen
3.2 LCD Screen Remaining Battery Percentage Battery Failure Warning High Temperature Warning Battery Level Indicator Low Temperature Warning Fan Indicator Input Power Remaining Charge/ Output Power Discharge Time Overload Warning Extra Battery State of Charge Indicator Wi-Fi Status AC Output 12V DC Output Indicator USB-A Output USB-C Output... - Page 8 With the Main Power Button turned on, short press the 12V DC Power Button to use the 12V DC Output port. Short press the 12V DC Power Button again to turn it off. With the 12V DC Power Button on, the product will not automatically shut down.
-
Page 9: Ac Charging
Users can connect solar panels in series as shown in the figure to recharge the product. The product supports 10-25V DC input, 12A max current, and 200W max charging power. When using an EcoFlow solar panel to charge the product, please follow the instructions that come with the solar panel. -
Page 10: Car Charging
By using EcoFlow Products, Applications and Services, you consent to the EcoFlow Term of Use and Privacy Policy, which you can access via the "About" section of the "User" page on the EcoFlow App or on the official EcoFlow website at https://ecoflow.com/pages/terms-of-use and... -
Page 11: X-Boost
We recommend that you only charge one device at a time and avoid using multiple ones at the same time to avoid overload protection. EcoFlow takes no responsibilities for any device failures or data losses caused by failures to follow instructions. -
Page 12: Faqs
4. FAQs 1. What battery does the product use? It uses high-quality lithium-ion battery. 2. What devices can the product’s AC output port power? With 600W rated power and 1200W peak power, the product’s AC output port can power most household appliances. Before you use it, we recommend that you confirm the power of the appliances first and ensure the power sum of all loaded appliances is lower than the rated power. -
Page 13: Troubleshooting
If the Alarm Prompt shows on the product LCD screen during use and does not disappear after a restart, please stop using it immediately (do not try to charge or discharge). If you require any other assitance, please contact EcoFlow Customer Service. -
Page 14: What's In The Box
6. What’s In the Box EcoFlow RIVER Max AC Charging Cable (1.5m) Car Charging Cable (1.5m) Solar Charging Cable DC5521-DC5525 User Manual and War- (MC4 to XT60 Input) Cable ranty Card 7. Storage & Maintenance 1. Please use or store the product in an environment temperature between 68°F to 86°F, away from water, heat, and other metal objects.
