Installation

Take care not to lose or
mishandle any parts when
unpacking the appliance.
Positioning the appliance

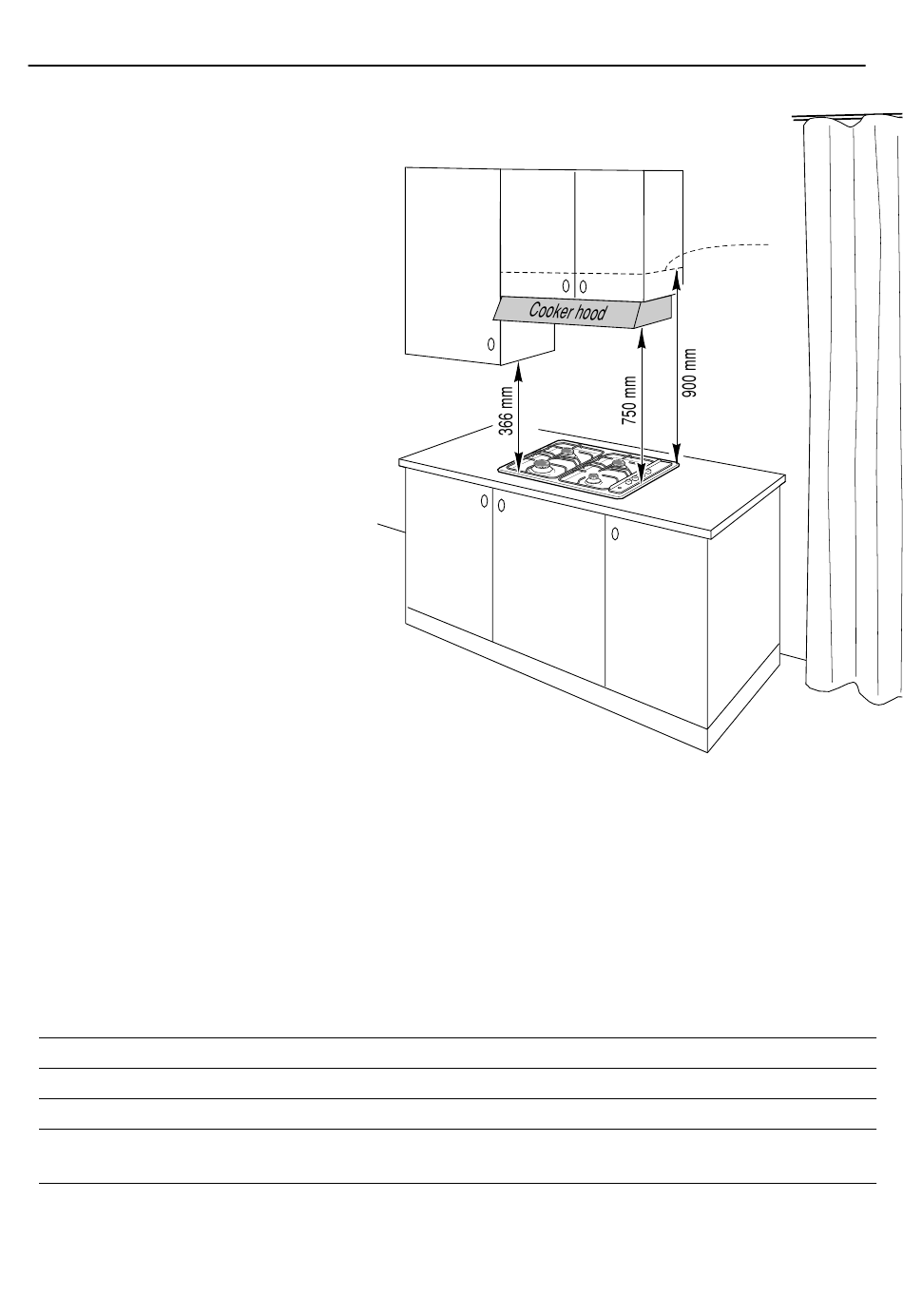

The hob must be installed a
minimum of 50 mm from the
back wall and 150 mm from any
vertical surface either side of the
hob.
Adjacent units must be a
minimum of 366 mm above
the worksurface.
If you are installing a cooker
hood above the hob there
must be a minimum height of
750 mm
appliance.
If a cooker hood is not installed,
there must be a minimum
height of 900 mm between
cabinets above the hob.
This hob must not be installed
above refrigeration products.

Ventilation

All rooms require a window which can be opened or equivalent, while some rooms requi-
re a permanent vent in addition to a window.
This unit must not be used in a room with less than 5 m
Room Volume
3
5 m
3 3
5 m to 10 m
Greater than 11 m
3
A room 5 m to 10 m
opening to the outside
The above requirements allow use of a gas oven and grill but if there are other fuel
burning appliances in the same room BS5440 part 2: 1989 (ventilation) should be
consulted to determine the necessary air venting requirements.
4
between the
3
3
with a door
Fig. 2
Air vent necessary (effective area)
2
100 cm
2
50 cm
No air vent necessary
No permanent air vent necessary
Cabinet only
(without
cooker hood)
