3>. For a View of the internal configuration after removal of the air duct board, see

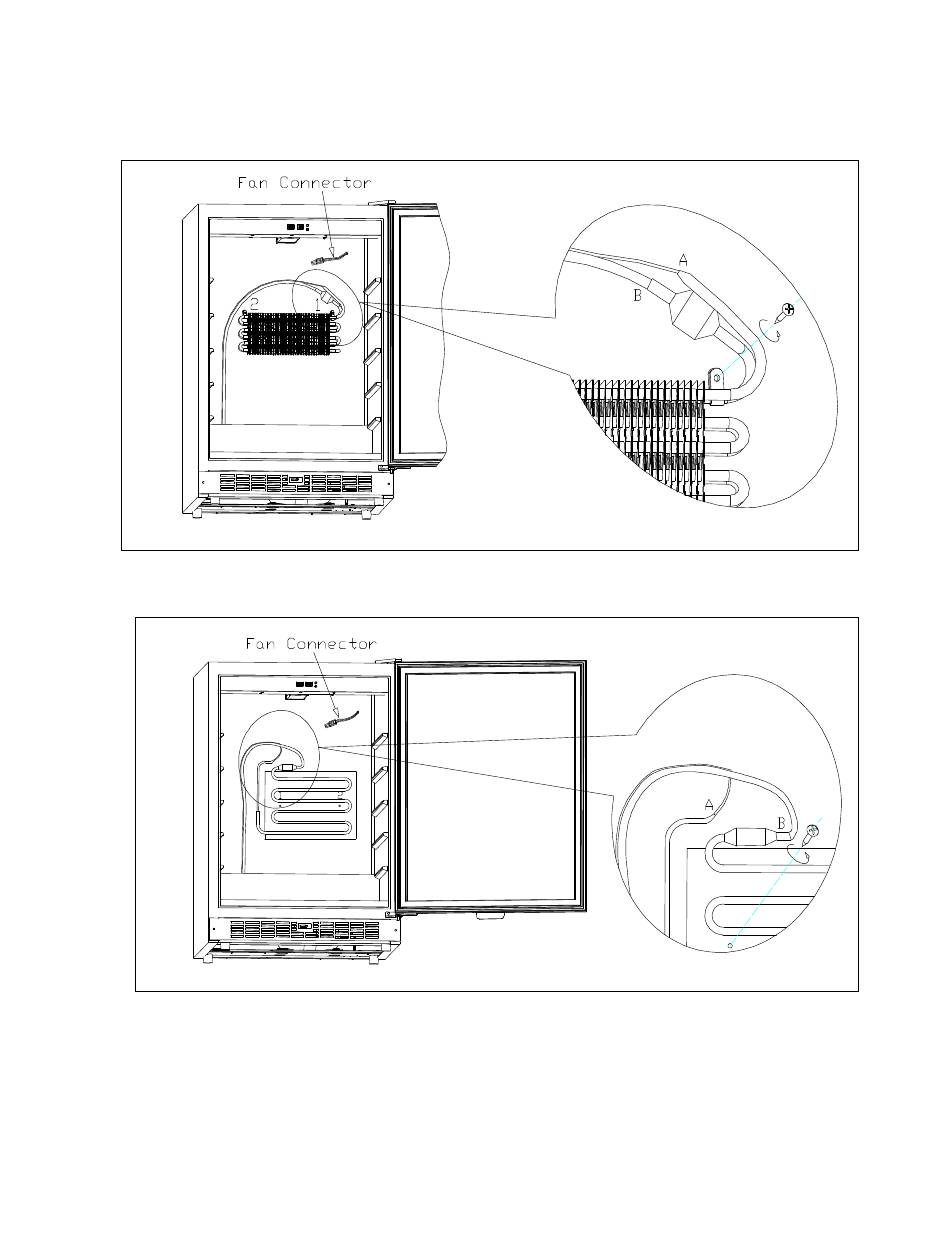

○Diagram showing the front side soldered joints (There are two different types of evaporator:Finned and pipe
evaporator,se (Fig.6& Fig.7)
A. Capillary soldered joints
Finned evaporator
Pipe board evaporator
B. evaporator soldered joints
(Fig.6 & Fig.7)
Fig.6
Fig.7
