Summary of Contents for Caple Wi3118

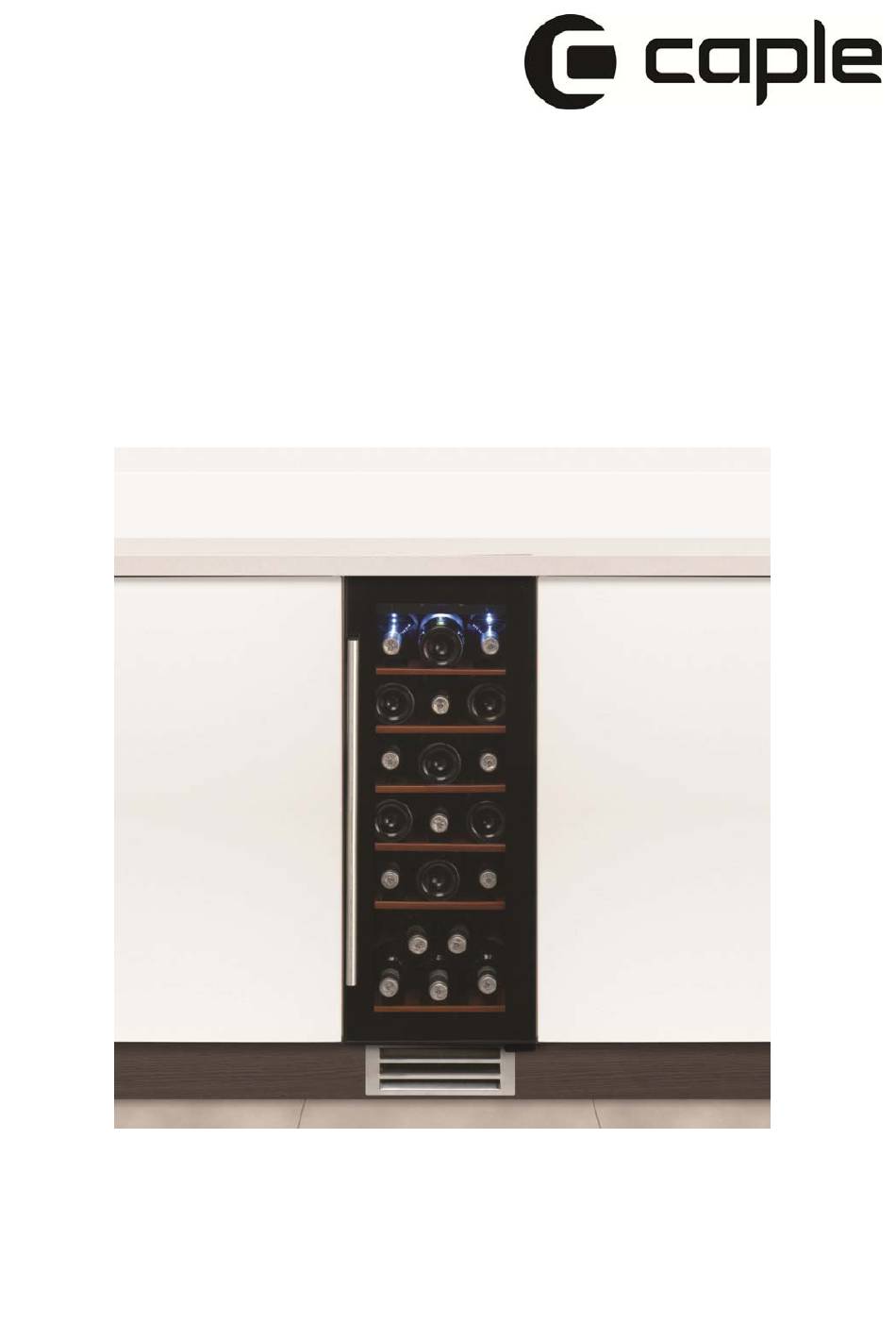

- Page 1 Instruction manual for slot-in wine cabinet Model code: Wi3118 / Wi3118WH Contact Caple on 0844 800 3830 or for spare parts www.caple.co.uk...
-
Page 3: Table Of Contents
Operating you wine cabinet and setting the temperature Using the shelves How to change the door opening Installing the bar handle Fitting a kitchen plinth Installation dimensions Care and maintenance Troubleshooting guide Caple Service contact details Defrosting/condensation The humidity system Recommended storage temperatures Recommended drinking temperatures... -
Page 4: Important Safety Instructions
The wine cabinet should be installed in a suitable place in order to avoid touching the compressor with the hand. If the supply cord is damaged, it must be replaced by a Caple service agent or a similarly qualified person in order to avoid a hazard. -
Page 5: Installation Instructions
Plug the wine cabinet into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) pin from the plug. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorised Caple service centre. Attention •... -
Page 6: Operating You Wine Cabinet And Setting The Temperature
Operating your wine cabinet and setting the temperature Please use the cabinet within ambient temperatures between 5-32 , if the ambient ºC temperature is higher or lower than this, it will cause the temperature to fluctuate in the cabinet, possibly preventing it from reaching 3-18 ºC Control panel •... -
Page 7: Using The Shelves
Using the shelves • To prevent damaging the door gasket, make sure to have the door opened fully when pulling shelves out of the rail compartment. • For easy access to the storage content, you must pull the shelves approximately 1/3 out of the rail compartment, however this unit was designed with a notch on each sides of the shelf tracks to prevent bottles from falling. -
Page 8: How To Change The Door Opening
How to change the door opening This appliance has reversible doors but is delivered with a right hinged door. The left hand hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit follow the directions below: 1. -
Page 9: Installing The Bar Handle
Installing the bar handle Remove the door gasket on the drilling holes side to install the handle. (see below drawing) Front Back Once the handle is fixed, replace the gasket by pushing back into place. Fitting a kitchen plinth This model is recessed to fit a kitchen plinth. A H75mm vent slot is required in the plinth to ensure air See diagram below. -
Page 10: Installation Dimensions
Installation dimensions... -
Page 11: Care And Maintenance
Care and maintenance Cleaning your wine cabinet • Turn off the power, unplug the appliance, and remove all items including shelves and rack. • Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to 2 pints of water. -
Page 12: Troubleshooting Guide
Problems with your wine cabinet You can solve many common wine cabinet problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling Caple Service. Troubleshooting Guide... -
Page 13: Defrosting/Condensation
Defrosting/condensation Your wine cabinet is designed with an “Auto-cycle” defrost system. When the RUN cycle is OFF, the refrigerated surface of the wine cabinet (interior rear wall) defrosts automatically. The defrosted water is channelled into a drain pan which is located at the back of the cabinet next to the compressor from where it evaporates. - Page 14 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk...
