Caple WI3118WH Technical Information page 10

the unit the compressor should automatically stop within - 2.5 deg centigrade of the set temperature and start with +2.5 deg
centigrade of the set temperature within approx 3 hours (assuming an ambient temperature of 32℃and the unit is empty).
○ How to remove the air duct board.
1.Remove the shelves firstly.

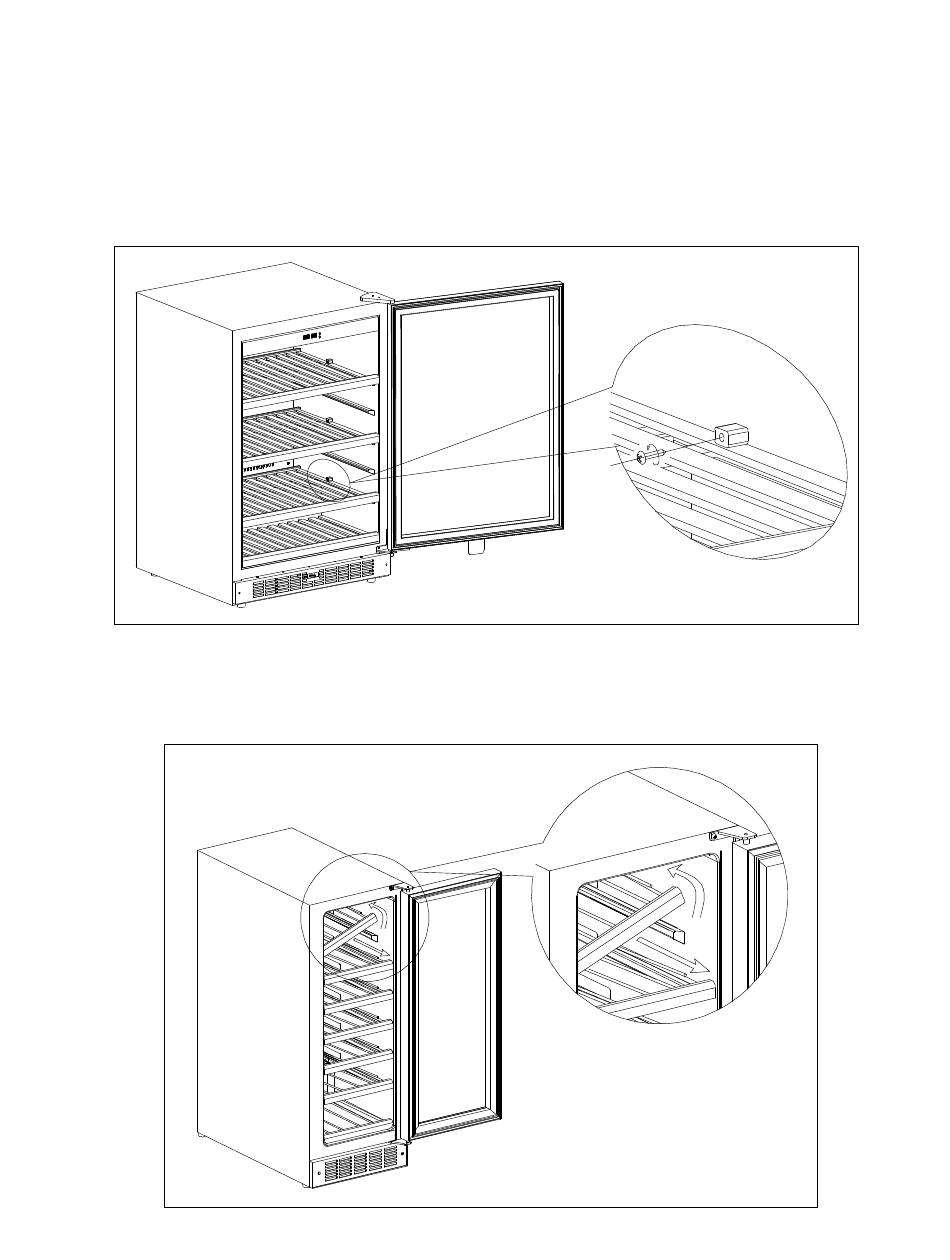

( Fig.1 )
a. Remove the shelves; some models have Phillips head screws to hold other models have no screws
Fig.1
②. Pull the shelves to the bottom, circumvolve any side of the right and left, and let the setter
of the shelve go out of the channel, and then draw out the shelves. (Fig.2)
Fig.2
4
