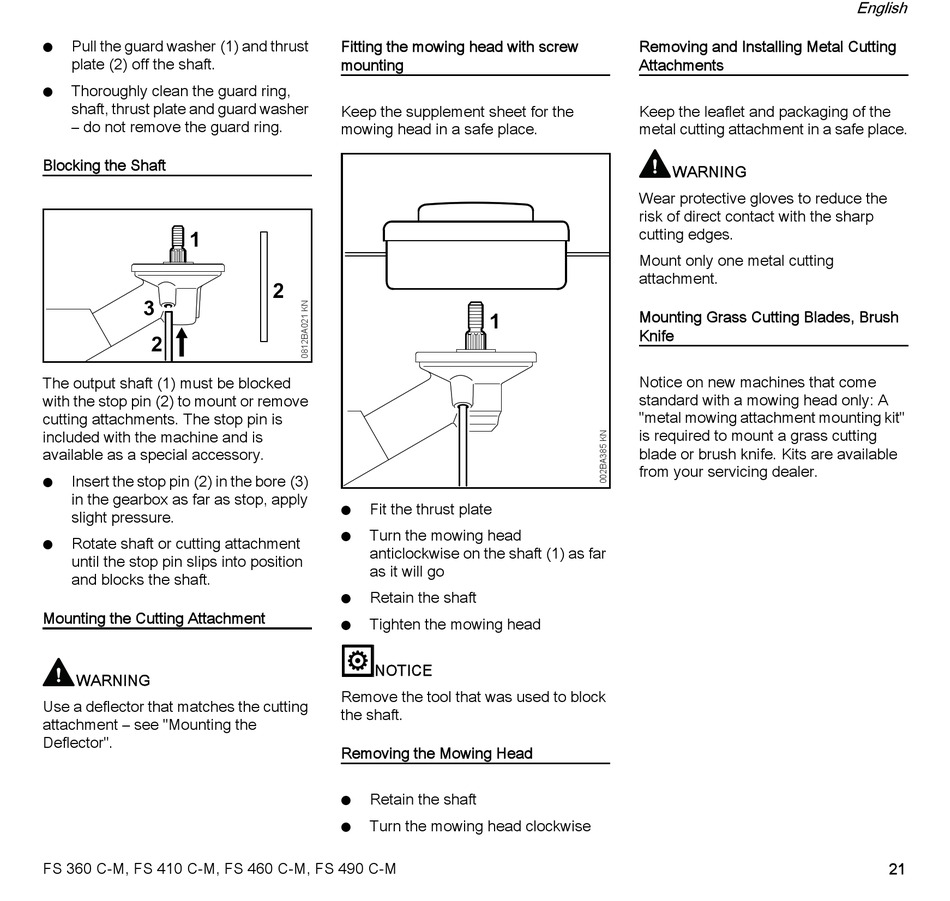

Pull the guard washer (1) and thrust
N
plate (2) off the shaft.
Thoroughly clean the guard ring,
N
shaft, thrust plate and guard washer
– do not remove the guard ring.
Blocking the Shaft
1
3
2
The output shaft (1) must be blocked
with the stop pin (2) to mount or remove
cutting attachments. The stop pin is
included with the machine and is
available as a special accessory.
Insert the stop pin (2) in the bore (3)
N
in the gearbox as far as stop, apply
slight pressure.
Rotate shaft or cutting attachment
N
until the stop pin slips into position
and blocks the shaft.
Mounting the Cutting Attachment
WARNING
Use a deflector that matches the cutting
attachment – see "Mounting the
Deflector".
FS 360 C-M, FS 410 C-M, FS 460 C-M, FS 490 C-M
Fitting the mowing head with screw
mounting
Keep the supplement sheet for the
mowing head in a safe place.
2
Fit the thrust plate
N
Turn the mowing head
N
anticlockwise on the shaft (1) as far
as it will go
Retain the shaft
N
Tighten the mowing head
N
NOTICE
Remove the tool that was used to block
the shaft.
Removing the Mowing Head
Retain the shaft
N
Turn the mowing head clockwise
N
Removing and Installing Metal Cutting
Attachments
Keep the leaflet and packaging of the
metal cutting attachment in a safe place.
Wear protective gloves to reduce the
risk of direct contact with the sharp
cutting edges.
Mount only one metal cutting
attachment.
Mounting Grass Cutting Blades, Brush
1
Knife
Notice on new machines that come
standard with a mowing head only: A
"metal mowing attachment mounting kit"
is required to mount a grass cutting
blade or brush knife. Kits are available
from your servicing dealer.
WARNING
