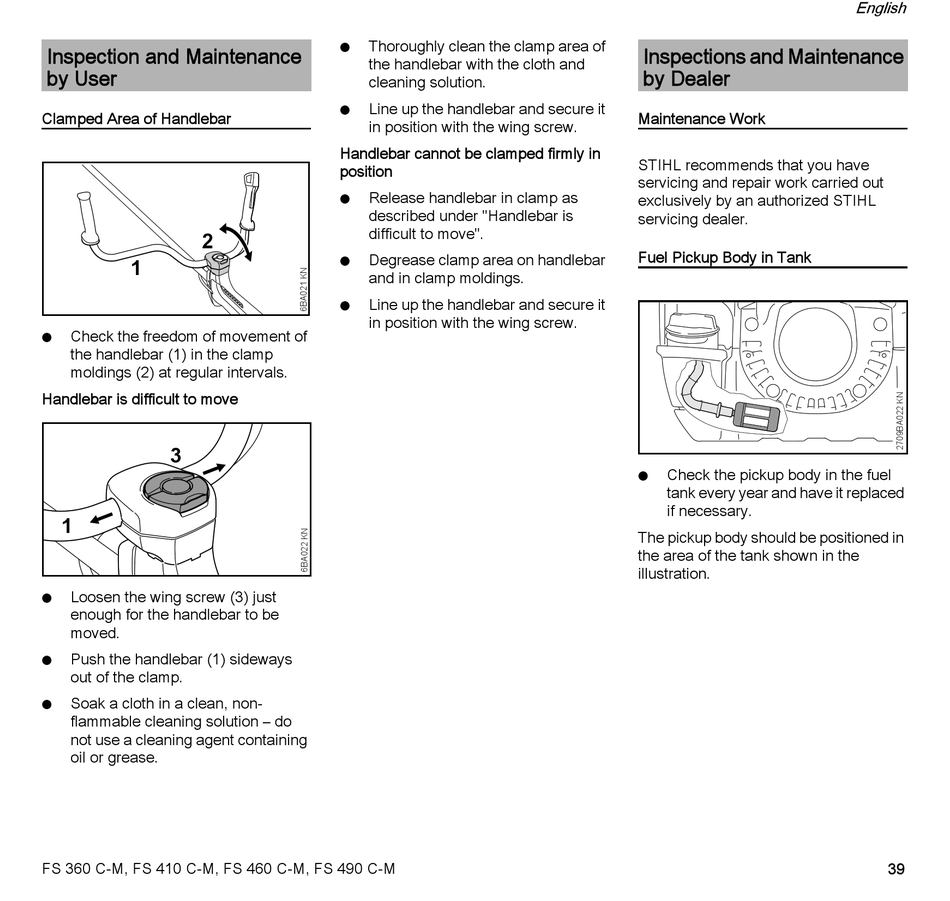

Inspection And Maintenance By User; Inspections And Maintenance By Dealer - Stihl FS 360 C-M Instruction Manual

Inspection and Maintenance
by User
Clamped Area of Handlebar
2
1
Check the freedom of movement of
N
the handlebar (1) in the clamp
moldings (2) at regular intervals.
Handlebar is difficult to move
3
1
Loosen the wing screw (3) just
N
enough for the handlebar to be
moved.
Push the handlebar (1) sideways
N
out of the clamp.
Soak a cloth in a clean, non-
N
flammable cleaning solution – do
not use a cleaning agent containing
oil or grease.
FS 360 C-M, FS 410 C-M, FS 460 C-M, FS 490 C-M
Thoroughly clean the clamp area of
N
the handlebar with the cloth and
cleaning solution.
Line up the handlebar and secure it
N
in position with the wing screw.
Handlebar cannot be clamped firmly in
position
Release handlebar in clamp as
N
described under "Handlebar is
difficult to move".
Degrease clamp area on handlebar
N
and in clamp moldings.
Line up the handlebar and secure it
N
in position with the wing screw.
Inspections and Maintenance
by Dealer
Maintenance Work
STIHL recommends that you have
servicing and repair work carried out
exclusively by an authorized STIHL
servicing dealer.
Fuel Pickup Body in Tank
Check the pickup body in the fuel
N
tank every year and have it replaced
if necessary.
The pickup body should be positioned in
the area of the tank shown in the
illustration.
English
39
