English
5
8

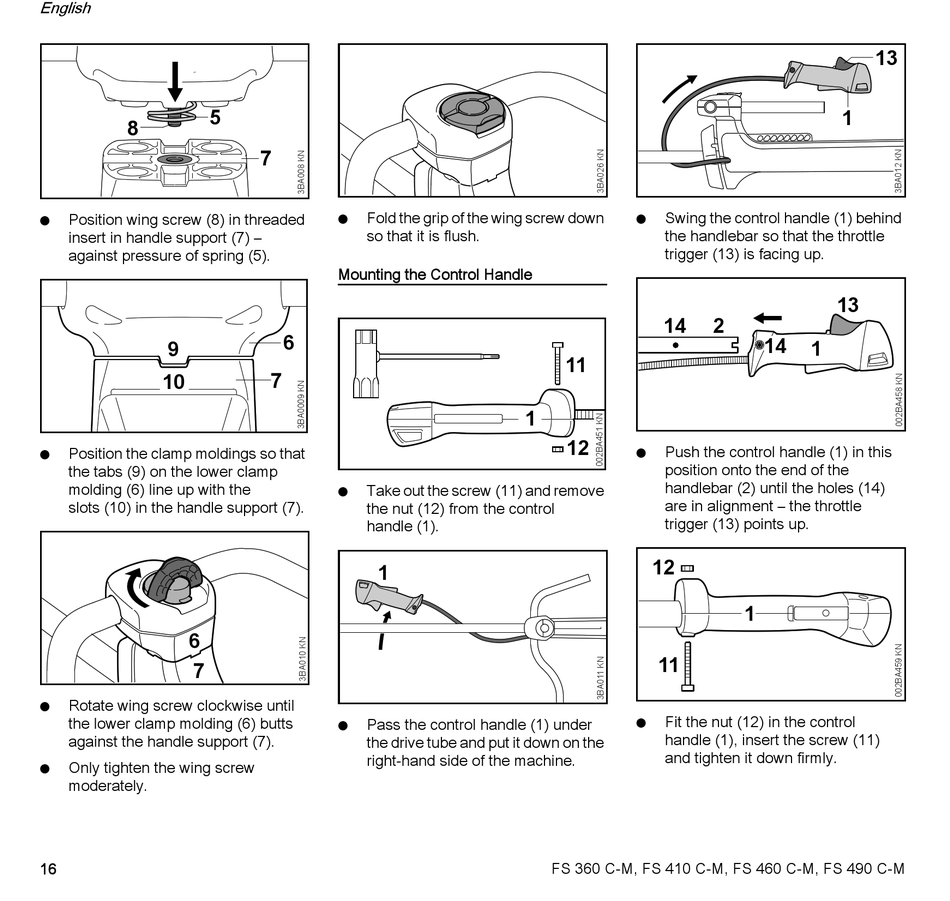

Position wing screw (8) in threaded
N
insert in handle support (7) –
against pressure of spring (5).
9
10
Position the clamp moldings so that
N
the tabs (9) on the lower clamp
molding (6) line up with the
slots (10) in the handle support (7).
6
7
Rotate wing screw clockwise until
N
the lower clamp molding (6) butts
against the handle support (7).
Only tighten the wing screw
N
moderately.
16
7
Fold the grip of the wing screw down
N
so that it is flush.
Mounting the Control Handle
6
7
Take out the screw (11) and remove
N
the nut (12) from the control
handle (1).
1
Pass the control handle (1) under
N
the drive tube and put it down on the
right-hand side of the machine.
Swing the control handle (1) behind
N
the handlebar so that the throttle
trigger (13) is facing up.
14
11
1
12
Push the control handle (1) in this
N
position onto the end of the
handlebar (2) until the holes (14)
are in alignment – the throttle
trigger (13) points up.
12
11
Fit the nut (12) in the control
N
handle (1), insert the screw (11)
and tighten it down firmly.
FS 360 C-M, FS 410 C-M, FS 460 C-M, FS 490 C-M
