Summary of Contents for Dan D'Agostino Relentless Mono Amplifier

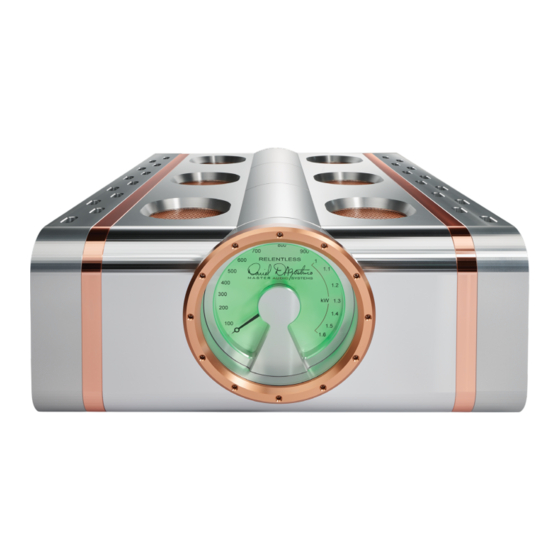

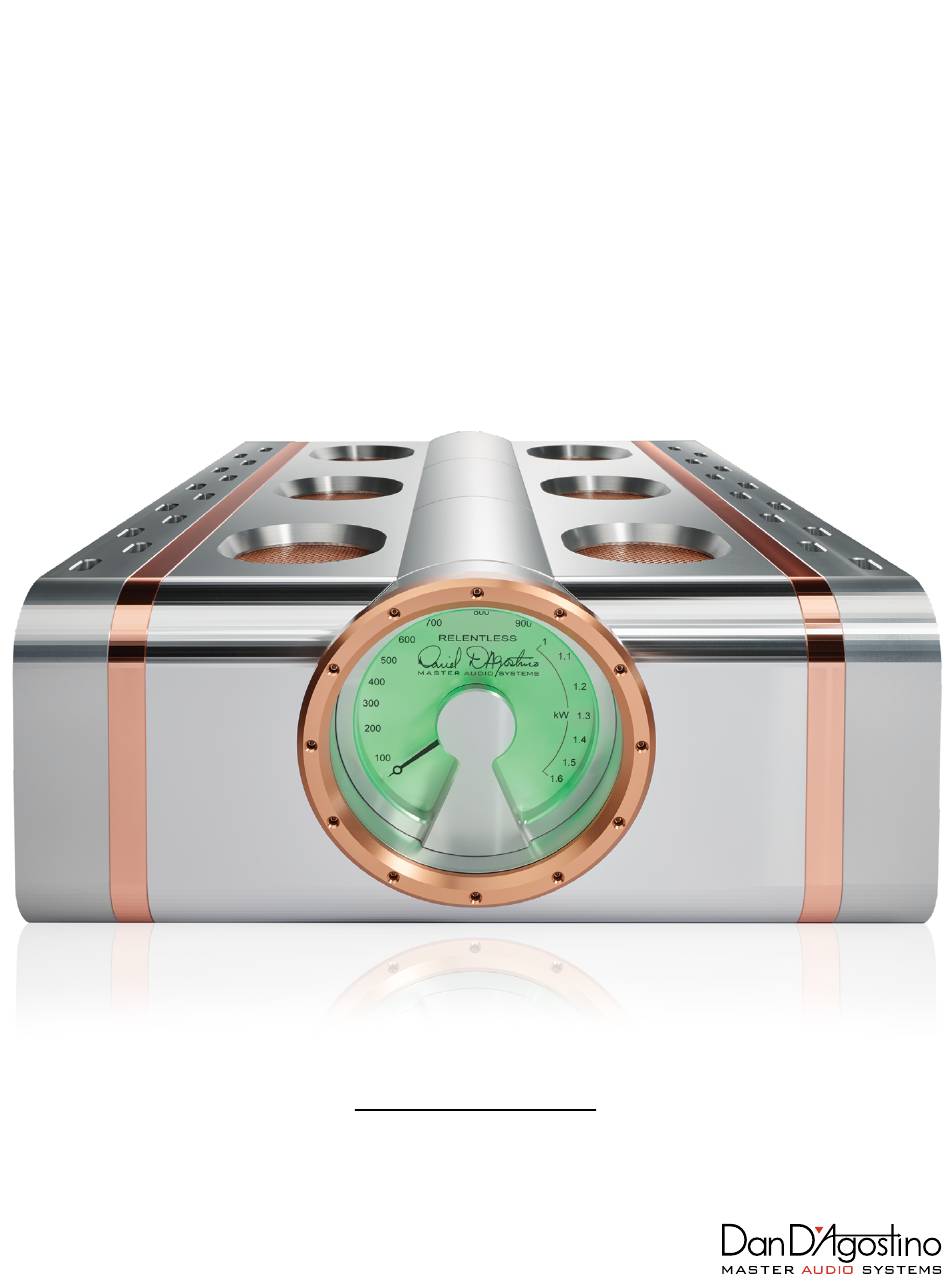

- Page 1 RELENTLESS MONOBLOCK AMPLIFIER OWN ER ’ S MAN UAL...
- Page 2 A NOTE FROM DAN D’AGOSTINO Founder, CEO, and chief designer of Dan D’Agostino Master Audio Systems Every audio designer has a product they’ve always wanted to make but never could. Either they worry it would be too costly for their customers to accept, or they fear it would be too far ahead of its time, or they lack the resources to fund the research and development process.
-
Page 3: Legal N Otificatio N S
LEGAL N OTIFICATIO N S U N PACKIN G AN D IN STALL ATIO N Dan D’Agostino Master Audio Systems is a registered trademark of Dan D’Agostino Master Audio Package contents Systems LLC. The information in this owner’s manual is subject to change without notice. Current If any of the following items are missing, please contact your dealer: Version 1.0 of this manual was produced by the Dan D’Agostino Master Audio Systems LLC engineering, sales and marketing departments. -
Page 4: Interconnect Cables
MAKIN G CO N N ECTIO N S TO TH E RELENTLES S M O N O B LOCK AM PLIFIER Speaker cables Install the speaker cables first. We recommend the use of high-quality cables terminated with spade or ring lugs that will fit the amplifier’s binding posts. We advise against the use of bare-wire connections. Note that the positive (+) binding post has a red ring and the negative (-) binding post has a black ring. - Page 5 AC cord The Relentless amplifier is fitted with threaded terminals for its power connections, rather than the IEC connector found on almost all other power amplifiers. Your amplifier has been shipped with the appropriate power cord for the voltage and socket available in your region/country. We strongly recommend you have a licensed electrician connect your power cable, to ensure the connections are correct.
-
Page 6: A Loo K In Sid E
Item Part Number Description Revision 32217-01 Meter Bezel 32217-02 Meter Housing 32217-03 Meter Plate A LOO K IN SID E 32217-04 Meter Blind 32217-05 Faceplate 32217-06 Rear Panel 32217-07 Bottom Plate Premium parts and precision 32217-08 Top Cover machining of copper and 32217-09 Hump 32217-10... -
Page 7: Operation
O PER ATIO N RELENTLES S M O N O B LOCK AM PLIFIER LIMITED WARR ANT Y Initial power-up of the amplifier Dan D’Agostino Master Audio Systems LLC warrants the Relentless monoblock amplifier against Make sure the main power switch on the back of the amplifier is in the up position. The power meter manufacturing defects and defects in materials for five years from the date of purchase from an will be illuminated in red. -
Page 8: Specifications
SPECIFICATIO N S Frequency response 20 Hz to 20 kHz, ±0 dB <0.1 Hz to 100 kHz, +0/-3 dB Signal-to-noise ratio >113 dB, wideband, unweighted, ref. to full power output Gain 28 dB Total harmonic distortion <0.007% at 1 kHz, at 1,500 W, 8Ω Input impedance 100 kΩ... - Page 9 www.dandagostino.com Designed, handmade and assembled in the USA using USA machinists, vendors and parts procurement. © 2018 DAN D’AGOSTINO MASTER AUDIO SYSTEMS LLC. ALL RIGHTS RESERVED.
