Project Source FP4AF261CP Manual page 8

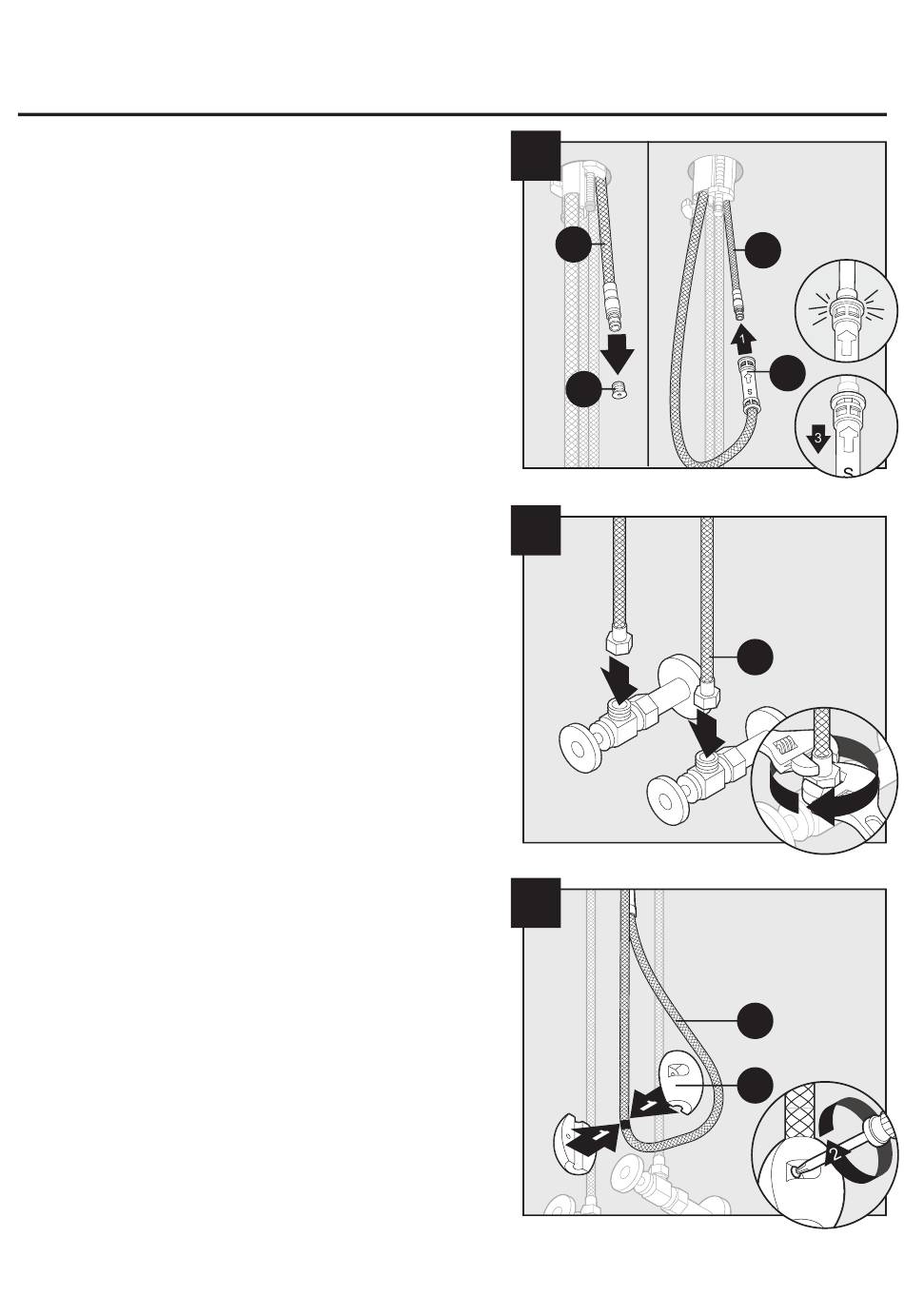

ASSEMBLY INSTRUCTIONS
12. Remove the cap (C) from the quick connect tube
(D). Attach the quick connector (G) to the quick
connect tube (D). Pull down the quick connector
(G) to ensure it is secure.
NOTE: For removal, see "Quick Connector
Removal page 9."
13. Connect and tighten the water supply line nuts by
using two wrenches.
Note: Ensure the supply lines are not being
kinked during installation and note the red line is
for hot and blue line is for cold. When attaching
the flexible hoses, ensure there is no significant
twisting or deformation. Do not bend into a V or L
shape. Do not use if there are any visible signs of
damages.
14. Attach the weight (L) to cover the weight locator
label on the spray hose (K). Use a Phillips
screwdriver to secure.
