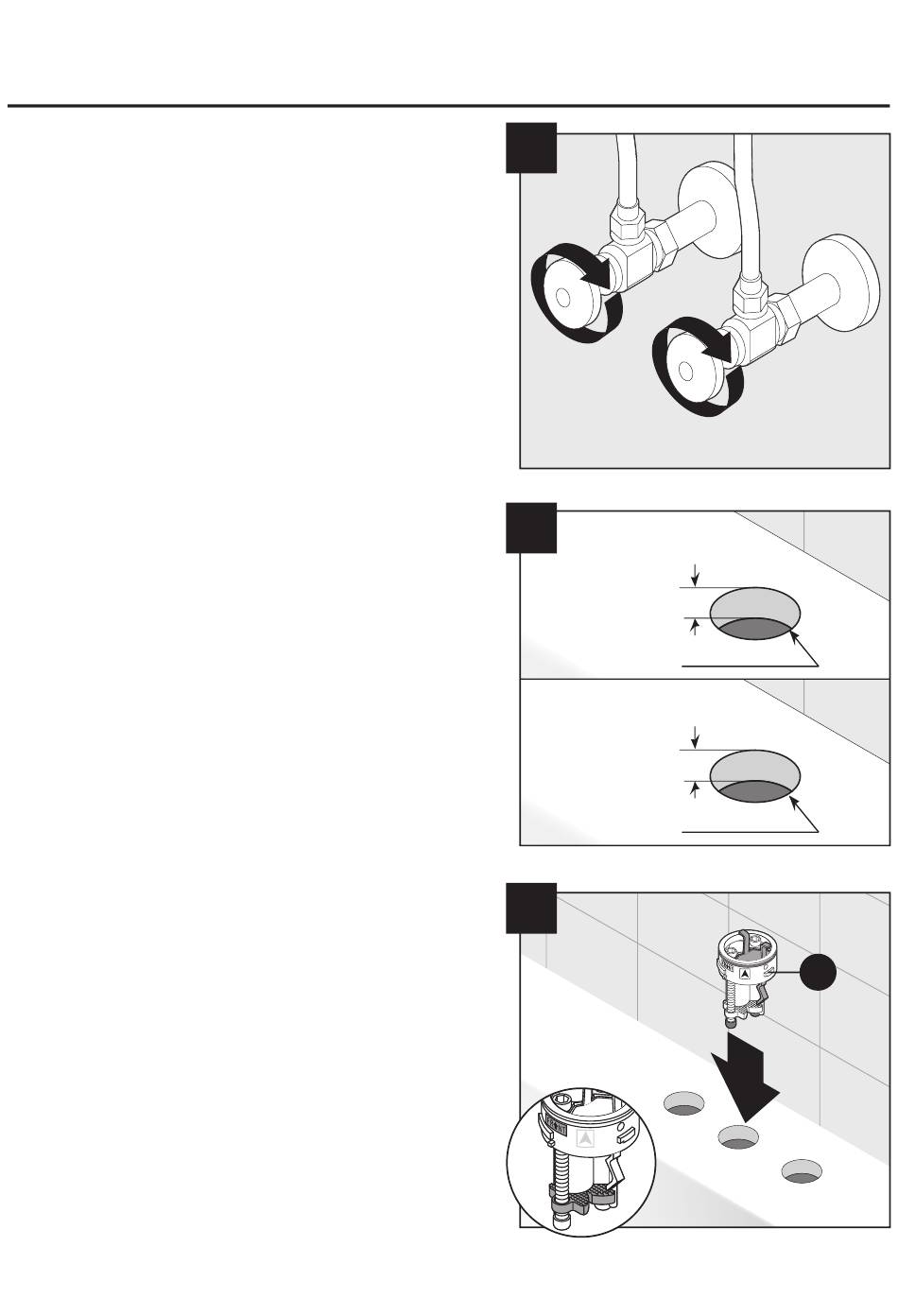

ASSEMBLY INSTRUCTIONS
1. Turn off water supply. Remove existing faucet
if necessary.
2. Check for the proper thickness of the sink.
3a. Without deck plate:
Insert the base (I) into sink. "FR£NT" on the
base (I) must face the front of the sink. Rotate
the two half-moon locking nuts inward before
inserting the base (I) into the sink.
1
1
2
2
Without deck plate
1/16" (1mm) min.
1-1/2" (38 mm) max.
Ø 1-3/8" (35 mm) min.
Ø 1-1/2" (38 mm) max.
With deck plate
1/16" (1mm) min.
1" (25.4 mm) max.
3a
Ø 1-3/8" (35 mm) min.
Ø 1-1/2" (38 mm) max.
3a
3a
4
I
