INSTALLATION AND OPERATING MANUAL
Recessed Warm
Ceiling Heaters
ACT03, ACT04, ACT06
WARNINGS
Nortek Global HVAC (UK) Limited equipment must be installed and maintained in accordance with the
requirements of the Codes of Practice or rules in force. All external wiring MUST comply with the codes of practice
or rules in force in the country of installation.
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.
Read instructions before installing or servicing this equipment.
Reznor® Is a registered trademark of Nortek Global HVAC, LLC.
ErP
2018
Part No. D301048
Advertisement
Table of Contents
Related Manuals for Reznor ACT03
Summary of Contents for Reznor ACT03
- Page 1 Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read instructions before installing or servicing this equipment. Reznor® Is a registered trademark of Nortek Global HVAC, LLC. Part No. D301048 2018...
-
Page 2: Table Of Contents
General Information 1.1 Introduction 1.2 General 1.3 Electrical Supply 1.4 Controller `RX` models 1.5 Location 1.6 Clearance distances 1.7 Clearance distances Dimensions Installation Details 3.1 Mounting Electrical Connections 4.1 Electrical Connections 4.2 Electrical connections for RX models Operation 5.1 RX Models ACT 03/04/06 – RX Servicing &... -
Page 3: General Information
General Information 1.1 Introduction This instruction manual describes the Reznor Recessed Warm Air Ceiling Heaters. The heater is designed for discreet positioning in a suspended 600mm ceiling within retail or commercial premises. It can fit a recess as shallow as 210mm. -
Page 4: Location
If the ACT03 – RX or ACT03 – RX/ ACT04 – RX heaters are mounted close to the wall or corner the discharge opening should be facing the wall. The minimum distance from the wall or corner is 0.8m or 1.2m for the ACT06 –... -
Page 5: Dimensions
Dimensions ACT 03/04 ACT 06 Page 5... -
Page 6: Installation Details
Installation Details 3.1 Mounting The Reznor recessed ceiling heaters are designed to fit in place of a standard 600mm ceiling panel. It is essential that the ceiling frame is adequately supported to support the weight of the heater, or that the heater is individually supported. There is provision on the heater for chain or wire, support or mounting. -
Page 7: Electrical Connections
Electrical Connections 4.1 Electrical Connections These units are suitable for connection to a 230/240 Volt 50 Hz single phase supply. The appliance shall be connected to the supply via an appropriate switched fused double pole isolator having a contact separation of greater than 3mm. Test for correct operation and refit the cover. -
Page 8: Operation

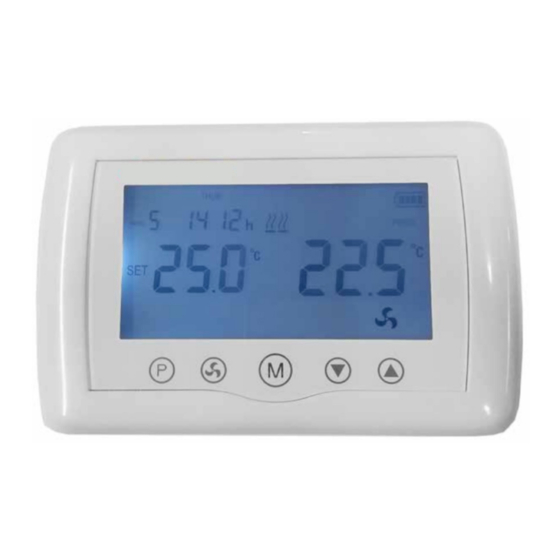

Operation 5.1 RX Models ACT 03/04/06 – RX The heaters ACT03 – RX, ACT04 – RX and ACT06 – RX can be controlled by CONSORT wireless controller CRX2. The heaters will not work without a controller. Each controller has unique identification code, it can control unlimited number of heaters and will not interfere with other controllers within the building. -
Page 9: Servicing & Maintenance
Servicing & Maintenance 6.1 Maintenance Always ensure that the main external electricity supply is switched off before commencing any maintenance on this heater. To obtain the best results from the heater, it is essential to avoid the accumulation of dust and dirt within the unit on the air inlet and discharge grilles. For this reason regular cleaning is necessary. -
Page 10: Spares
AFFIX AGENTS DETAILS HERE West Midlands, DY5 1QA United Kingdom Tel: +44 (0) 1384 489 250 Fax: +44 (0) 1384 489 707 reznorsales@nortek.com Registered in England No˙ 1390934 www.reznor.eu/ Registered office: The Colmore Building, 20 Colmore Circus Queensway, Birmingham, West Midlands, B4 6AT...
