Reznor UEAS Installation & Operation Instruction

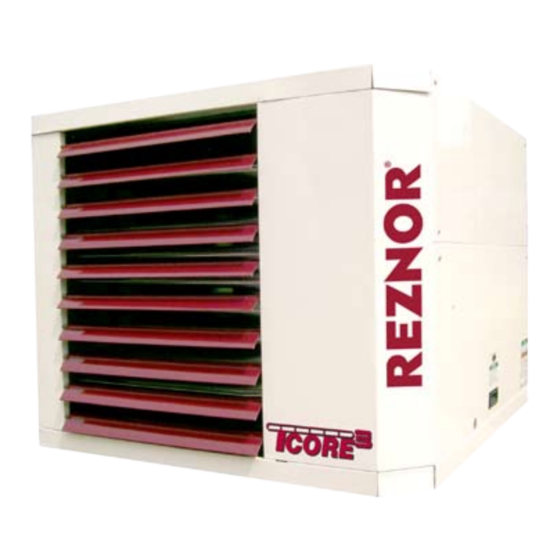

High-efficiency, separated-combustion, low static unit heater
Hide thumbs Also See for UEAS:
Table of Contents

Advertisement

Quick Links

See also: Installation, Operation & Maintenance Manual
®
!
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or
property damage.
Be sure to read and understand the installation, operation, and service instructions in
this manual.
Improper installation, adjustment, alteration, service, or maintenance can cause
serious injury, death, or property damage.
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Leave the building immediately.
•
Immediately call your gas supplier from a phone remote from the building.
Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency,
or the gas supplier.
This booklet includes installation, operation, maintenance, and service information. Before beginning
any procedure, carefully review all information, paying particular attention to the warnings. All installation
procedures must be in compliance with all codes and requirements of authorities having jurisdiction.
Installation / Operation / Maintenance
Keep this booklet for future reference.
Form I-UEAS (Version B)
Obsoletes I-UEAS (Version A)
Applies to: Model UEAS,
High-Efficiency, Separated-
Combustion, Low-Static
Form I-UEAS, P/N 221232 R11, Page 1
Unit Heater
