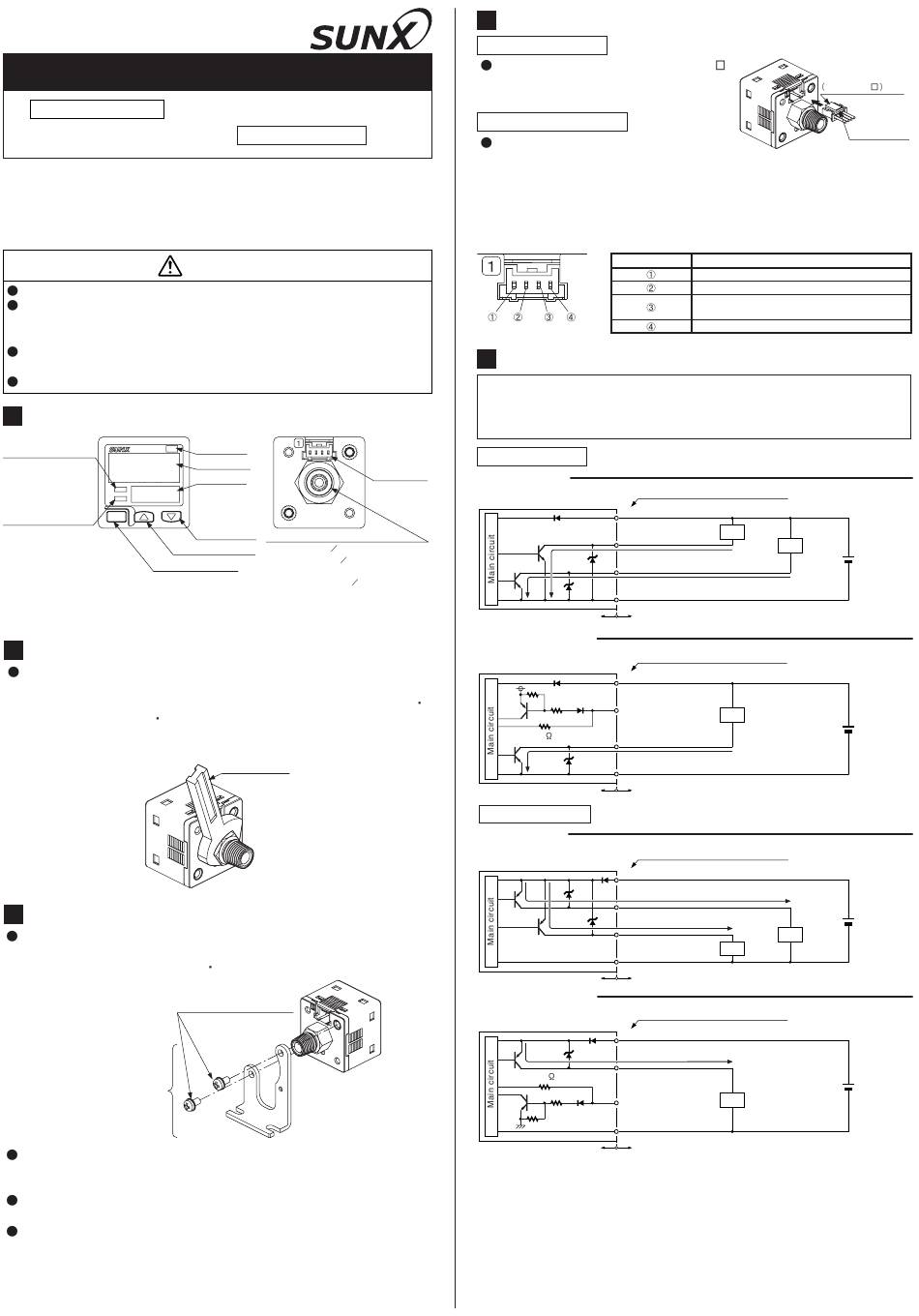

Sunx DP-100-M Series Instruction Manual

INSTRUCTION MANUAL
Pressure Sensor High-performance Digital Display
DP-100
Series
Thank you very much for using SUNX products. Please read this
Instruction Manual carefully and thoroughly for the correct and optimum
use of this product. Kindly keep this manual in a convenient place for quick
reference.
Never use this product as a sensing device for personnel protection.
In case of using sensing devices for personnel protection, use products
which meet laws and standards, such as OSHA, ANSI or IEC etc., for
personnel protection applicable in each region or country.
DP-100 series is designed for use with non-corrosive gas. It cannot be
used for liquid or corrosive gas.
Japanese Measurement Laws prohibit the use of this product in Japan.
1 NAMES OF EACH PART
Output 1 operation
indicator
DP-100
Lights up when compa-
rative output 1 is ON
Output 2 / analog
voltage output oper-
ation indicator
Standard type:
Lights up when compa-
Setting value UP key
rative output 2 is ON
Mode selection key
High-function type:
Lights up when analog
voltage output is set
Note: If set the pressure unit other than 'MPa' or 'kPa', attach the unit switching label
corresponds to the set pressure unit.
2

PIPING

When connecting a commercial coupler to the pressure port, attach a
12mm spanner (14mm for DP-100-E type) to the pressure port's hexagon
section to fix the port, and then tighten with a tightening torque of 9.8N m
or less (M5 female: 1N m or less). The commercial coupler or pressure
port section will be damaged if the tightening torque is excessive.
Wrap sealing tape around the coupler when connecting to prevent leaks.
3

MOUNTING

The sensor mounting bracket (MS-DP1-1) is available as an option.
When mounting the sensor onto the sensor mounting bracket, etc., the
tightening torque should be 0.5N m or less.
Sensor mounting bracket
MS-DP1-1 (Optional)
The panel mounting bracket MS-DP1-2 (optional) and MS-DP1-4 (op-
tional), as well as the front cover MS-DP1-3 (optional) and DPX-04 (op-
tional) are also available.
The type of the front cover is different depending on the applied mount-
ing bracket. Use MS-DP1-3 for MS-DP1-2, and DPX-04 for MS-DP1-4.
For mounting of the panel mounting bracket, refer to the Instruction
Manual enclosed with MS-DP1-2 or MS-DP1-4.
For use outside Japan
MJE-DP100 No.0004-94V
WARNING
Unit display
(Note)
Main display
Sub display
Setting value
DOWN key
Pressure port
1 8
DP-100 type: R + M5 female screw
DP-100-E type: G 1 8
DP-100-M type: M5 female screw
1 8
DP-100-N type: NPT
12mm spanner
M3 (length 6mm) screws
with washers
(Accessory with MS-DP1-1)
4

WIRING

Connection method
Insert the cable with connector CN-14A-C
into this product's connection connector
section as shown in the right figure.
Disconnection method
Pressing the release lever of the cable
with connector, pull out the connector.
Note: Do not pull by holding the cable without pressing the release lever, as this can
cause cable break or connector break.
<Connection connector pin arrangement>
5 I/O CIRCUIT DIAGRAMS
When using the analog voltage output, take care to the input impedance of
the connected device.
Furthermore, note that if the cable is extended, the cable resistance will
cause the voltage to drop.
NPN output type
Connection
connector
Standard type
+ M5 female screw
+ M5 female screw
High-function type
5V
PNP output type
Standard type
High-function type
Connector pin No.
Standard type: Comparative output 2
High-function type: Analog voltage output or external input
Color code of cable with connector
(Brown) +V
(Black)
Comparative output 1
100mA max.
(White) Comparative output 2
(Blue) 0V
Internal circuit Users' circuit
Color code of cable with connector
(Brown) +V
(White)
Analog voltage output
or external input
1k
(Black) Comparative output 1
100mA max.
(Blue) 0V
Internal circuit Users' circuit
Color code of cable with connector
(Brown) +V
(Black) Comparative output 1
100mA max.
(White) Comparative output 2
(Blue) 0V
Internal circuit Users' circuit
Color code of cable with connector
(Brown) +V
100mA max.
(Black) Comparative output 1
1k
(White)
Analog voltage output
or external input
(Blue) 0V
Internal circuit Users' circuit
Cable with connector
CN-14A-C
Release lever
<Recommended product>
Contact: SPHD-001T-P0.5
Housing: PAP-04V-S
[JST Mfg. Co., Ltd.]
Terminal name
+V
Comparative output 1
0V
Load
Load
+
12 to 24V DC
_
±10%
100mA max.
Load
+
12 to 24V DC
_
±10%
100mA max.
+
12 to 24V DC
_
±10%
Load
Load
+
12 to 24V DC
_ ±10%
Load
