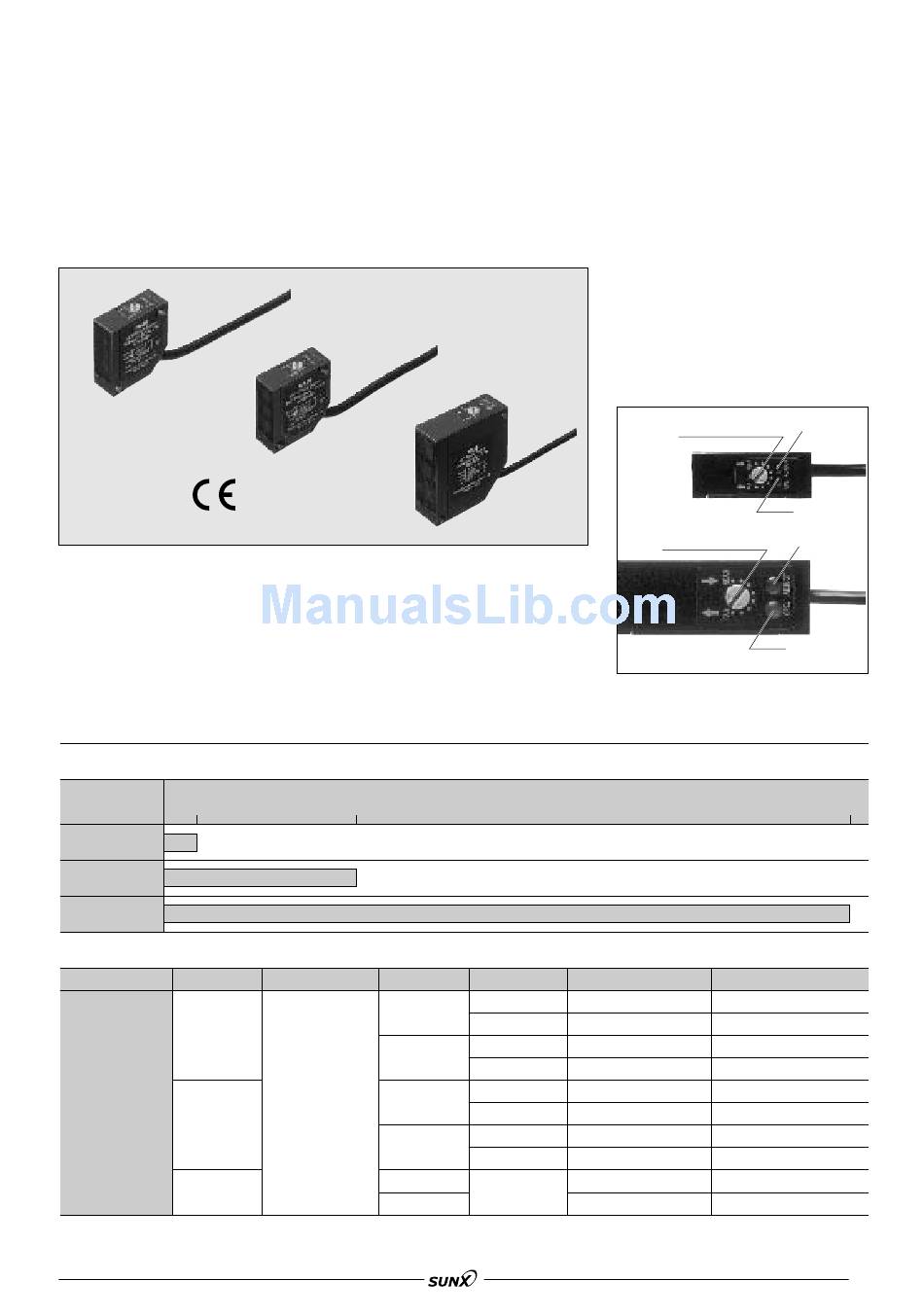

Sunx MQ-W3 Specification Sheet

MQ-W
Triple Beam Trigonometric
Area Reflective Photoelectric Sensors
Very accurate detection by triple beam triangulation sensing method in a compact package.
(Comply with EMC directive MQ-W-EM type only)
FEATURES
Accurate detection regardless of
color, material, or shape of objects
Area reflective type sensor can detect
white or black object at the same dis-
tance. In case of diffuse reflective type,
it is difficult to detect objects of various
color with the same sensitivity setting.
MQ-W area reflective type sensor is
useful for such a case.
SENSING RANGES
0.03 .098
MQ-W3 types
MQ-W20 types
MQ-W70 types
PRODUCT TYPE
Detection method Range
0.03 m .098 ft.
Triple beam area
reflective type
0.2 m .656 ft.
0.7 m 2.297 ft.
1 These suffix EM types conform to CE. These types have the grounding connection inside of housing
*
266
SERIES
No-miss operation regardless of
back-grounds
Area reflective type sensor does not
detect objects beyond the set range.
Resistant to lens surface soiling
Area reflective type sensor detects the
distance by the angle, not the intensity
of received light. Even if the lens sur-
face is soiled by dust or any powdery
material, there is a little variation of
sensing range.
0.2 .656
Rated operating voltage Control output
NPN
PNP
12 to 24 V DC NPN
PNP
NPN
PNP
08/2005
Environmental resistance
Immersion protected construction
(equivalent to IEC IP67)
High speed detection: Max. 2 ms
Light-ON/Dark-ON output is wire
selectable.
Operating voltage of 12 to 24 V DC
Adjuster and Indicators
MQ-W70 type
Sensing range (m ft.)
Light source Part number
Infrared LED MQ-W3A-DC12-24V
Red LED MQ-W3AR-DC12-24V
Infrared LED MQ-W3C-DC12-24V
Red LED MQ-W3CR-DC12-24V
Infrared LED MQ-W20A-DC12-24V
Red LED MQ-W20AR-DC12-24V
Infrared LED MQ-W20C-DC12-24V
Red LED MQ-W20CR-DC12-24V
MQ-W70A-DC12-24V
Infrared LED
MQ-W70C-DC12-24V
Adjustment
Distance adjustment dial
indicator LED
MQ-W3 type Operation
MW-W20 type Indicator LED
Adjustment
Distance adjustment dial
indicator LED
Operation
Indicator LED
0.7 2.297
1
* CE types
MQ-W3A-DC12-24VEM
MQ-W3AR-DC12-24VEM
MQ-W3C-DC12-24VEM
MQ-W3CR-DC12-24VEM
MQ-W20A-DC12-24VEM
MQ-W20AR-DC12-24VEM
MQ-W20C-DC12-24VEM
MQ-W20CR-DC12-24VEM
MQ-W70A-DC12-24VEM
MQ-W70C-DC12-24VEM
