EVAL-AD7761FMCZ User Guide
Channel Enable/Disable Check Box
The channel enable and disable check boxes, as shown in
Figure 18, individually enable channels for display and analysis.

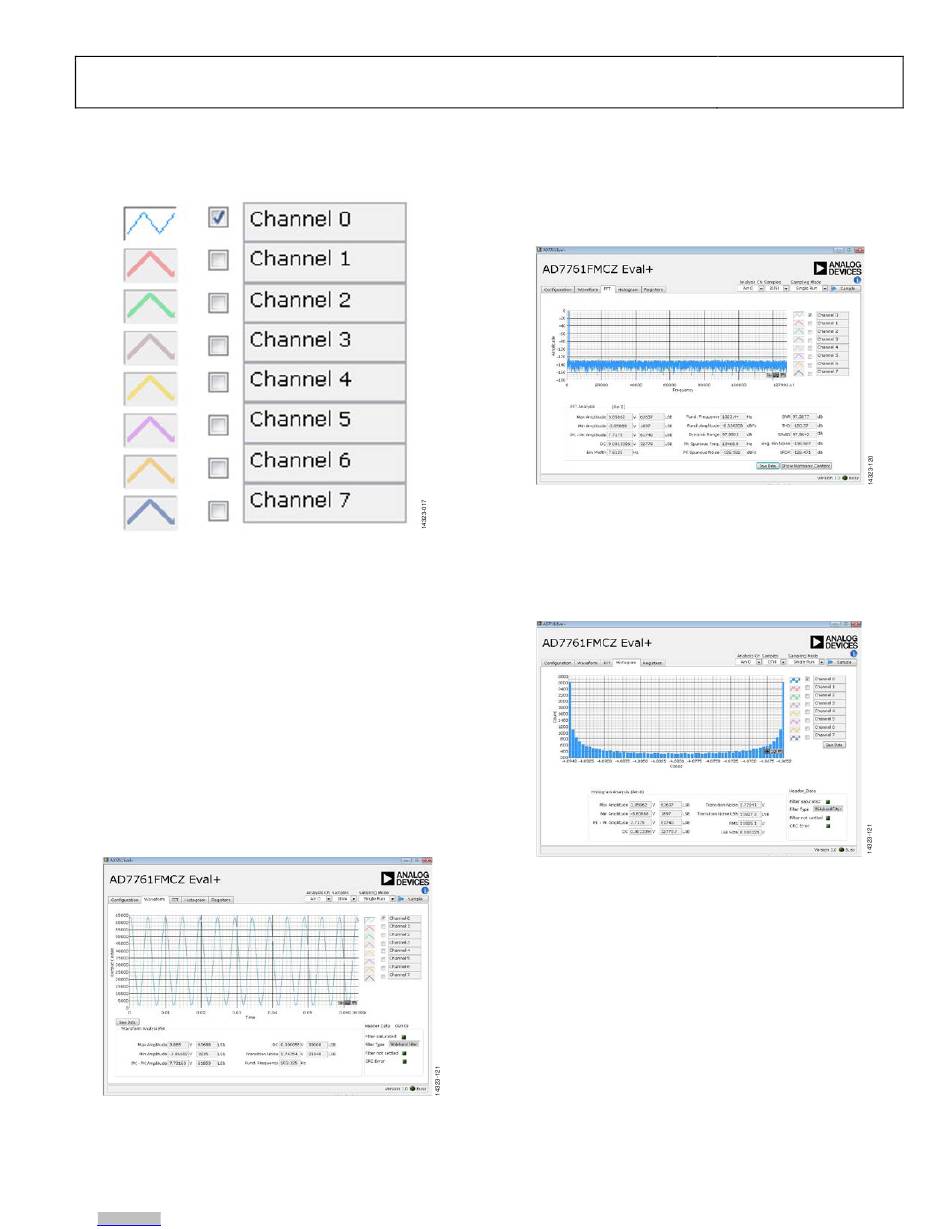

Figure 18. Channel Enable/Disable Check Boxes
Help Button
Click the help button (the ? icon) to show information about
the AD7761 software. The help button is located in the top right
corner of the Configuration tab (see Figure 16).
Status Indicator and Busy light
The status bar at the bottom of the screen indicates the current
state of the AD7761
the software is busy performing an action. Refrain from
carrying out any more actions when this light is lit.
Waveform Tab
The Waveform tab displays a time domain graph of the
sampled data. Controls beneath the graph allow zooming and
panning. Amplitude information is given beneath the graph for
the analysis channel selected.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
software. The Busy LED illuminates when
Figure 19. Waveform Tab
FFT Tab
The FFT tab shows a frequency domain graph of the sampled
data. Controls beneath the graph allow zooming and panning,
and control over amplitude and frequency scaling. Frequency
and amplitude information is given beneath the graph for the
selected analysis channel.
Histogram Tab
The Histogram tab shows a histogram of the sampled data.
Controls beneath the graph allow zooming and panning, and
control over amplitude scaling. Amplitude information is given
beneath the graph for the selected analysis channel.
Rev. 0 | Page 15 of 17
Figure 20. FFT Tab
Figure 21. Histogram Tab
UG-949
