UG-949
Installing the System Demonstration Platform Board
Drivers
After the installation of the evaluation software is complete, a
welcome window displays for the installation of the SDP drivers.
1. With the EVAL-SDP-CH1Z
the USB port of the PC, ensure that all other applications
are closed, and then click Next.

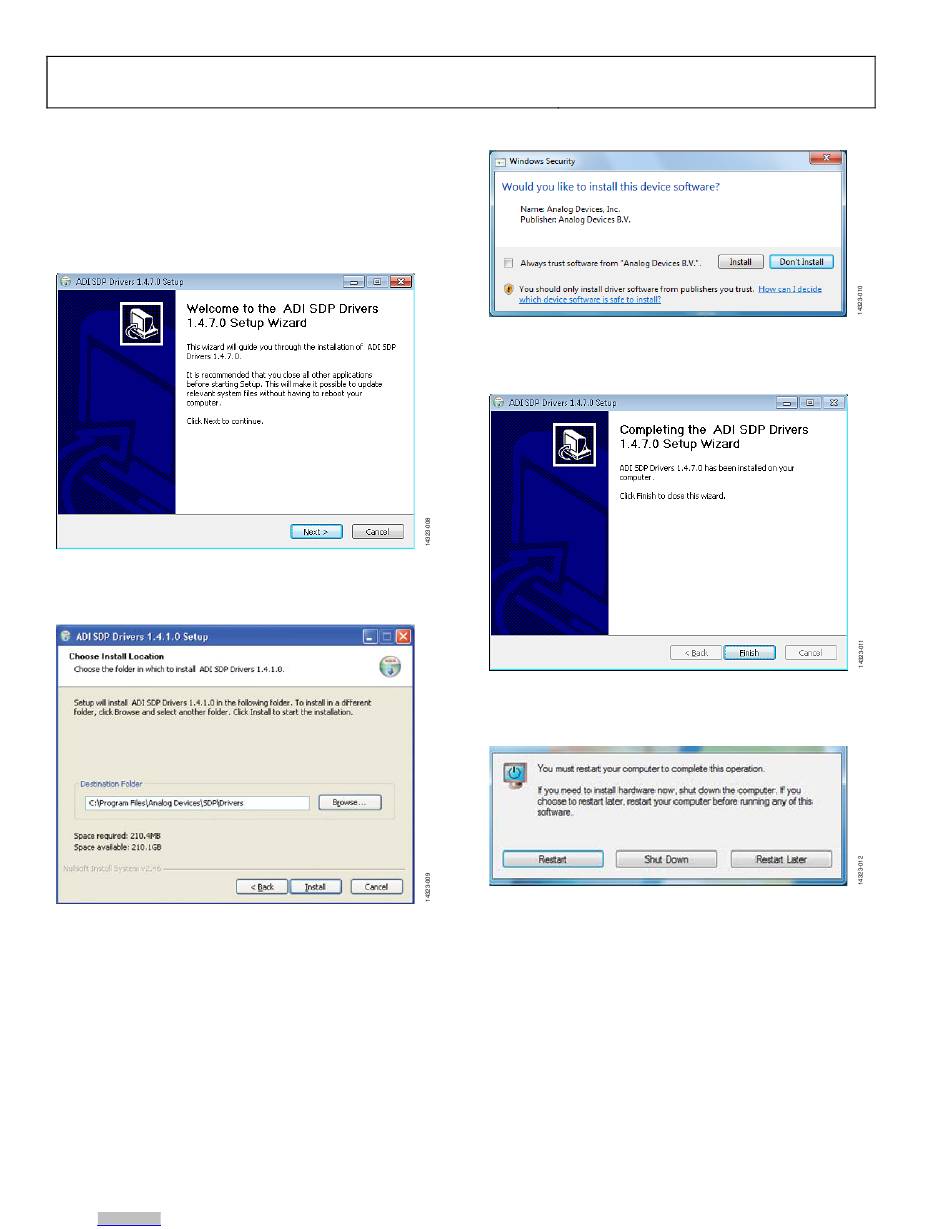

Figure 9. SDP Drivers Setup: Beginning the Drivers Installation
2. Select the location to install the drivers, and then click
Next.
Figure 10. SDP Drivers Setup: Selecting the Location for Drivers Installation
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
board still disconnected from
Rev. 0 | Page 12 of 17
EVAL-AD7761FMCZ User Guide
3. Click Install to confirm that you want to install the drivers.
Figure 11. SDP Drivers Setup: Granting Permission to Install Drivers
4. To complete the drivers installation, click Finish, which
closes the installation wizard.
Figure 12. SDP Drivers Setup: Completing the Drivers Setup Wizard
5. Before using the evaluation board, you must restart your
computer.
Figure 13. SDP Drivers Setup: Restarting the Computer
