AnyTone SMART User Manual

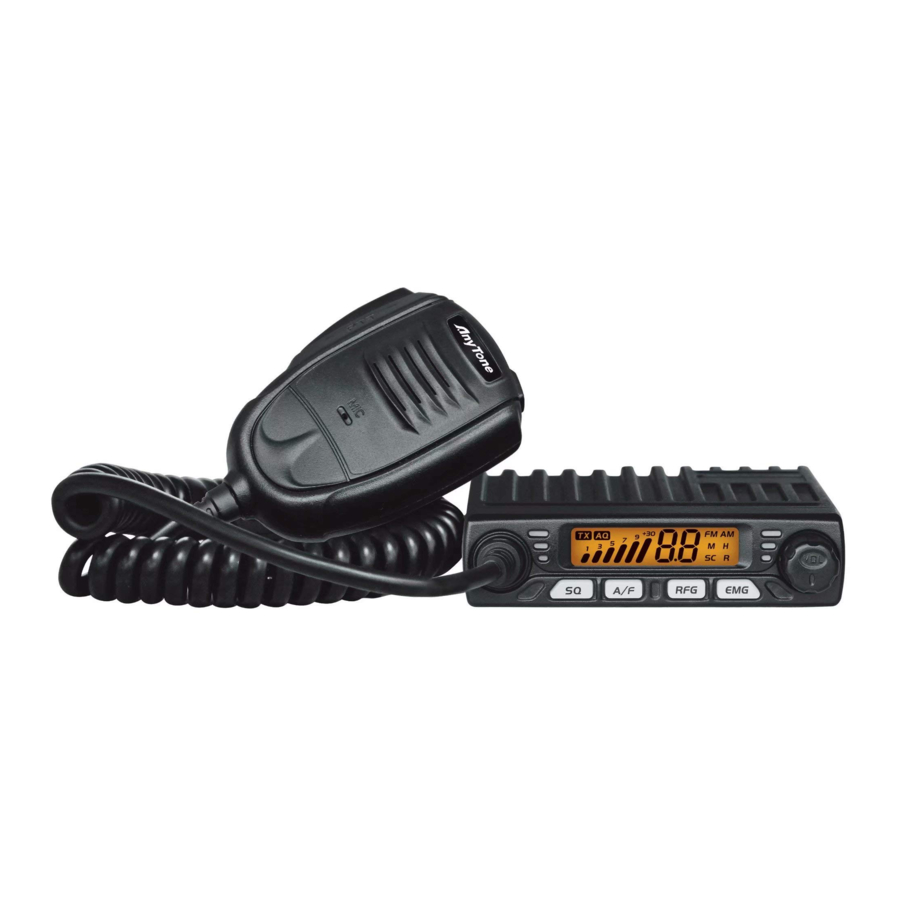

10 meter amateur mobile radio
Hide thumbs Also See for SMART:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Qixiang Electon Science & Technoloyg Co.,Ltd.
www.qxdz.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AnyTone SMART

Summary of Contents for AnyTone SMART

  • Page 1 Qixiang Electon Science & Technoloyg Co.,Ltd. www.qxdz.cn...
  • Page 2 SMART 10 METER AMATEUR MOBILE RADIO USER'S MANUAL...

  • Page 3: Know About This Radio

    KNOW ABOUT THIS RADIO Squelch control, SQ, ASQ switch key Mode/Scan key RF Gain control CH9/CH19/Keypad lock Power On/Off Volume control External speaker Jack Antenna Jack...

  • Page 4: Volume Control

    HOW TO USE THIS RADIO Power On/Off the radio Turn VOL switch clockwise to power on the radio, the LCD displays the Norms and then displays channel number. Turn VOL switch anti-clockwise, until hear Ka Ta, the radio is powered off. Volume Control Turn clockwise to increase volume, anti-clockwise to decrease volume.

  • Page 5: Mode Control

    Mode Control Short press key to switch between AM /FM mode. The LCD displays the selected mode. RF Gain Control key, LCD displays R and the present RF Short press gain level flashes. Short press microphone [ UP ] or [ DN ] to change level. Short press key to exit RF gain level control.

  • Page 6: Resume Factory Default

    Band Control Hold to power on radio, until LCD displays the bands; Press [ UP ] or [ DN ] to choose wanted bands; Power off and power on again. High/Low Control Hold and PTT key to power on; UP ] or [ DN ] to choose wanted power level, PH is 8W, Press [ PL is 4W;...

  • Page 7: Specification

    SPECIFICATION GENERAL Modulation Mode AM/FM Frequency Range 28.000-29.700MHz Frequency Tolerance ±5.0ppm Input Voltage 13.2V 109x104x25mm Dimensions Weight 421g Ferquency Control PLL Synthesizer Operating Temperature Range -20℃ ~ +50℃ Transmit 2A MAX Current Drain Receive Squelched 0.3A VOL Max 0.8A Antenna Connector UHF,SO-239 TRANSMITTER Power Output...
  • Page 9 Qixiang Electron Science & Technology Co.,Ltd radio generators RF electromagnetic energy during transmit mode. This radio is designed for and classified as“Occupational Use Only”,meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways To Minimize Such hazards. This radio is NOT intended for use by the“General Population”...
