Clas Ohlson T0004 Instruction Manual

Dynamo Radio
Art.no 38-5273 Model T0004
Please read the entire instruction manual before using the product and
save it for future reference. We reserve the right for any errors in text or
images and any necessary changes made to technical data. If you have
any questions regarding technical problems please contact our
Customer Services.
Safety
• The battery should be charged when the light from the torch
becomes weak.
• If an external charger is used, it must have a 6 V DC output voltage
and a 300 mA current (charger sold separately).
Note: The DC connector must have centre-positive (+) polarity.
• Never expose the product to impacts, moisture or high temperature.
• The product should not be taken apart or modified.
• The product should only be repaired by a qualified service technician.
Features
1 2 3 4
5 6 7
8
9
10
1. [OPEN] Turn in the direction of the arrow to open and change
the angle of the torch.
2. [FLASH] Switch for flashing warning light.
3. [ON/ OFF/ SIREN] Switch for torch and siren.
ON: Switches the torch on.
OFF: Switches the torch and siren off.
SIREN: Switches the siren on.
4. Charging indicator - lights when the built-in battery is being charged.
5. [TUNING] Station selector knob for the radio.
6. [OFF] Volume control which also turns the radio off.
7. [AM/FM] Switch for selecting either AM or FM radio bands.
8. Charging crank.
9. Selector switch for charging either the built-in battery (IN) or an
external device (OUT).
10. DC 6V – Charger cable socket.
GREAT BRITAIN • CUSTOMER SERVICE Contact number: 08545 300 9799, e-mail: customerservice@clasohlson.co.uk, internet: www.clasohlson.com/uk

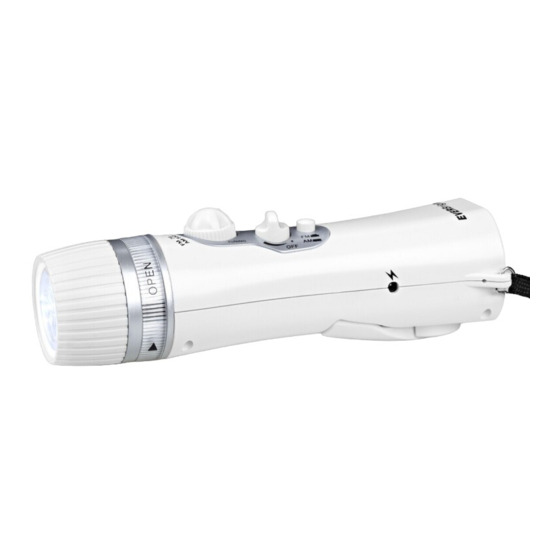

Product description
• Dynamo radio which is can easily be charged by winding the crank.
• Built-in, angle-adjustable LED torch.
• Flashing, red warning light and siren.
• Can also be used to charge mobile phones. Comes with charger
cable (USB Micro-B).
Operating instructions
Flashing warning light
Press [FLASH] to turn the flashing red LED warning light on or off.
Siren
• Set the [ON/OFF/SIREN] switch to SIREN to turn the siren on;
set the switch to OFF to turn the siren off.
• When the siren is switched on, the torch cannot be used.
• If the siren is switched on when the radio is on, the radio is
automatically switched off for as long as the siren sounds.
• The siren and the flashing warning light can be used simultaneously.
Torch
• Set the [ON/OFF/SIREN] switch to ON to turn the torch on;
set the switch to OFF to turn it off.
• The angle of the torch can be adjusted. Turn the knob (1) in
the direction of the arrow to alter the angle of the torch.
• Both the radio and the warning light functions can be used when
the torch is switched on.
Radio
1. The radio is switched on by turning the [OFF] knob clockwise until it
clicks; it is switched off by turning the knob anticlockwise.
2. Select the desired radio band using the [AM/FM] selector.
The button should be retracted for AM and extended for FM.
3. Set the desired station using the [TUNING] knob.
4. Adjust the volume using the volume control (6).
Dynamo charging
1. Fold out the charging crank (8). Set the selector (9) under the crank
to the IN position.
2. Wind the handle at a rate of 1½–2 turns per second. The charging
indicator (4) will come on to confirm that the built-in battery is being
charged. Do not wind the handle too quickly.
Winding the handle for about 2 minutes (approx 120 turns/minute)
corresponds to: Listening to the radio for 10 minutes, using the torch
for 30 minutes, sounding the siren for 4 minutes or flashing the warning
light for 60 minutes. Charging a mobile phone for 2 minutes will provide
around 5 minutes of standby time (with approx 30 seconds talk time).
DC charging
The built-in battery can also be charged using an external electrical
battery charger (sold separately).
1. Set the selector switch (9) to the IN position. Plug the DC connector
of the external charger into the "DC 6V" charger cable socket (10).
2. Note: When charging the battery using an external charger you
must ensure that the output voltage is 6 V DC, that the current
is 300 mA and that the DC connector has a centre-positive (+)
polarity. The charging indicator (4) lights when the built-in battery
is being charged. The battery will be fully charged after 3–4 hours.
Disconnect the charger when the battery has been charged.
Charging a mobile phone via the charger cable
(USB Micro-B)
1. Fold out the charging crank (8).
2. Set the selector (9) under the crank to the OUT position.
3. Use the included charger cable to connect the device (phone) you
wish to charge to the "DC 6V" socket on the radio (10).
4. Wind the handle 1½–2 turns per second. Do not wind too quickly.
Note: Some mobile phones have a different type of charging port
than a USB Micro-B.
Care and maintenance
Clean the product using a soft, moist cloth. Use a mild detergent and
never use solvents or strong, abrasive cleaning agents for cleaning as
these can damage the product.
Disposal
This product should be disposed of in accordance with local regulations.
If you are unsure how to proceed, contact your local authority.
Specifications
Frequency AM: 530–1650 kHz
FM: 88–108 MHz
