DVCM 50 Quick Start Guide, cont'd
Confi guring the DVCM 50
The DVCM 50 can be programmed using the following methods:
•
•
•
Confi guring using IR learning
You can confi gure the DVCM 50 by using IR learning, which does not require
confi guration software. By this method, you can program the functions on your
DVD and/or VCR's remote control into the buttons on the DVCM front panel.
To program the DVCM via IR learning, follow these steps:
Step 1
Apply power to the DVCM.
Step 2

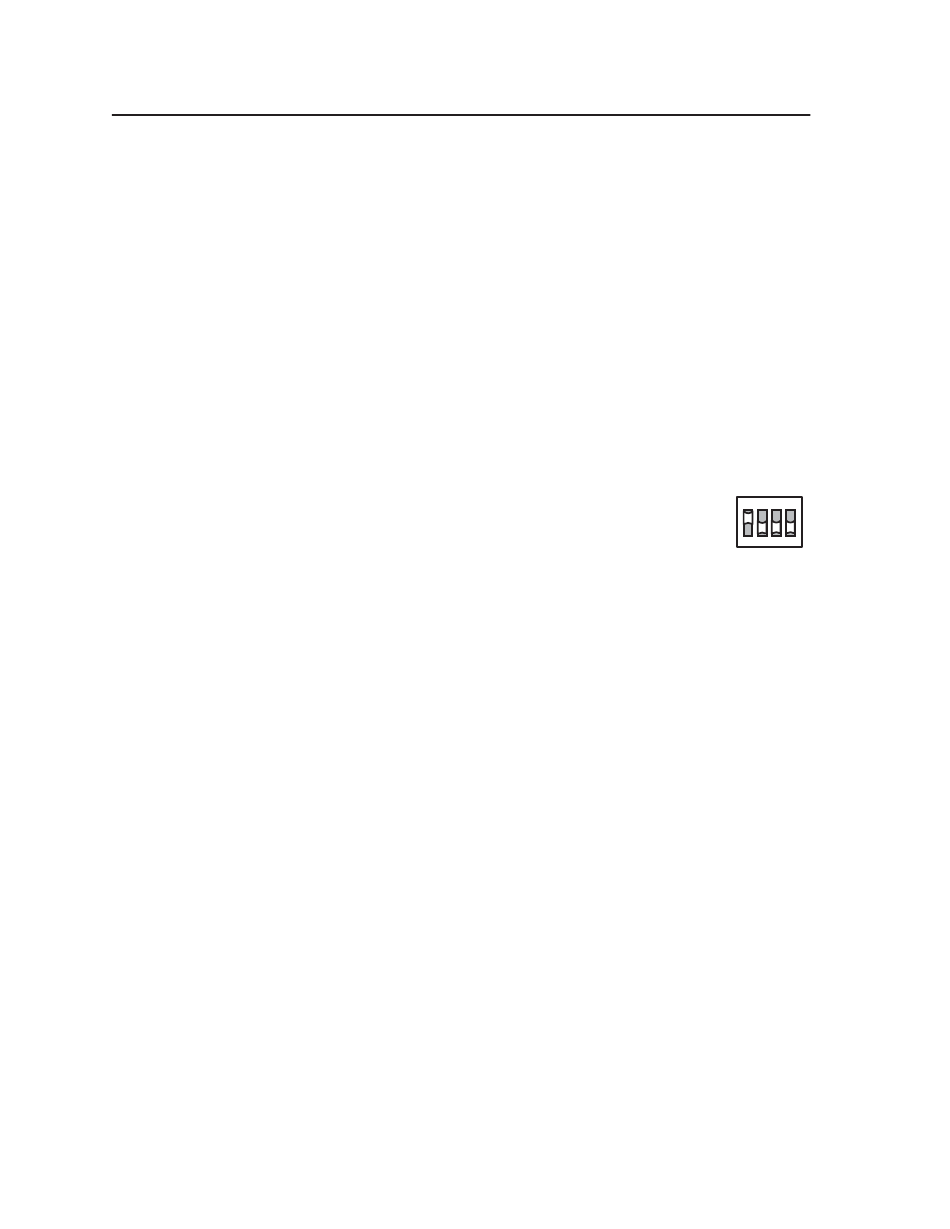

Set confi guration switch #1 on the rear panel to On, as shown at
right. All other switches should be Off.
Step 3
Press the DVD or VCR button on the front panel to select the mode in which
the button will be programmed. The LED lights above the button you pressed,
indicating that the front panel buttons will be programmed in that mode.
Step 4
Press the button on the front panel that will store the IR code that you want the
DVCM to learn. The following takes place on the DVCM rear panel:
•
www.camboard.de
DVCM 50 • Quick Start Guide
6
CAMBOARD Electronics
IR learning from your DVD or VCR remote control
IR data transfer from another DVCM 50 that has been confi gured previously
Using DVD/VCR drivers with the MLC 52/DVCM 50 Windows
confi guration software.
The orange button indicator LED(s) light and remain lit to show which button
was pressed. The diagram on the next page shows which LEDs are lit when
each button is pressed.
Tel. 07131 911201
Fax 07131 911203
®
-based
ON
1 2 3 4
