Repositioning the devices

To convert the server to a rackmount, you must reorient the following 5-inch storage bay com-
ponents:
•
CD-ROM or DVD-ROM drive
•
all 5-inch internal devices
•
all blank units
•
Operator panel

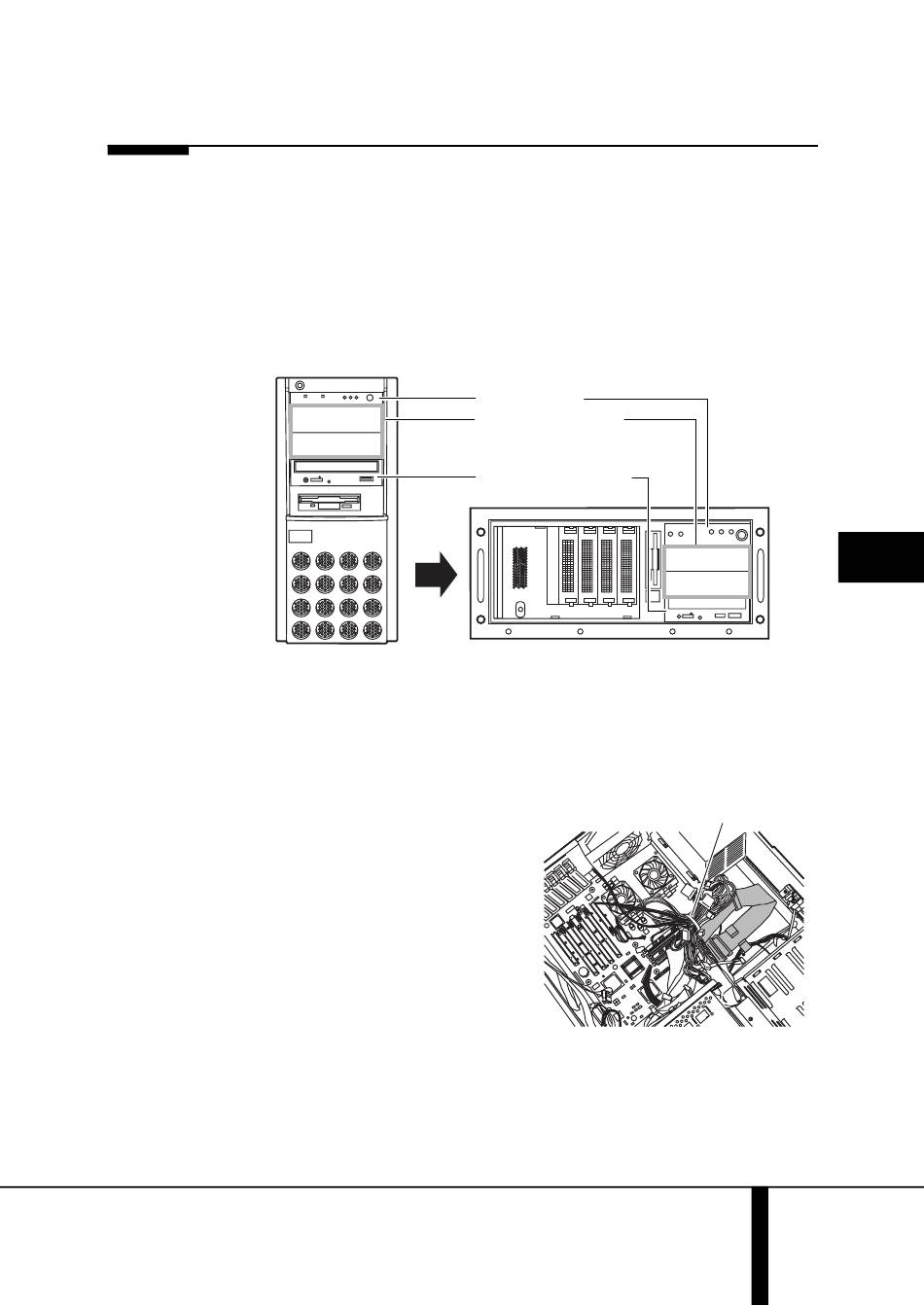

See the following diagram to identify their new orientation:
1
Disconnect all cable connections from the CD-ROM(DVD-ROM) drive
and 5-inch internal devices.
2
Separate only the operator panel cables from the bundle.
Operator panel
5-inch internal devices
or blank units
CD-ROM or DVD-ROM
drive
[Before]
9 Repositioning the devices
[After]
[Inside of the server]
Cable tie
E
17
