Quick Start Guide
®
Chroma-Q
Space Force™
Manual Yoke Installation
For Use With:
Space Force Variable w Bridle: CHSFPV (Model: 650-1000)
Space Force Variable w Bridle & LumenRadio Installed: CHINSIK15W (Model: 650-1500)
Version 1.1
Space Force Manual Yoke Installation Quick Start Guide V1.1
Part No. CHSPFSY
Model: 650-0903
Advertisement
Table of Contents
Related Manuals for Chroma pace Force CHSFPV
Summary of Contents for Chroma pace Force CHSFPV

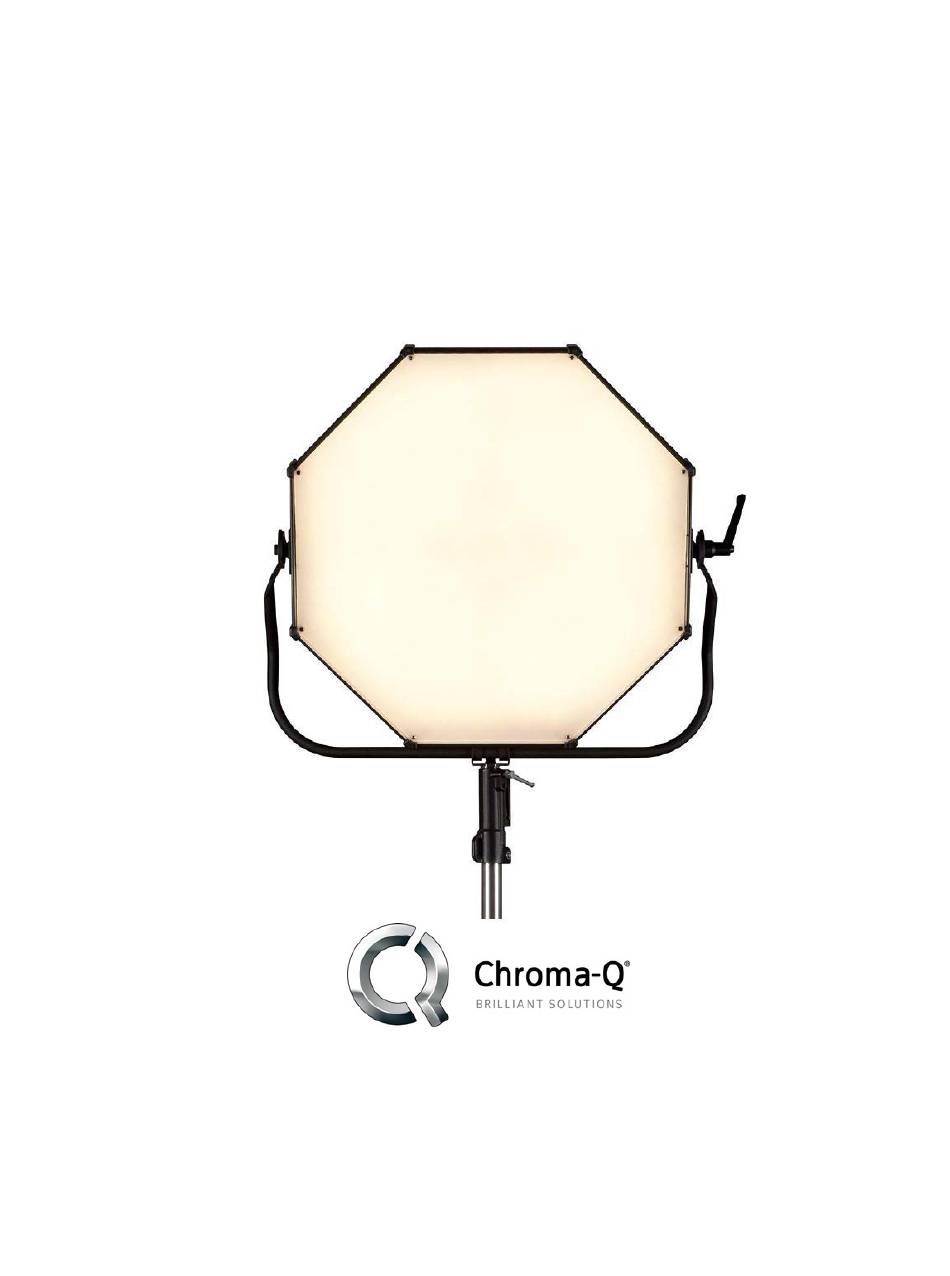

- Page 1 Quick Start Guide ® Chroma-Q Space Force™ Manual Yoke Installation For Use With: Space Force Variable w Bridle: CHSFPV (Model: 650-1000) Space Force Variable w Bridle & LumenRadio Installed: CHINSIK15W (Model: 650-1500) Version 1.1 Space Force Manual Yoke Installation Quick Start Guide V1.1 Part No.
- Page 2 Suggestions of use shall not be taken as inducements to infringe any patent. Chroma-Q sole warranty is that the product will meet the Chroma-Q sales specifications in effect at the time of shipment. Your exclusive remedy for breach of such warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted.
- Page 3 3. Installation Guide Procedure: PZ1 x 80mm screw driver. Install the Brackets on both sides of space force unit using Tighten the screws to make a solid connection. On the yoke arm with the 12mm hole, place the Rubber gasket in between the Yoke and the Side bracket. Place the Rubber gasket in parallel to the Side bracket and then place the Yoke opposite and in line with it.
- Page 4 1 x Bushing Flanged 12MM BLK in slot and insert the HH cap screw using a wrench. Tighten the screw completely to make a solid connection. Chroma-Q Space force with Offset Yoke Accessory Space Force Manual Yoke Installation Quick Start Guide V1.1 Part No.
- Page 5 Space Force Manual Yoke Installation Quick Start Guide V1.1 Part No. CHSPFSY Model: 650-0903...
