- Page 1 InlIne reversIble fan altero 150 T USER’S MANUAL...
-
Page 2: Table Of Contents
Warranty card ..................................11 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the Altero 150 T unit and all its modifications. -
Page 3: Purpose
150 T www.blaubergventilatoren.de • Do not bend the power cable. • Avoid damaging the power cable. • Do not put any foreign objects on the power cable. • Do not lay the power cable of the unit in close proximity to heating equipment. -
Page 4: Delivery Set
NAME NUMBER 1 pc. User’s manual 1 pc. Packing box 1 pc. DESIGNATION KEY ALTERO 150 T 120/60 Designation example: Inline reversible fan Spigot diameter, mm Options Т — timer Mains parameters, V/Hz _ — 230/50 (by default) 120/60 — 120 V/50 Hz TECHNICAL DATA The unit is rated as a class II electric appliance. -
Page 5: Unit Design And Operating Principle

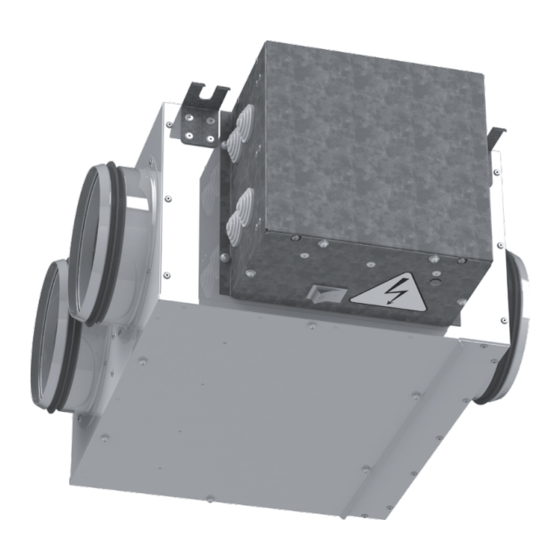

150 T www.blaubergventilatoren.de UNIT DESIGN AND OPERATING PRINCIPLE The metal casing of the Altero unit is equipped with two fans and a damper with an electric actuator. The damper closes the supply or exhaust ducts, depending on the fan operation mode - “supply” or “exhaust”. The damper and fans are controlled by the controller. -
Page 6: Installation And Set-Up
150 T www.blaubergventilatoren.de INSTALLATION AND SET-UP BEFORE MOUNTING MAKE SURE THE CASING DOES NOT CONTAIN ANY FOREIGN OBJECTS (E.G. FOIL, PAPER). WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. The fan is designed for suspended ceiling mounting, wall mounting is also allowed at any angle relative to the fan axis. The fan mounting is carried out at 4 points with mounting brackets. -
Page 7: Connection To Power Mains
150 T www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. -
Page 8: Unit Control
150 T www.blaubergventilatoren.de UNIT CONTROL The fan air flow in the Supply mode is controlled by means of a DIP switch with an integrated cyclic timer, alternating time of operation and downtime of the fan every 60 min. The DIP switch is located on the control board. -
Page 9: Troubleshooting
150 T www.blaubergventilatoren.de Access to the fan unit Remove the screws on the door and remove the door. Remove the three butterfly bolts on the inner side wall, pull the cord to move the fans and disconnect the connector from the control unit. Disconnect the fan completely. -
Page 10: Manufacturer's Warranty
150 T www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 11: Certificate Of Acceptance
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. Customer’s Signature Seller’s Stamp INSTALLATION CERTIFICATE The Altero 150 T __________ unit is installed pursuant to the requirements stated in the present user's manual. Company name Address Phone Number Installation Technician’s Full Name... - Page 12 www.blaubergventilatoren.de B184EN-03...
